Diagnostic Procedure

CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten two ground screws on the body. Refer to "Ground Inspection ".

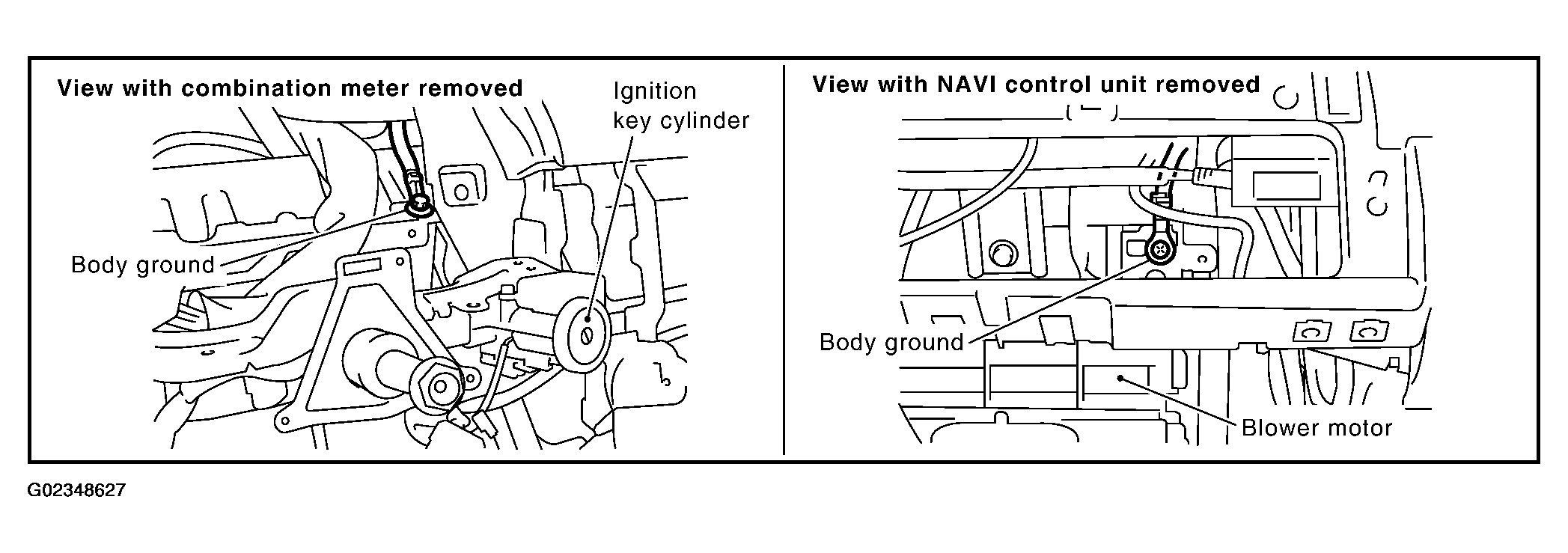

  Fig 1: Ground Locations
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 2.
2. NG: Repair or replace ground connections.
CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR CONNECTOR FOR WATER
1. Disconnect EVAP control system pressure sensor harness connector.

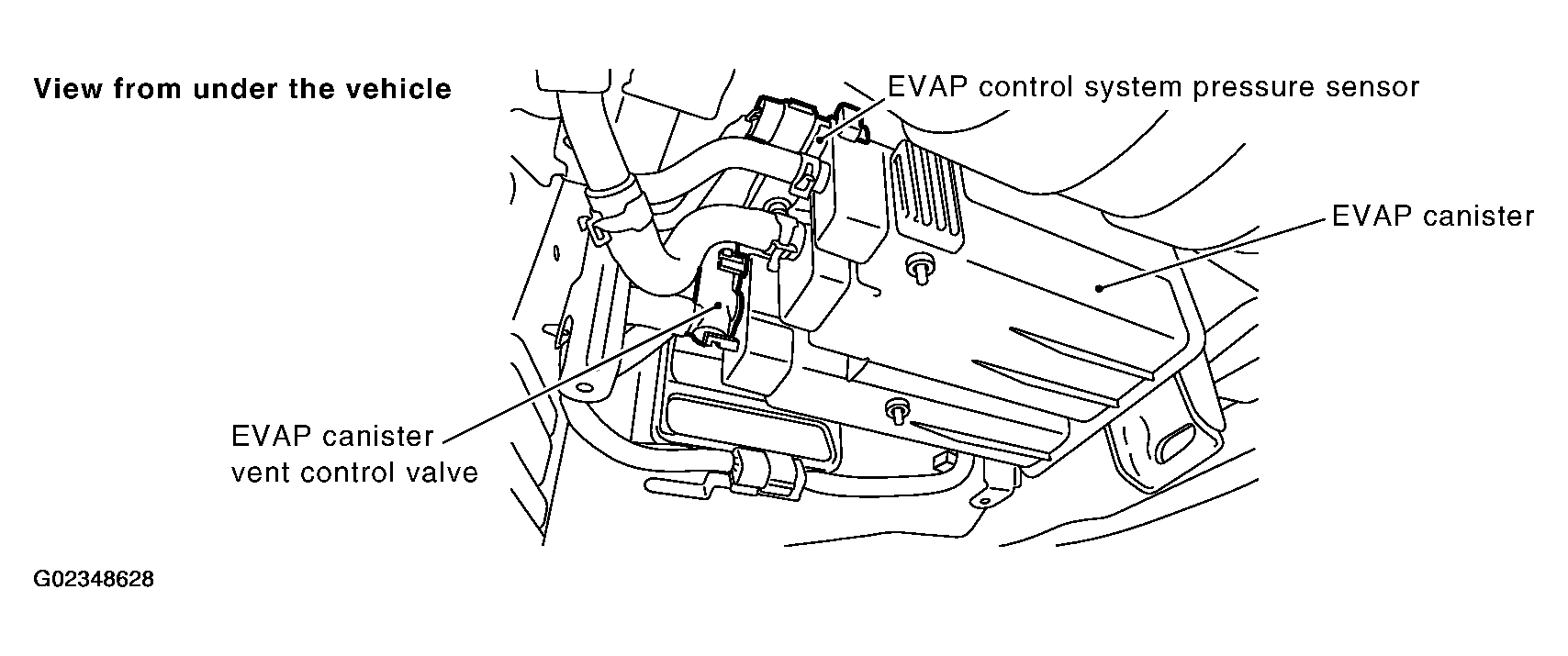

  Fig 2: Disconnecting EVAP Control System Pressure Sensor Harness Connector
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Check sensor harness connector for water.
  Water should not exist.
OK or NG
1. OK: GO TO 3.
2. NG: Repair or replace harness connector.
CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR
Refer to "Component Inspection ".

OK or NG
1. OK: GO TO 4.
2. NG: Replace EVAP control system pressure sensor.
CHECK INTERMITTENT INCIDENT
Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

Refer to "Wiring Diagram ".
1. : INSPECTION END
