CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

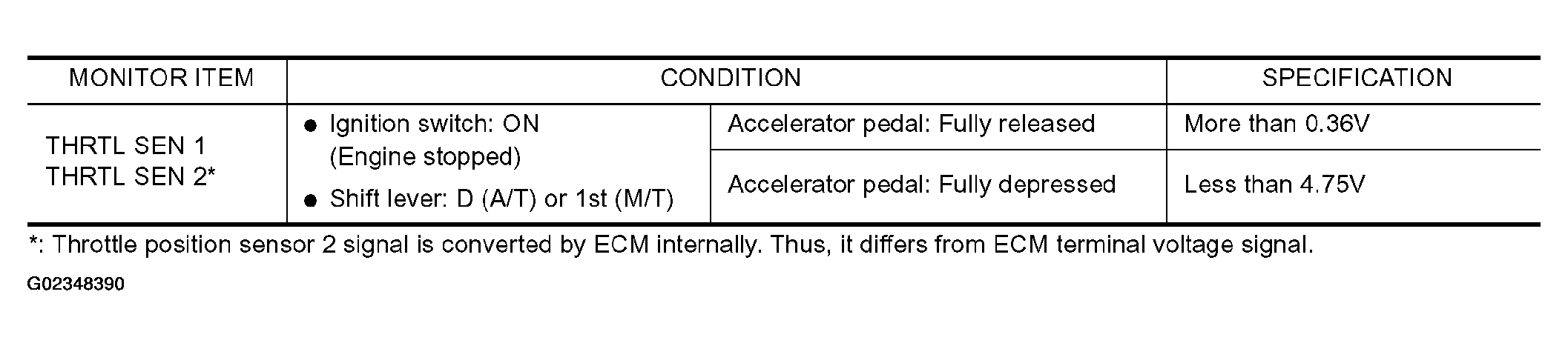

Fig 1: DTC P0122, P0123 TP Sensor CONSULT-II Reference Value Table In Data Monitor Mode

Courtesy of NISSAN MOTOR CO., U.S.A.
