Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System - Sedan
>>
Trouble Diagnosis
>>
CONSULT-II Functions
>>
Data Monitor
>>
Display Item List
Display Item List

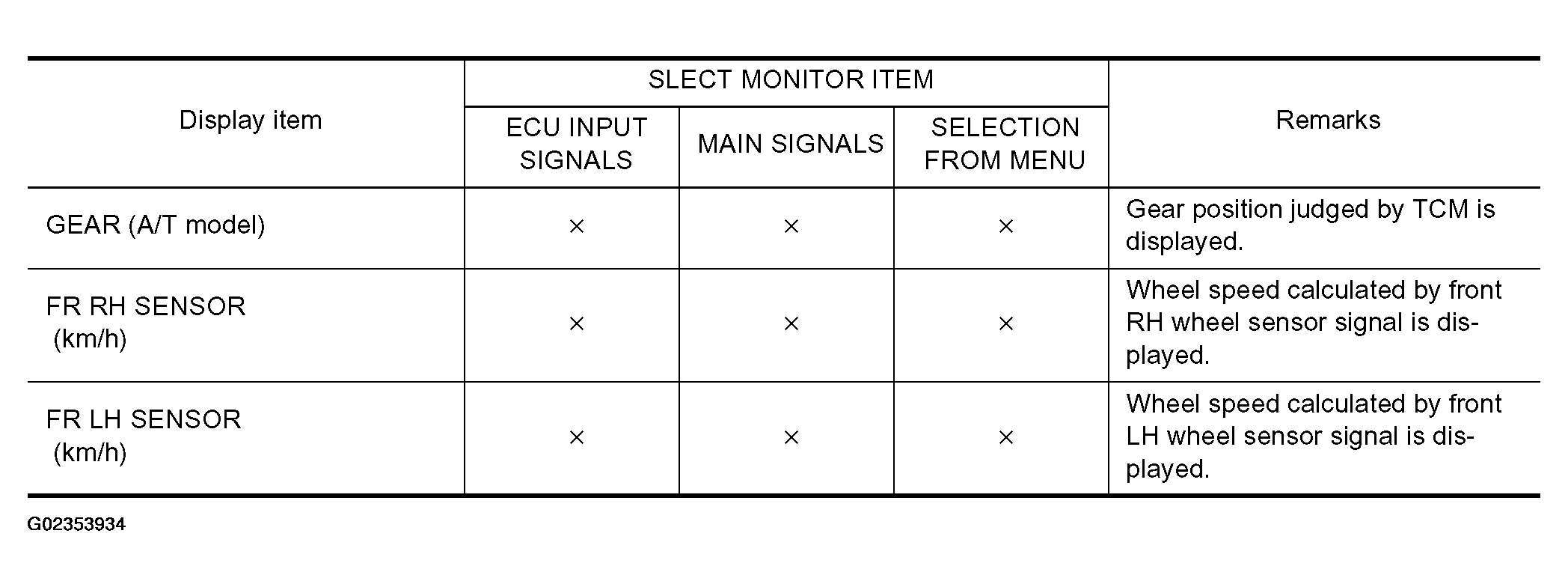

Fig 1: Data Monitor - Display Item List (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Data Monitor - Display Item List (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Data Monitor - Display Item List (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
