Operation Procedure

CAUTION:

Do not perform active test while driving vehicle.
Make sure to completely bleed air from brake system.
The active test cannot be performed with the ABS warning lamp, VDC indicator lamp and SLIP indicator lamp are on.

Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector and start engine.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which perform CAN communication
Touch "START" on display.
Touch "ABS" and "ACTIVE TEST".

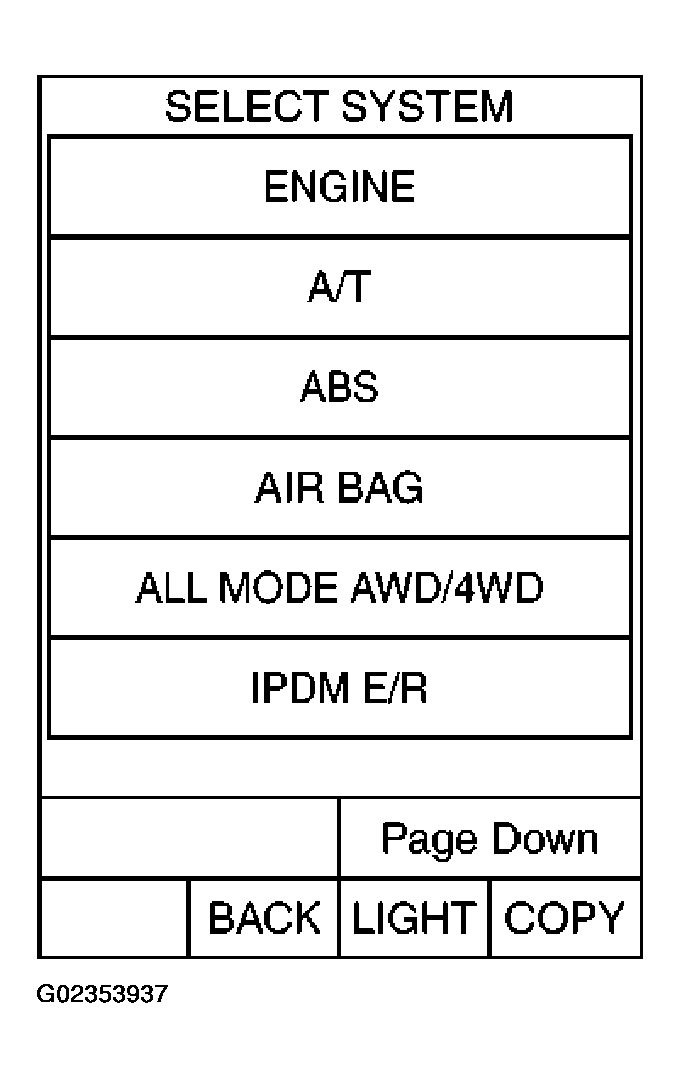

Fig 1: CONSULT-II - SELECT SYSTEM
Courtesy of NISSAN MOTOR CO., U.S.A.

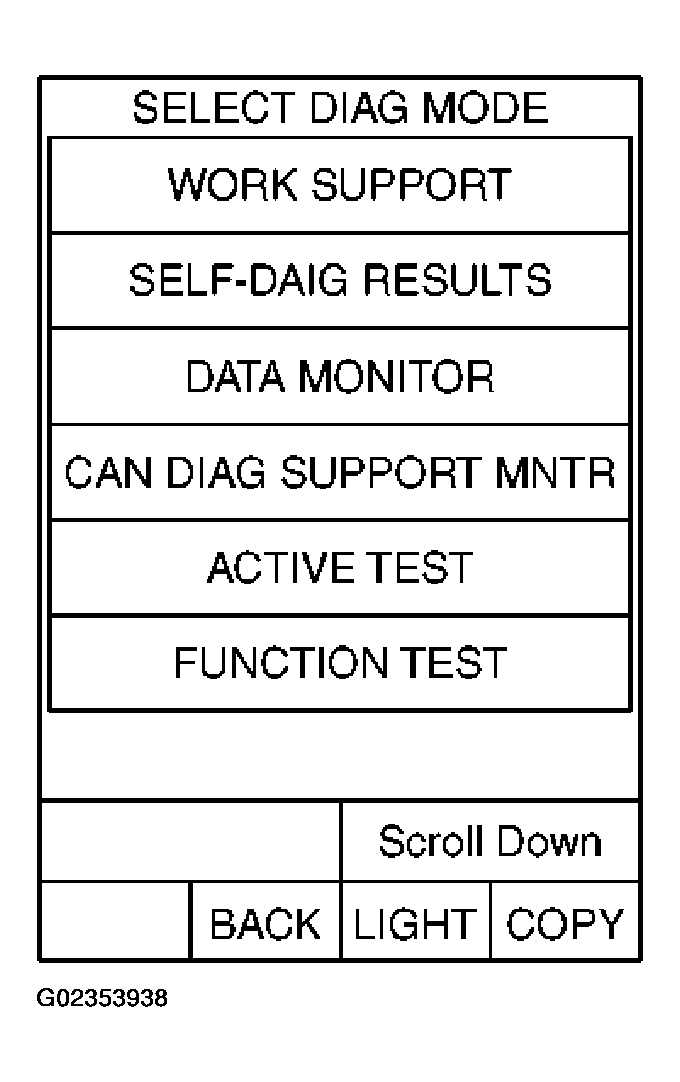

Fig 2: CONSULT-II - SELECT DIAG MODE
Courtesy of NISSAN MOTOR CO., U.S.A.
Test item selection screen is displayed.
Touch necessary test item.

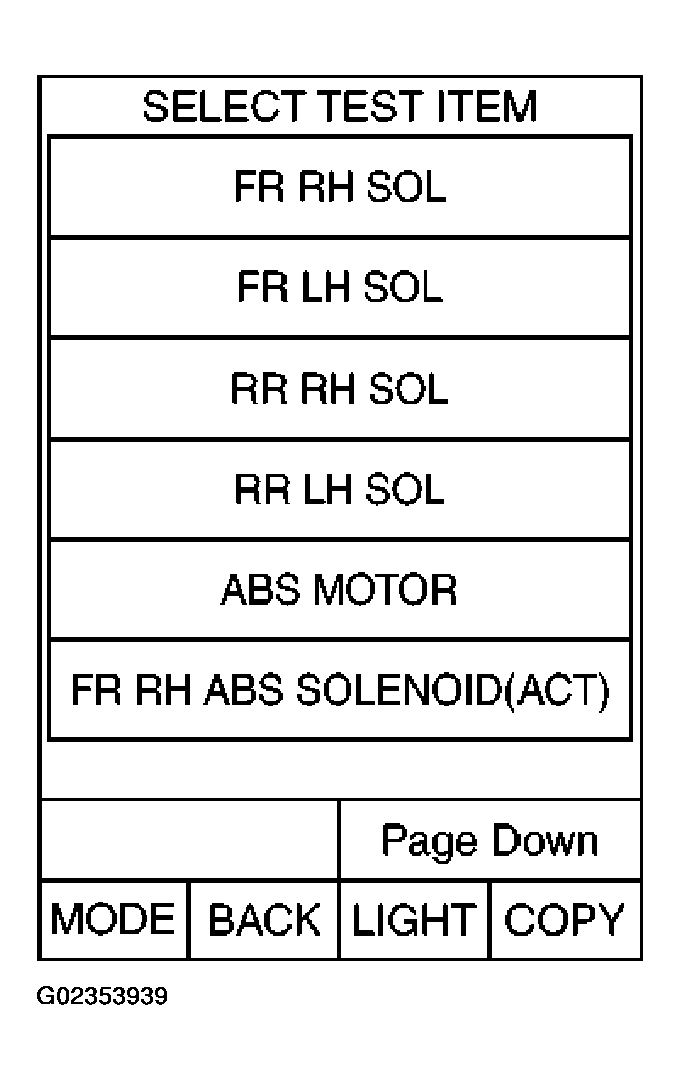

Fig 3: CONSULT-II - SELECT TEST ITEM
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START" with "MAIN SIGNALS" line inverted.

Fig 4: CONSULT-II - SELECT MONITOR ITEM
Courtesy of NISSAN MOTOR CO., U.S.A.
Active test screen is displayed.

Fig 5: CONSULT-II - ACTIVE TEST
Courtesy of NISSAN MOTOR CO., U.S.A.
