Removal and Installation: Removal

  1. Remove spiral cable assembly. Refer to SPIRAL CABLE .
  2. Remove steering angle sensor from spiral cable assembly.

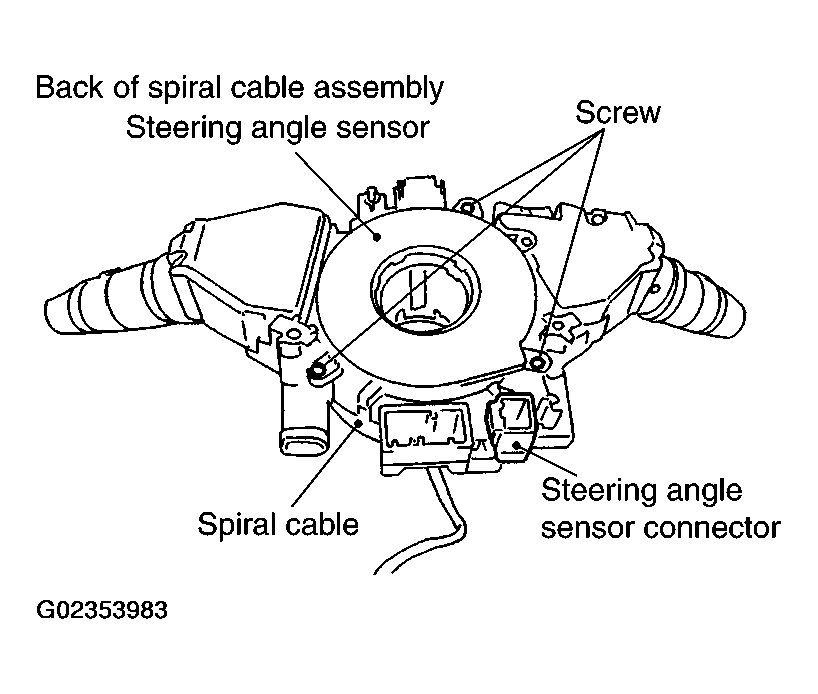

    Fig 1: Removing/Installing Steering Angle Sensor
    G02353983Courtesy of NISSAN MOTOR CO., U.S.A.
