Home >> Infiniti >> 2005 >> G35 x >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control System - Sedan >> G-Sensor >> Removal and Installation >> Removal >> M/T Model

M/T Model

  1. Remove center console. Refer to REMOVAL , "(Y) Center Console".
  2. Disconnect harness connector.
  3. Remove installation bolts. Remove yaw rate/side G sensor.
    CAUTION:
    • Do not drop or strike yaw rate/side G sensor, because it has little endurance to impact.
    • Do not use power tool etc., because yaw rate/side G sensor is sensitive for the impact.

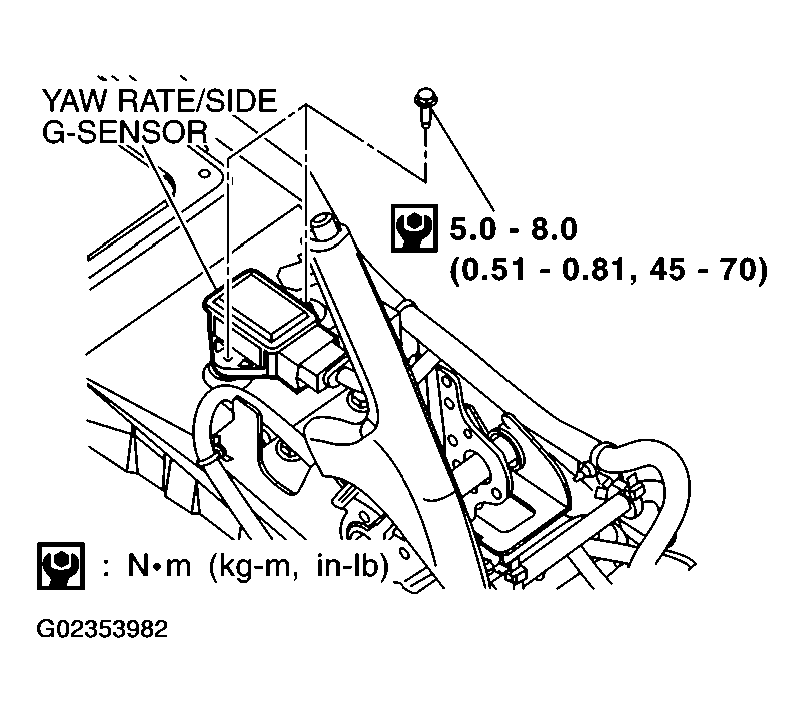

      Fig 1: G-Sensor (M/T Model) With Torque Specifications
      G02353982Courtesy of NISSAN MOTOR CO., U.S.A.
