Power Window System - Sedan
>>
Power Window System
>>
Schematic/With Front Left And Right Power Window Anti-Pinch System
Schematic/With Front Left And Right Power Window Anti-Pinch System

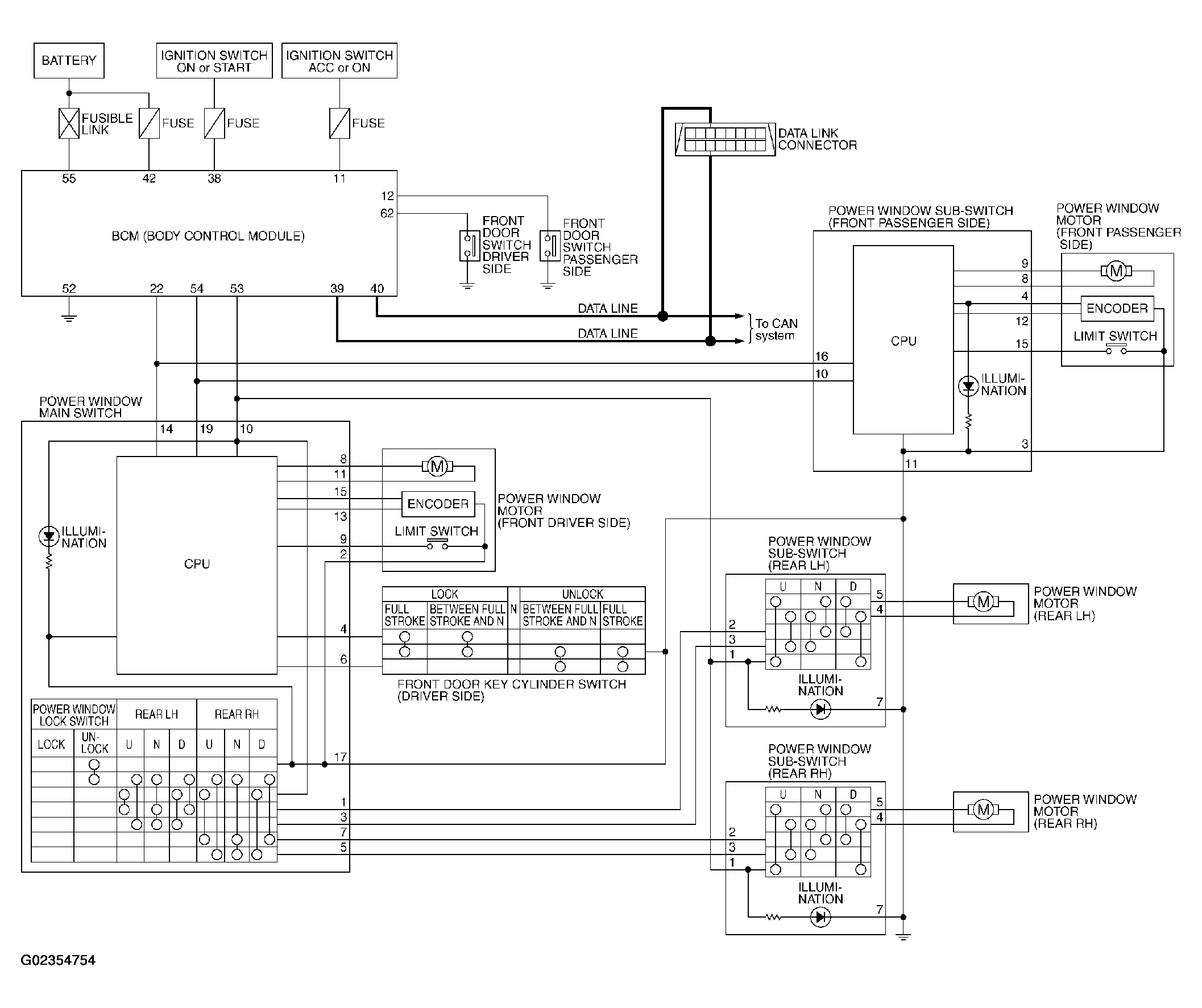

Fig 1: Front Left And Right Power Window Anti-Pinch System - Schematic
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
