Remote Keyless Entry System: Schematic

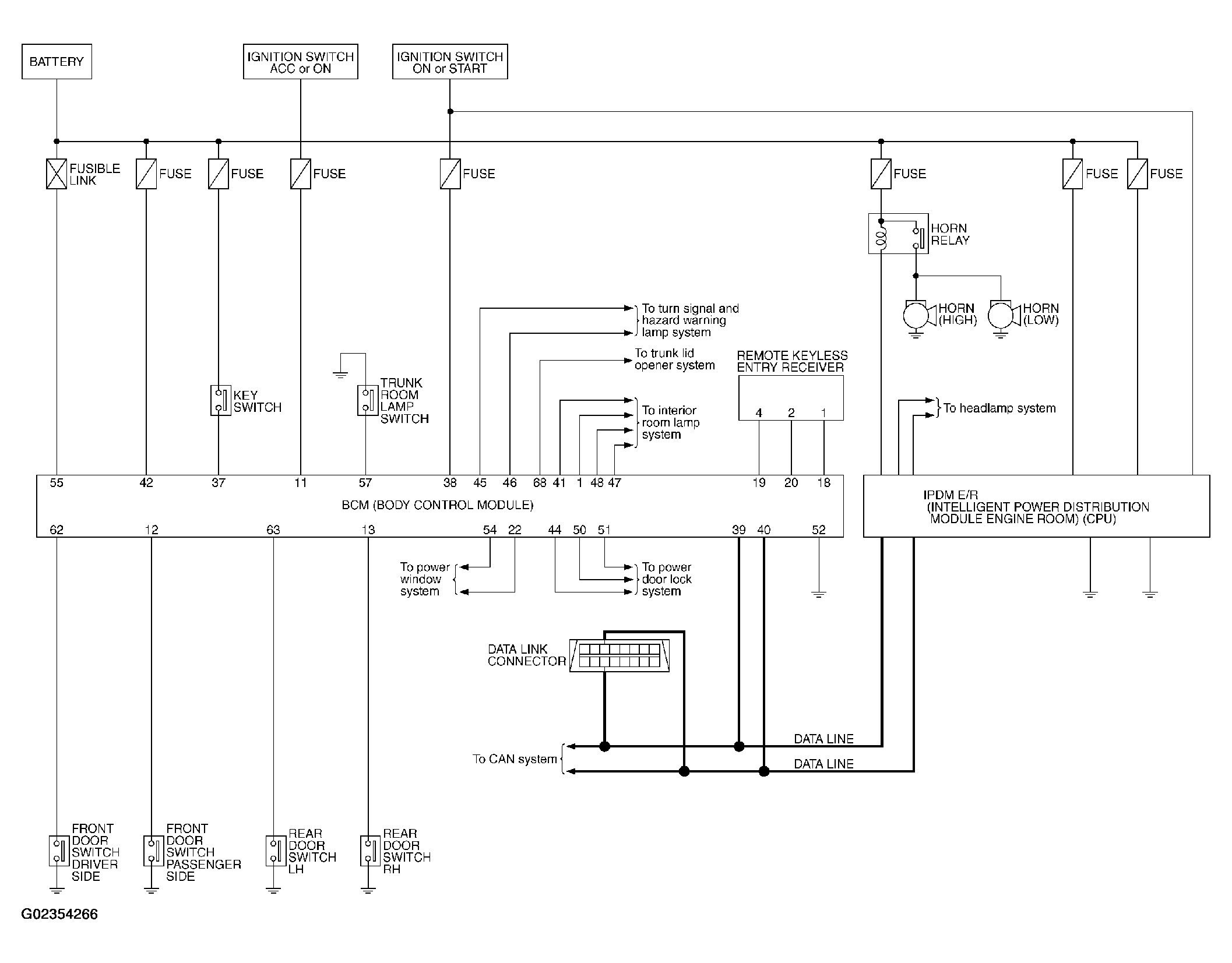

Fig 1: Schematic

G02354266

Courtesy of NISSAN MOTOR CO., U.S.A.
