Check Key Fob Battery and Function

CHECK KEY FOB BATTERY
1. Remove key fob battery. Refer to BL-84, "Key Fob Battery Replacement".
2. Measure voltage between battery positive and negative terminals, (+) and (-).
  Voltage: 2.5 - 3.0V

  NOTE: Key fob does not function if battery is not set correctly.

  Fig 1: Measuring Voltage Between Battery Positive And Negative Terminals
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 2.
2. NG: Replace battery.
CHECK KEY FOB FUNCTION
With CONSULT-II

Check key fob function in "DATA MONITOR" mode with CONSULT-II. When pushing each button of key fob, the corresponding monitor item should be turned as follows.

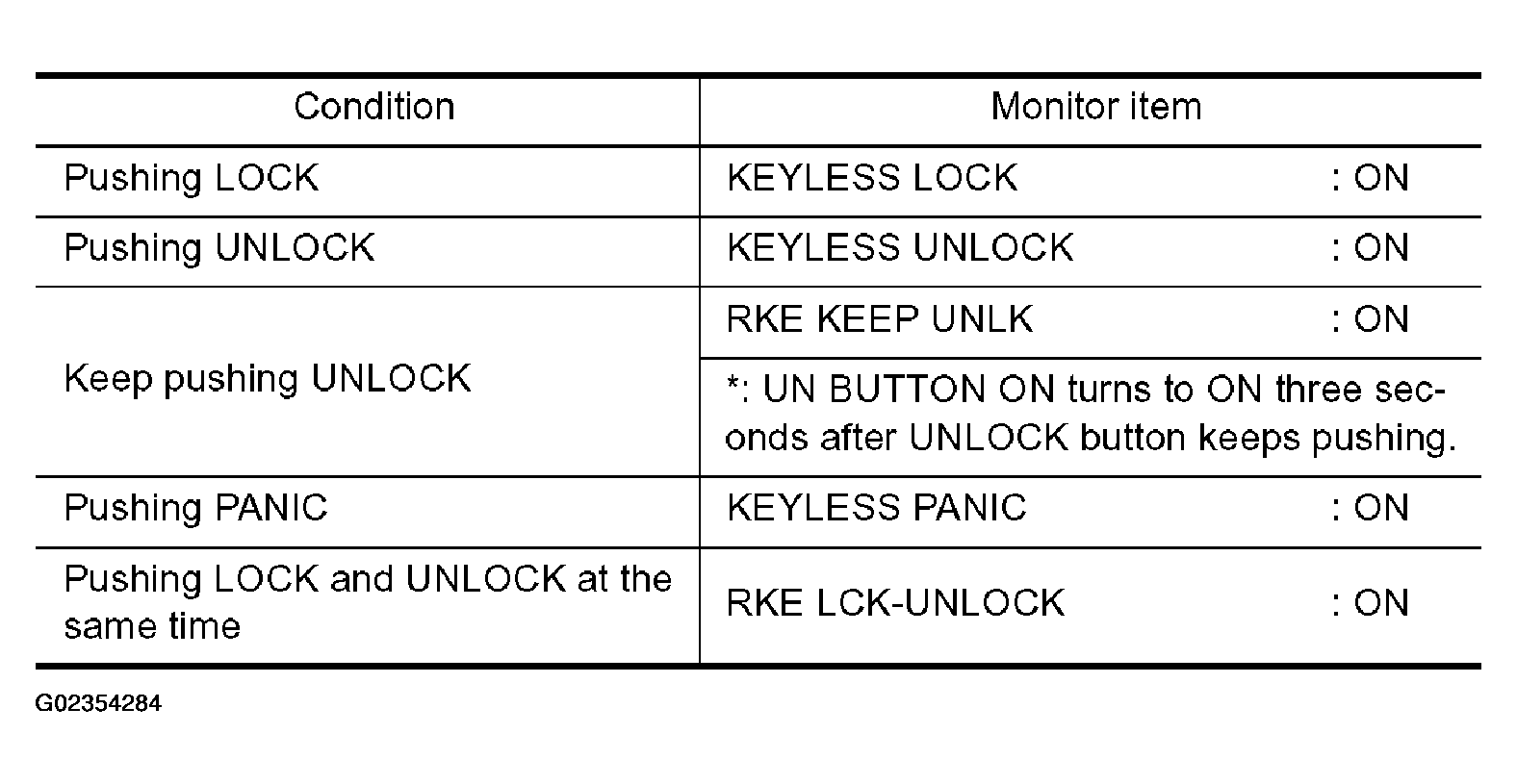

Fig 2: Data Monitor Items Table
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: CONSULT-II Data Monitor Display
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: Keyfob is OK.
2. NG: Replace key fob.
