Operation Procedure

  1. Perform "CONSULT-II SETTING PROCEDURE". Refer to "CONSULT-II SETTING PROCEDURE ".
  2. Touch "DATA MONITOR".
    NOTE: When malfunctions detected, CONSULT-II performs "REAL-TIME DIAGNOSIS". Also, any malfunction detected while in this mode will be displayed at real time.

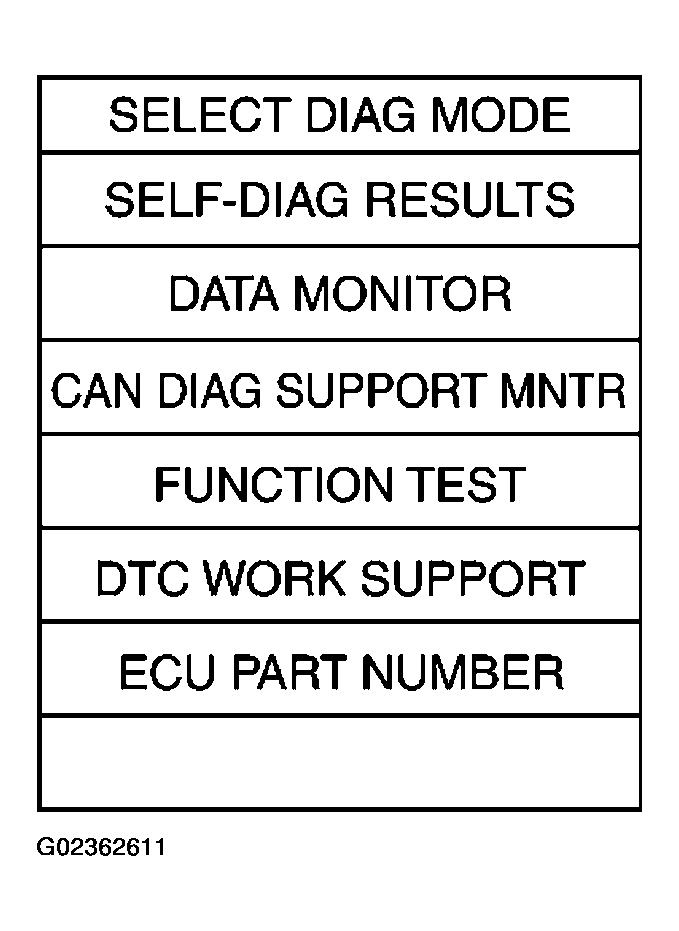

    Fig 1: Identifying Display - Select Diag Mode
    G02362611Courtesy of NISSAN MOTOR CO., U.S.A.
