Direct Clutch: Assembly

  1. Install drive plates, driven plates and retaining plate in direct clutch drum.
    CAUTION: Take care with order of plates.
  2. Using a flat-bladed screwdriver, install snap ring in direct clutch drum.

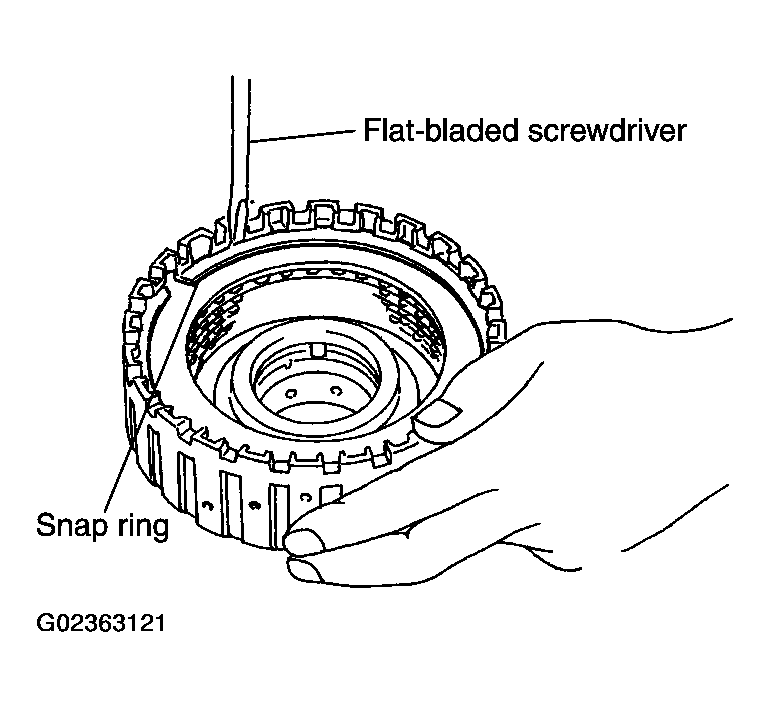

    Fig 1: Installing Snap Ring In Direct Clutch Drum
    G02363121Courtesy of NISSAN MOTOR CO., U.S.A.
