Oil Channel

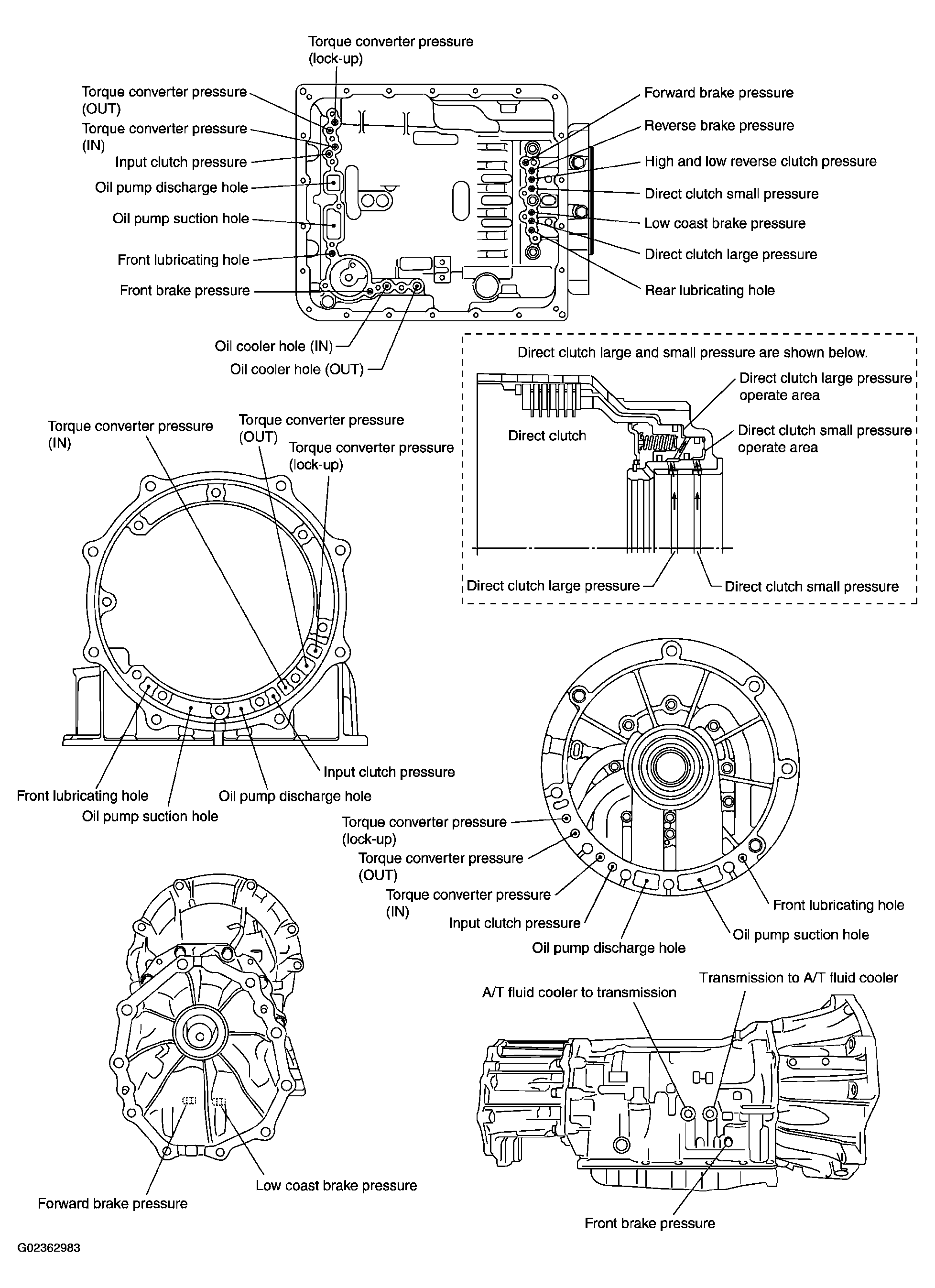

Fig 1: Identifying Oil Channel - 2WD Models
Courtesy of NISSAN MOTOR CO., U.S.A.

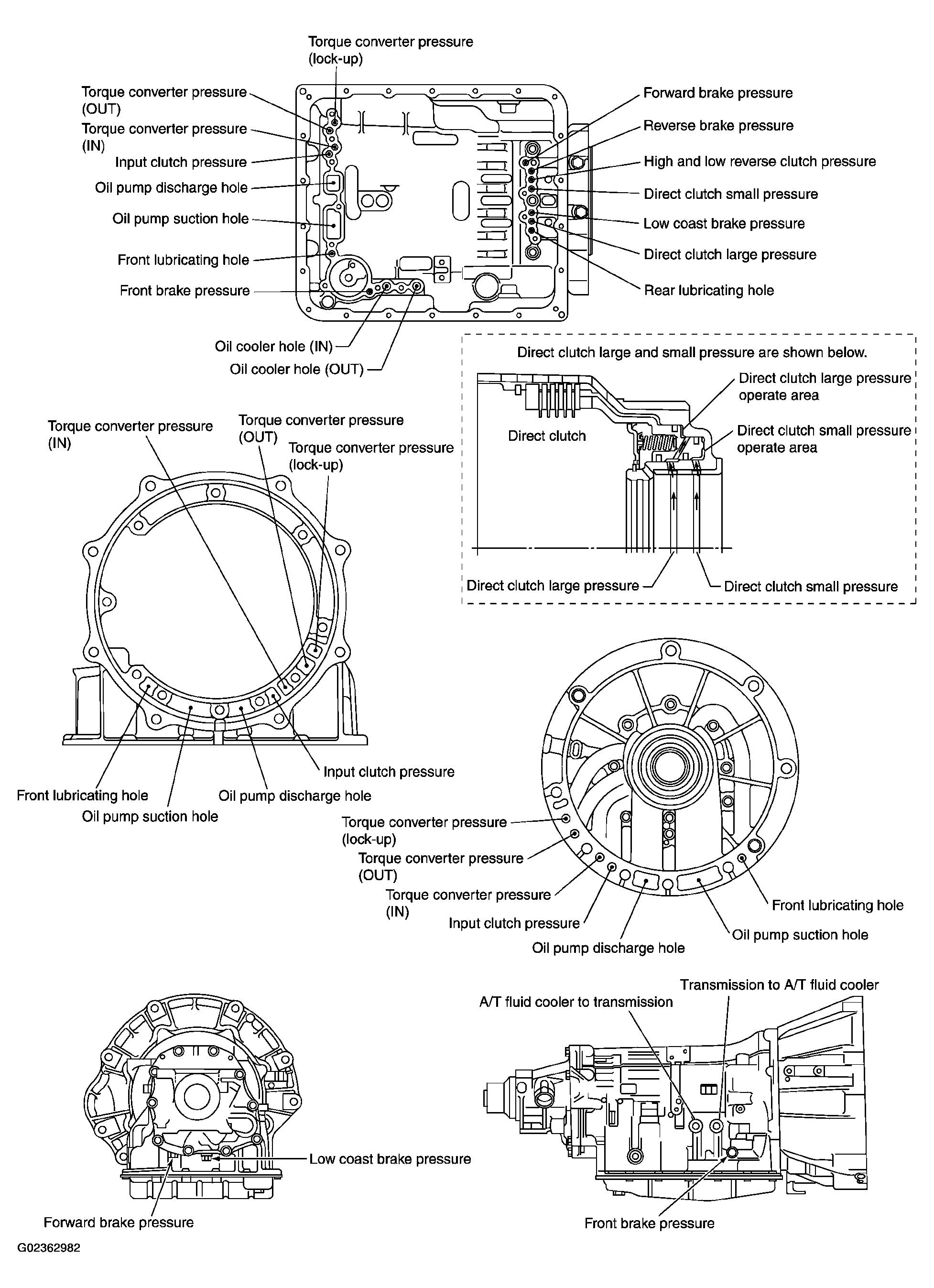

Fig 2: Identifying Oil Channel - AWD Models
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
