Parking Components (2WD Models Only): Installation

  1. As shown in the right figure illustration, use a drift to drive rear oil seal into the rear extension until it is flush.
    CAUTION:
    • Apply ATF to rear oil seal.
    • Do not reuse rear oil seal.
    Fig 1: Installing Rear Oil Seal
    G02362929Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install return spring to parking pawl.
    Fig 2: Installing Return Spring To Parking Pawl
    G02362930Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install parking pawl (with return spring) and pawl shaft to rear extension.
    Fig 3: Installing Parking Pawl
    G02362931Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install parking actuator support to rear extension.
  5. Install needle bearing to rear extension.
    CAUTION: Apply petroleum jelly to needle bearing.
    Fig 4: Locating Parking Actuator Support
    G02362932Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Install seal rings in output shaft.
    CAUTION:
    • Do not reuse seal rings.
    • Apply petroleum jelly to seal rings.
    Fig 5: Installing Seal Rings In Output Shaft
    G02362933Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install parking gear to output shaft
    Fig 6: Installing Parking Gear To Output Shaft
    G02362934Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Install output shaft to transmission case.

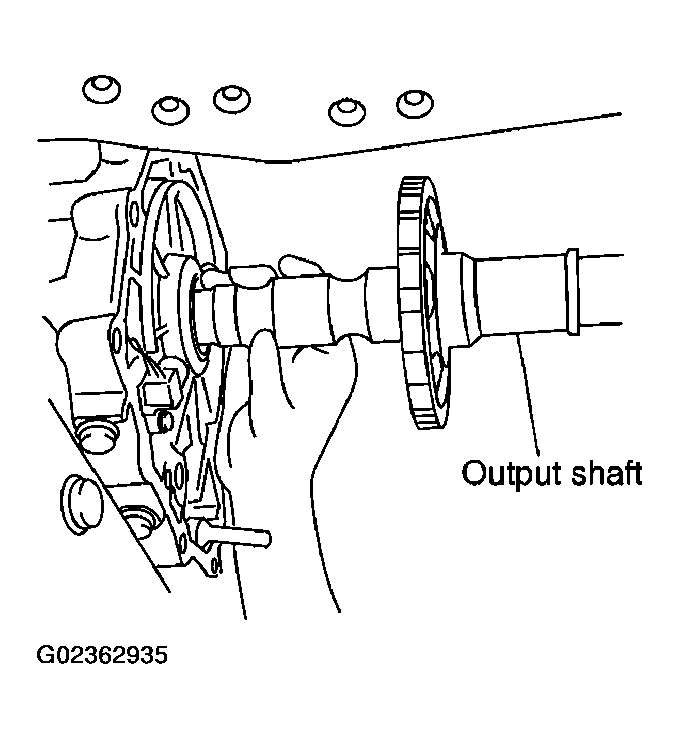

    Fig 7: Installing Output Shaft To Transmission Case
    G02362935Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install bearing race to output shaft.

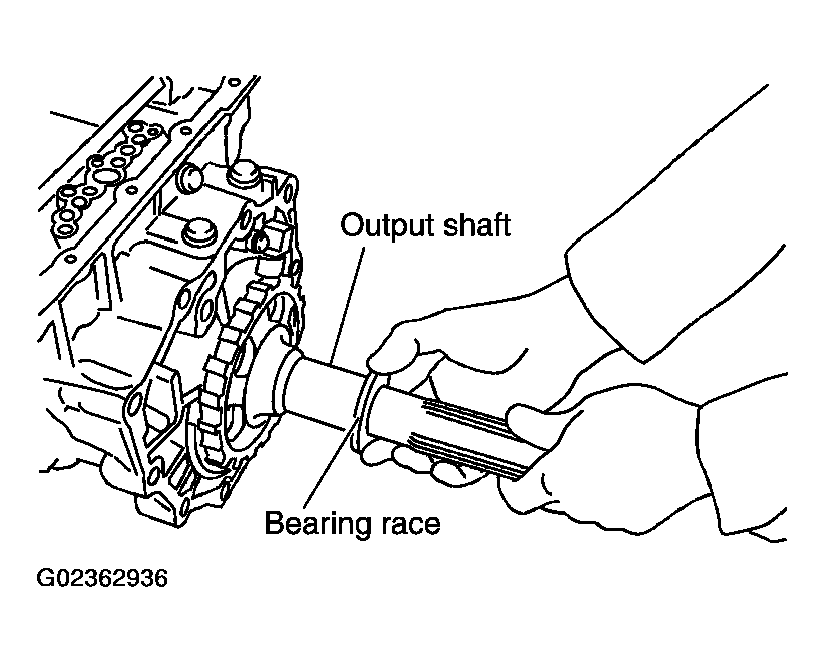

    Fig 8: Installing Bearing Race To Output Shaft
    G02362936Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Apply recommended sealant (Genuine Anaerobic Liquid Gasket or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".) to rear extension assembly as shown in the figure.
    CAUTION: Completely remove all moisture, oil and old sealant, etc. from the transmission case and rear extension assembly mounting surfaces.

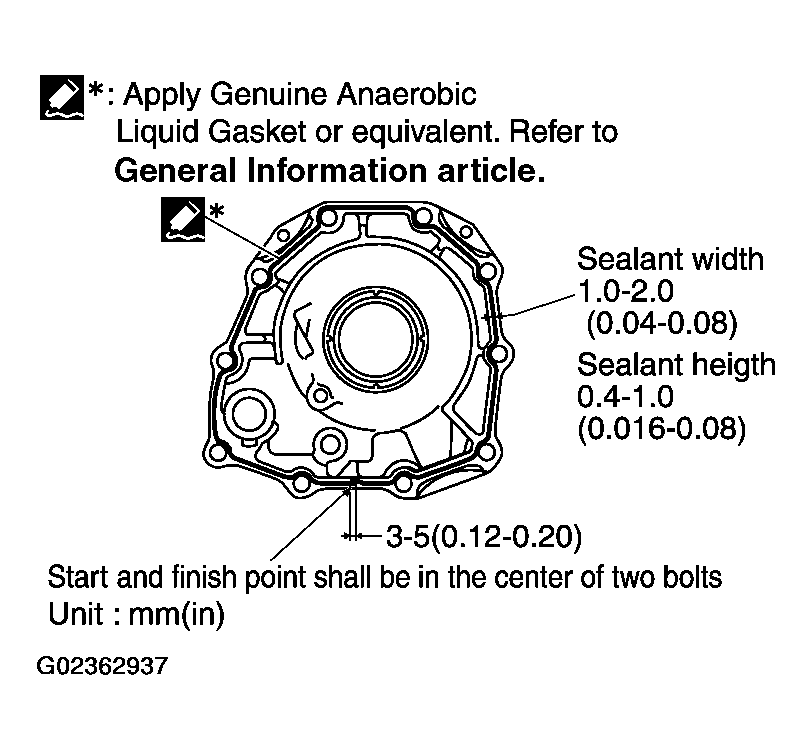

    Fig 9: Applying Sealant
    G02362937Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Install rear extension assembly to transmission case. (With needle bearing.)
    CAUTION: Insert the tip of parking rod between the parking pawl and the parking actuator support when assembling the rear extension assembly.

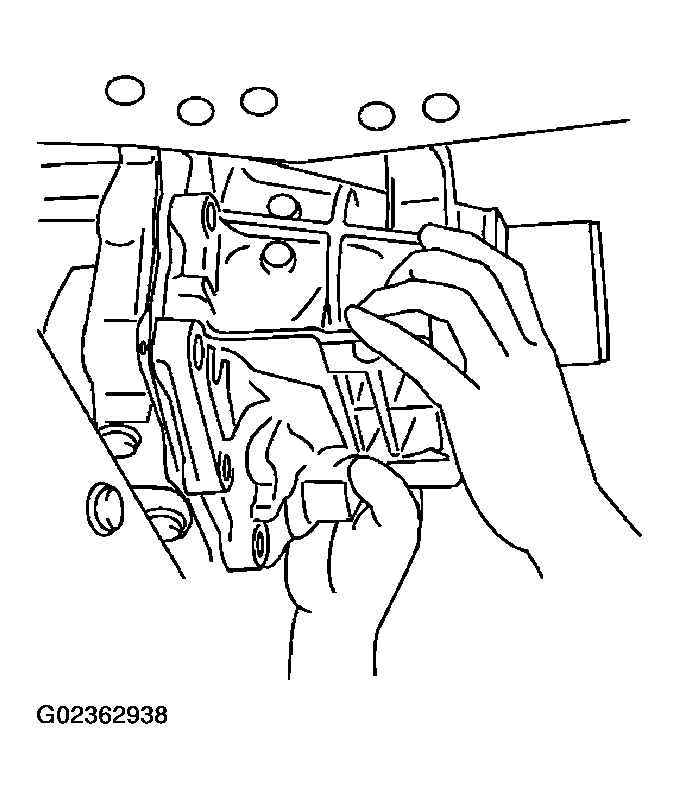

    Fig 10: Installing Rear Extension Assembly
    G02362938Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Tighten rear extension assembly mounting bolts to specified torque.
    CAUTION: Do not reuse self-sealing bolt.
    1. Rear extension assembly mounting bolt
      1. : 52 N.m (5.3 Kg-m, 38 ft-lb)
    2. Self-sealing bolt
      1. : 61 N.m (6.2 Kg-m, 45 ft-lb)

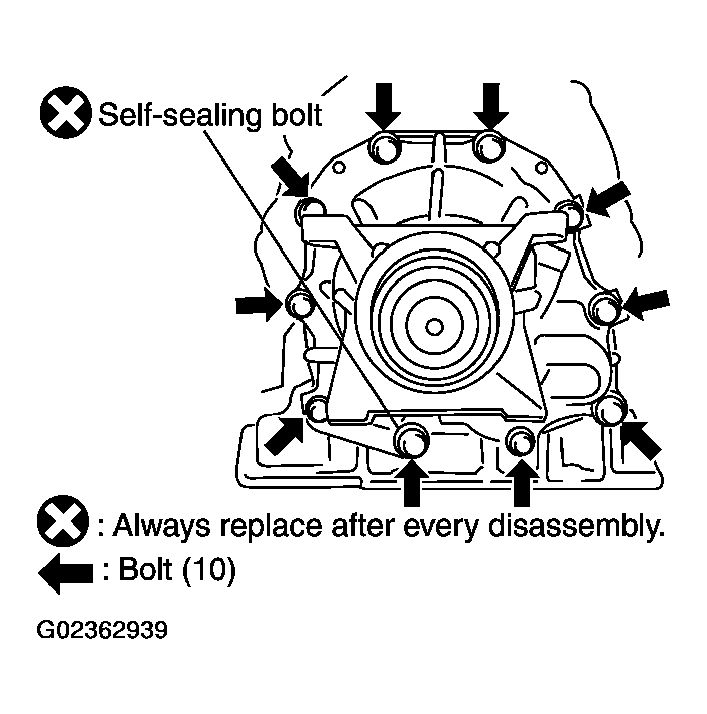

    Fig 11: Locating Bolt
    G02362939Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Install engine rear member. Refer to "REMOVAL AND INSTALLATION (2WD MODELS) ".
  14. Install control rod. Refer to "CONTROL ROD REMOVAL AND INSTALLATION ".
  15. Install rear propeller shaft. Refer to "REMOVAL AND INSTALLATION ".
  16. Install exhaust front tube and center muffler. Refer to "REMOVAL AND INSTALLATION ".
  17. Install drain plug in oil pan.
    CAUTION: Do not reuse drain plug gasket.
    1. : 34 N.m (3.5 kg-m, 25 ft-lb)
  18. Pour ATF into transmission assembly. Refer to "CHANGING A/T FLUID ".
