Home >> Infiniti >> 2005 >> FX45 >> Repair and Diagnosis >> Transmission >> Automatic Transmission >> On-Vehicle Service >> Control Valve with TCM and A/T Fluid Temperature Sensor 2 >> Components

Control Valve with TCM and A/T Fluid Temperature Sensor 2: Components

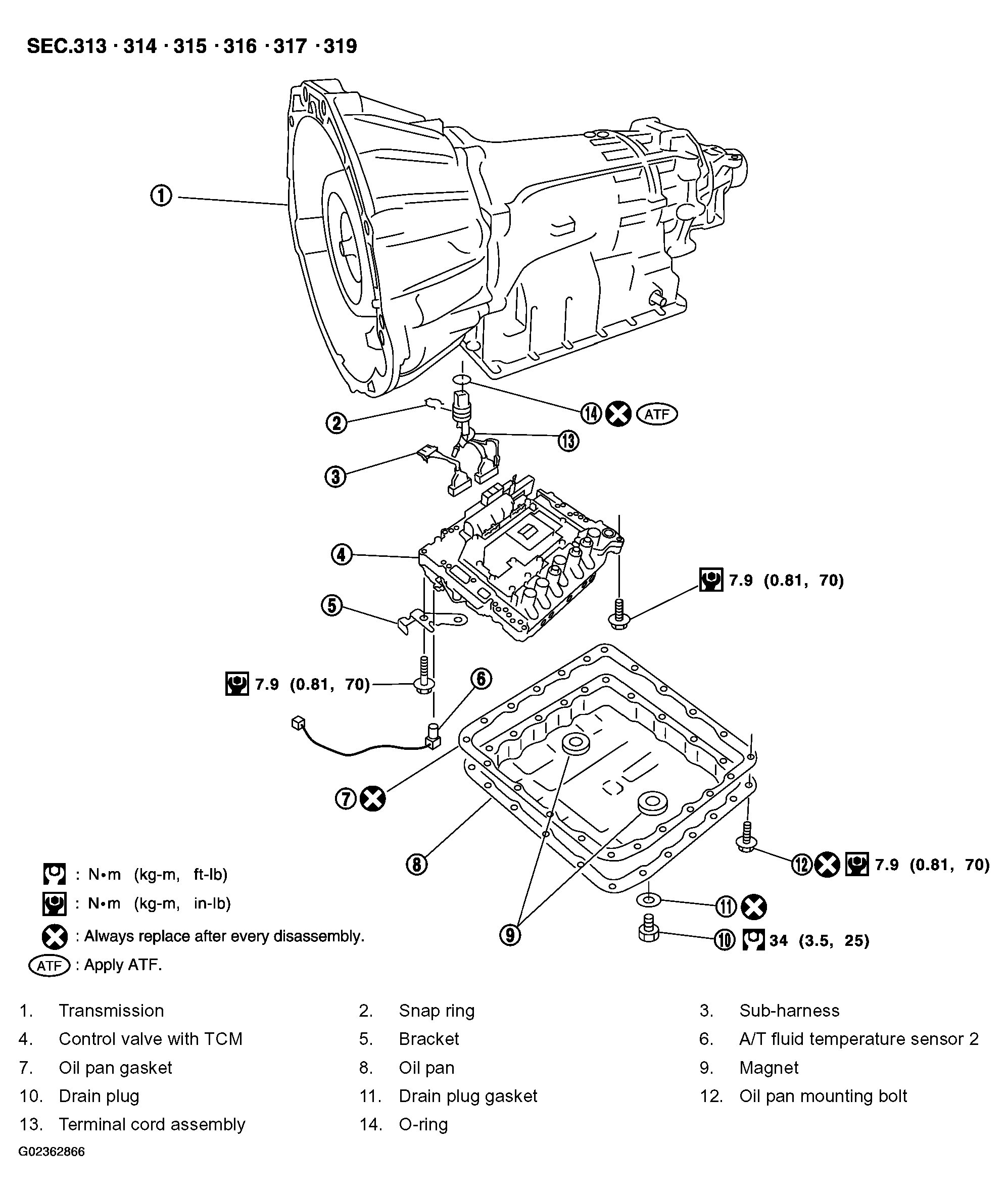

Fig 1: Exploded View Of Control Valve With TCM With Torque Specifications
G02362866Courtesy of NISSAN MOTOR CO., U.S.A.
