A/T Interlock Coupling Pattern Table

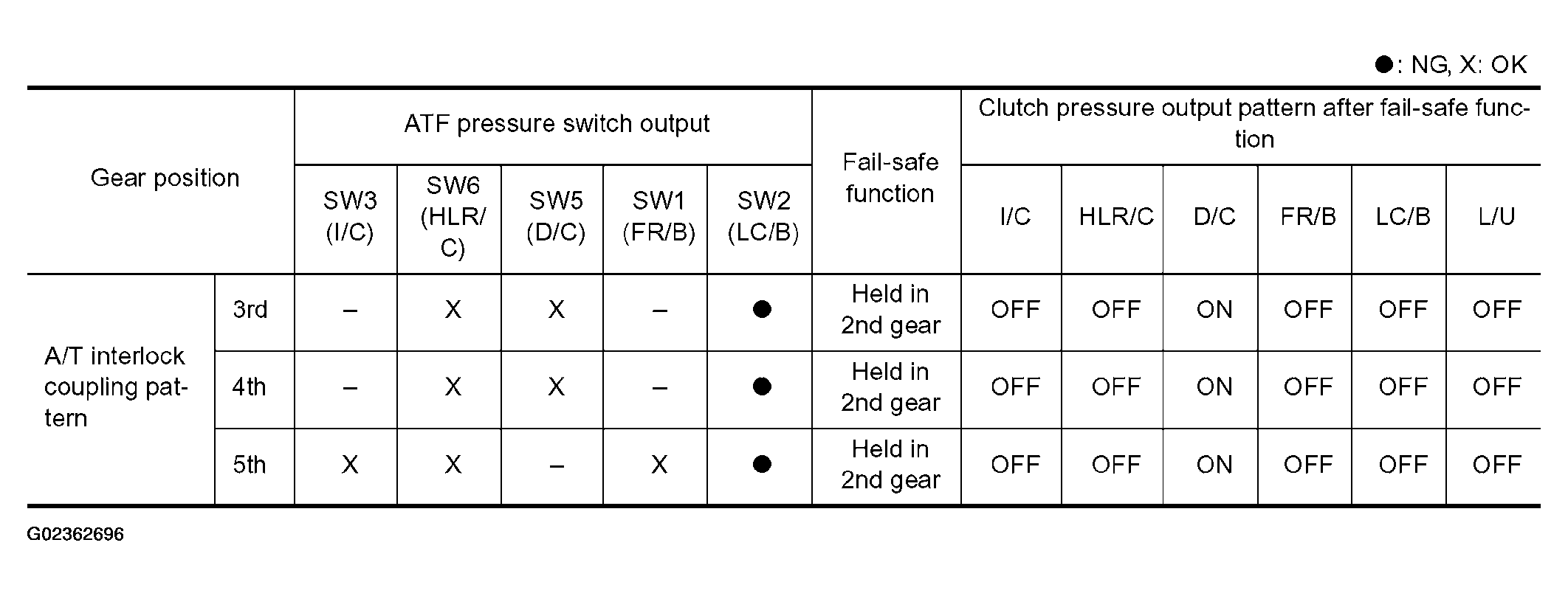

Fig 1: A/T Interlock Coupling Pattern Table

G02362696

Courtesy of NISSAN MOTOR CO., U.S.A.
