Diagnostic Procedure

  1. CHECK CAN COMMUNICATION LINE

    Perform the self-diagnosis. Refer to "SELF-DIAGNOSTIC RESULT MODE ", "DIAGNOSTIC PROCEDURE WITHOUT CONSULT-II ".

    Is a malfunction in the CAN communication indicated in the results?

    1. YES: Check CAN communication line. Refer to "DTC U1000 CAN COMMUNICATION LINE ".
    2. NO: GO TO 2.
  2. CHECK STOP LAMP SWITCH CIRCUIT

    WITH CONSULT-II

    1. Turn ignition switch ON. (Do not start engine.)
    2. Select "ECU INPUT SIGNALS" in "DATA MONITOR" mode for "A/T" with CONSULT-II.
    3. Read out ON/OFF switching action of the "BRAKE SW".

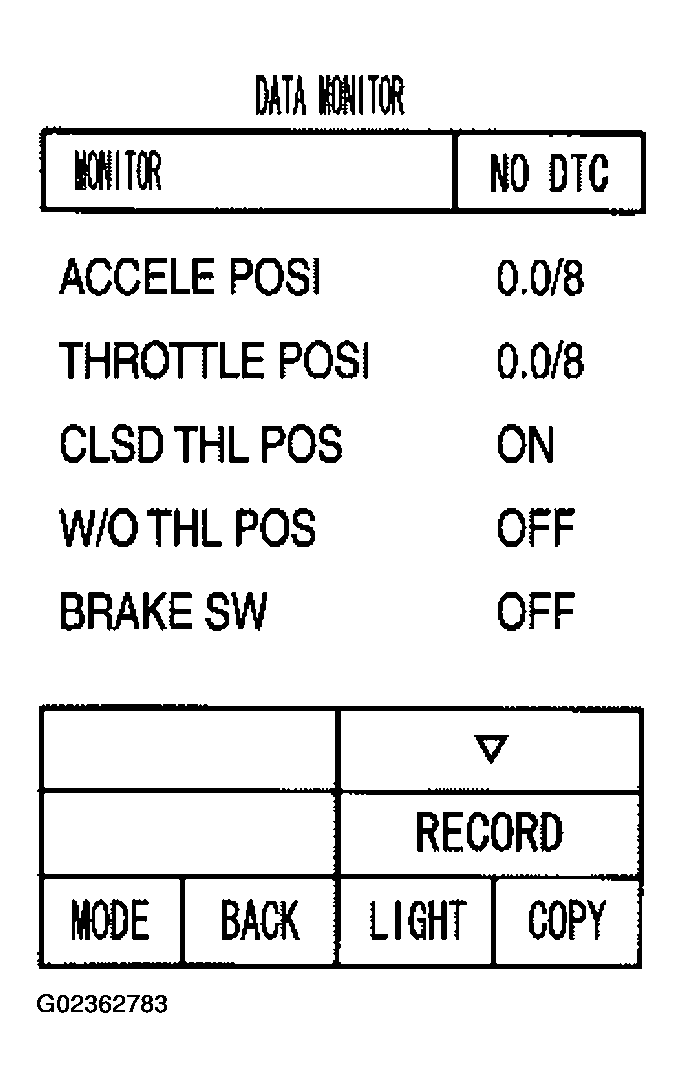

      Fig 1: Identifying Display - Data Monitor
      G02362782Courtesy of NISSAN MOTOR CO., U.S.A.
      Fig 2: Item Value Specification
      G02362783Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: INSPECTION END
    2. NG: GO TO 3.
  3. CHECK STOP LAMP SWITCH

    Check continuity between stop lamp switch harness connector terminals 1 and 2. Refer to "WIRING DIAGRAM - AT - NONDTC ".

    CONTINUITY SPECIFICATION

    Condition Continuity
    When brake pedal is depressed Yes
    When brake pedal is released No

    Check stop lamp switch after adjusting brake pedal -  Refer to "BRAKE PEDAL ".

    Fig 3: Checking Continuity Between Stop Lamp Switch Harness Connector Terminals 1 And 2
    G02362784Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: INSPECTION END
    2. NG: Check the following items. If NG, repair or replace damaged parts.
      • Harness for short or open between battery and stop lamp switch.
      • Harness for short or open between stop lamp switch and unified meter and A/C amp.
