Component Inspection: Injector

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect injector harness connector.
  2. Check resistance between terminals as shown in the figure.

    Resistance: 11.1 - 14.3Ω [at 10 - 60°C (50 - 140°F)]

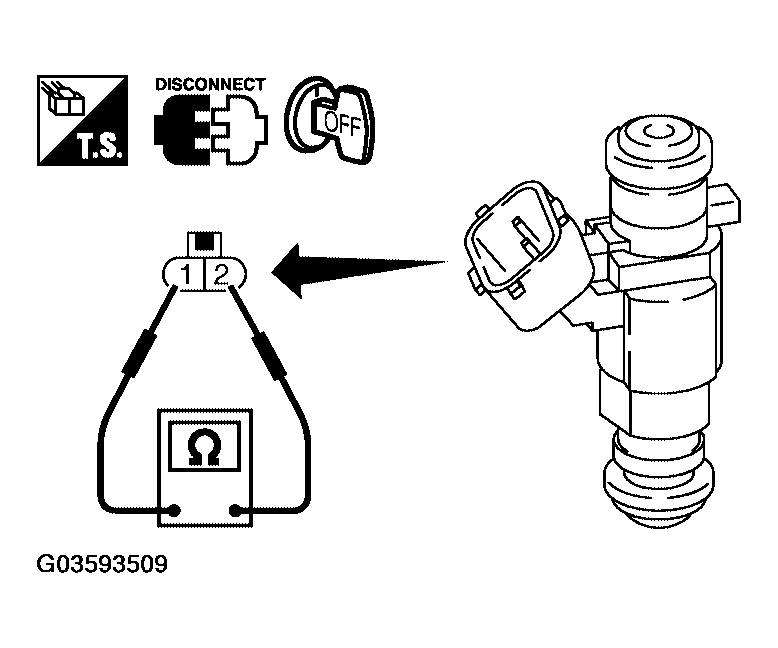

    Fig 1: Checking Resistance Between Injector Harness Connector Terminals
    G03593509Courtesy of NISSAN MOTOR CO., U.S.A.
