CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

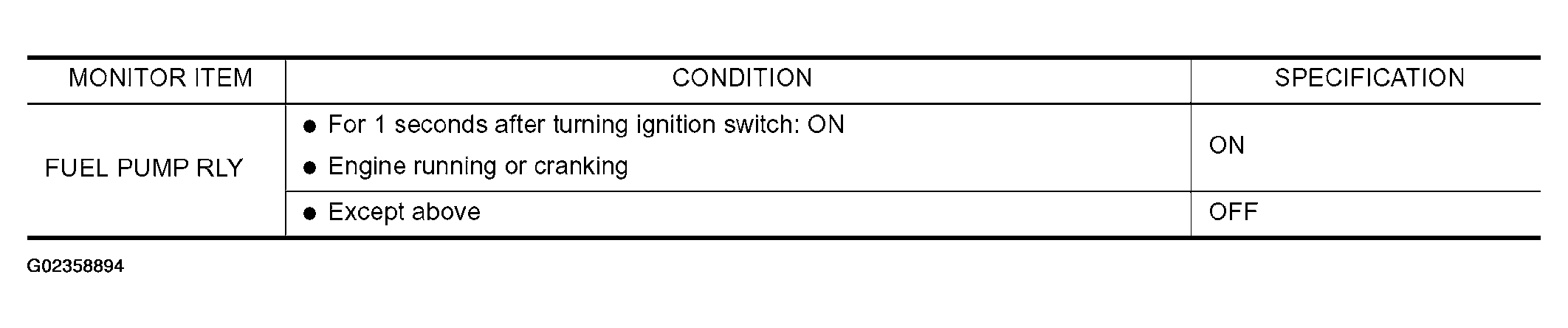

Fig 1: Specification Data Are Reference Values Description

G02358894

Courtesy of NISSAN MOTOR CO., U.S.A.
