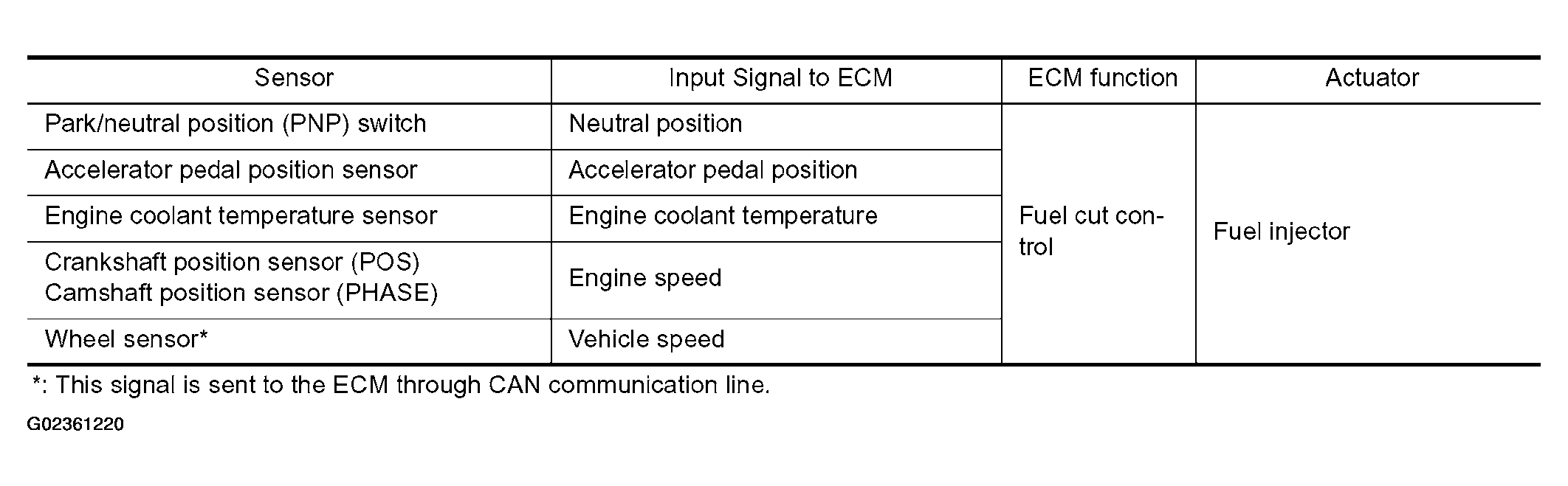

Home >> Infiniti >> 2005 >> FX45 >> Repair and Diagnosis >> Engine Performance >> Engine Control System - VK45DE >> Engine Control System >> Fuel Cut Control (at No Load and High Engine Speed) >> Input/Output Signal Chart
