Home >> Infiniti >> 2005 >> FX45 >> Repair and Diagnosis >> Engine Mechanical >> Engine Lubrication System >> Oil Pump >> Removal and Installation >> Notes

Removal and Installation: Notes

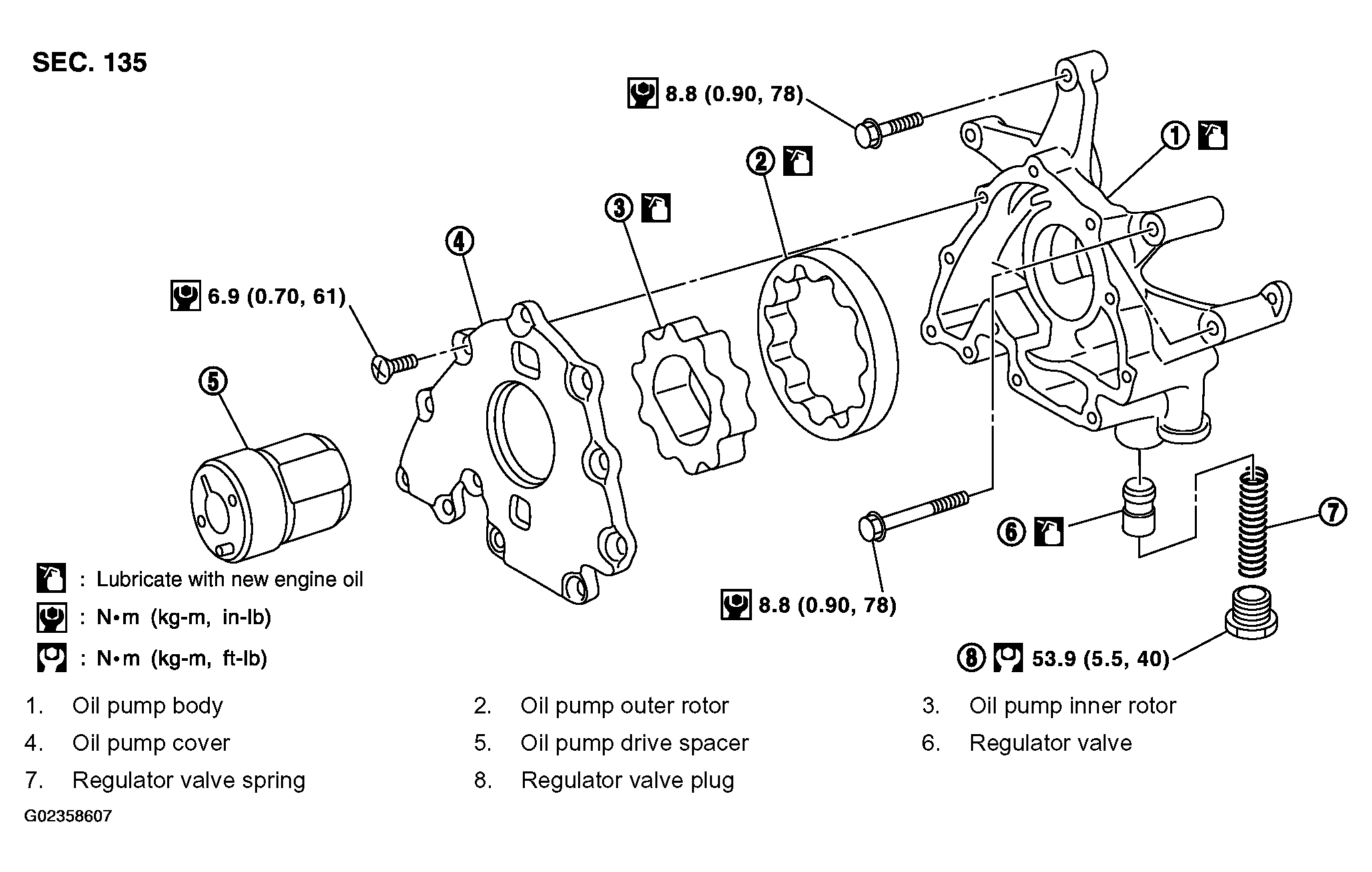

Fig 1: Removing & Installing Oil Pump

G02358607

Courtesy of NISSAN MOTOR CO., U.S.A.
