Infiniti
>>
2005
>>
FX45
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Engine Lubrication System
>>
Oil Cooler
>>
Removal and Installation
>>
Notes
Removal and Installation: Notes

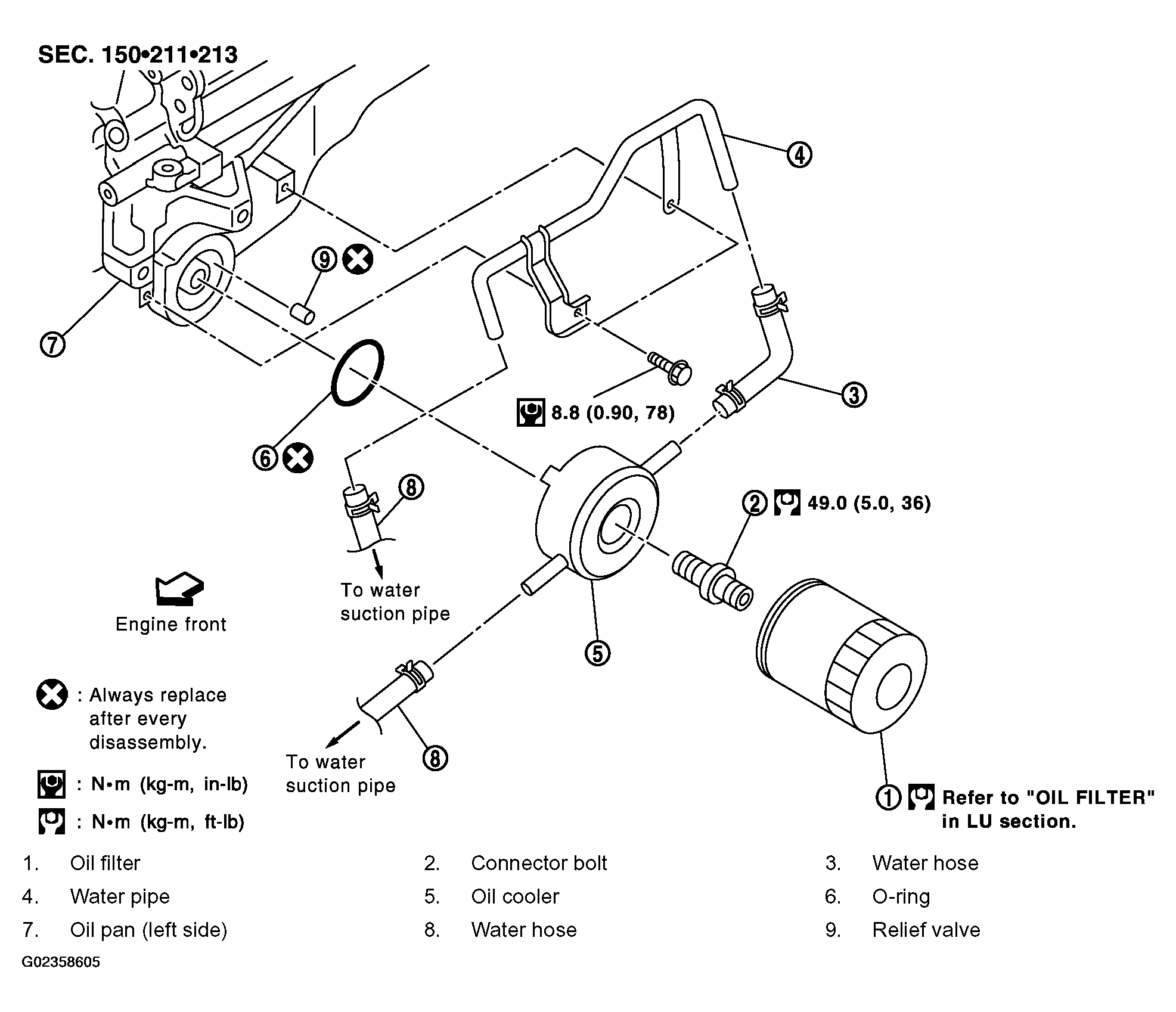

Fig 1: Removing & Installing Oil Cooler
Courtesy of NISSAN MOTOR CO., U.S.A.
WARNING:
Be careful not to get burn yourself, as engine oil and engine coolant are hot.
Courtesy of NISSAN MOTOR CO., U.S.A.
