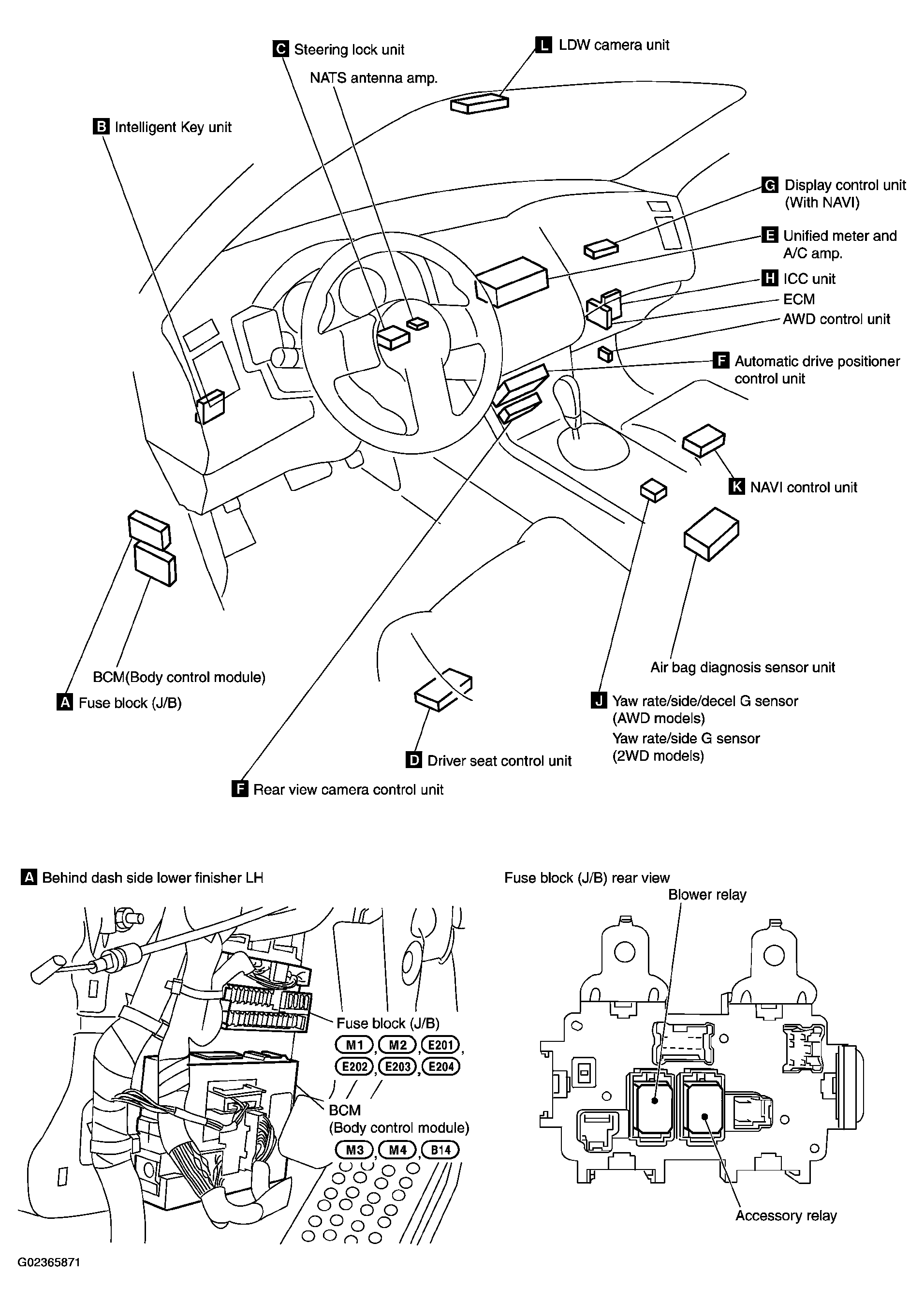

Passenger Compartment
NOTE:
For circuit wiring diagram, see POWER SUPPLY ROUTING CIRCUIT
in the POWER SUPPLY, GROUND & CIRCUIT ELEMENTS article in ELECTRICAL.

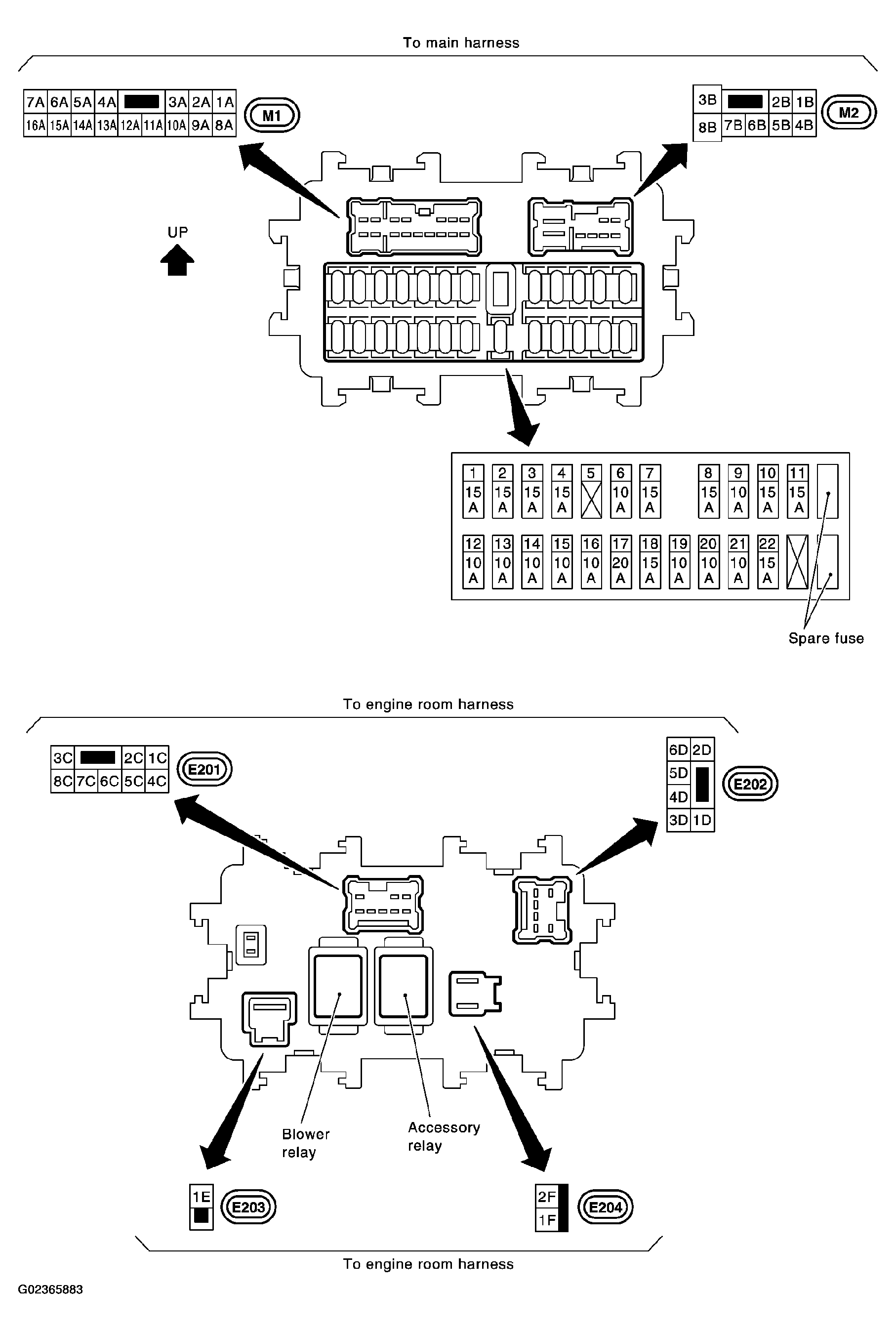

Instrument Panel Fuse Block/Junction Box Assignments
| Fuse | Amps | Circuit |
|---|---|---|
| 1 | 15 A | Main Power Supply and Ground Circuit, Fuel Injection System Function (Bank 1), Fuel Injection System Function (Bank 2), Injector, Low Tire Pressure Warning System, Remote Keyless Entry System, Nissan Anti-Theft System, Homelink Universal Transceiver, Intelligent Key System, Inside Mirror (Auto Anti-Dazzling Mirror), Rear Window Defogger, Power Window, Sunroof, Automatic Drive Positioner, Combination Switch, Headlamp, Headlamp - With Daytime Light System, Automatic Light System, Headlamp Aiming Control System, Front Fog Lamp, Turn Signal and Hazard Warning Lamp, Parking, License and Tail Lamps, Interior Room Lamp, Illumination, Compass, Warning Chime, Front Wiper and Washer, Rear Wiper and Washer, Vehicle Information and Integrated Switch System |
| 2 | 15 A | Power Socket |
| 3 | 15 A | Power Socket |
| 4 | 15 A | Power Socket |
| 5 | - | BLANK |
| 6 | 10 A | Remote Keyless Entry System, Vehicle Security System, Power Door Mirror, Automatic Drive Positioner, Air Conditioner, Combination Switch, Headlamp, Automatic Light System, Headlamp Aiming Control System, Front Fog Lamp, Turn Signal and Hazard Warning Lamp, Parking, License and Tail Lamps, Illumination, Rear View Camera Control System, Audio, Manual Antenna, Navigation System, Vehicle Information and Integrated Switch System, Audio Visual Communication Line, Mobile Entertainment System |
| 7 | 15 A | Cigar |
| 8 | 15 A | Rear Window Defogger |
| 9 | 10 A | Power Door Mirror, Automatic Drive Positioner |
| 10 | 15 A | Air Conditioner, Speedometer, Tachometer, Temp. and Fuel Gauges |
| 11 | 15 A | Air Conditioner, Speedometer, Tachometer, Temp. and Fuel Gauges |
| 12 | 10 A | Rear Window Defogger Relay, Fuel Tank Temperature Sensor, Snow Mode Switch, Automatic Speed Control Device (ASCD) Brake Switch, Automatic Speed Control Device (ASCD) Brake Switch, ICC Brake Switch, ICC Brake Switch, Manual Mode Switch, A/T Shift Lock System, AWD Control System, Low Tire Pressure Warning System,Vehicle Dynamics Control System, Nissan Anti-Theft System, Intelligent Key System, Inside Mirror (Auto Anti-Dazzling Mirror), Air Conditioner, Parking, License and Tail Lamps, Illumination, Speedometer, Tachometer, Temp.& Fuel Gauges, Compass, Warning Lamps, A/T Indicator Lamp, Warning Chime, Rear View Camera Control System, Lane Departure Warning System, Audio, Navigation System, Vehicle Information and Integrated Switch System, Audio Visual Communication Line, Intelligent Cruise Control System |
| 13 | 10 A | Supplemental Restraint System |
| 14 | 10 A | Automatic Speed Control Device (ASCD) Indicator, MIL & Data Link Connectors, Manual Mode Switch, Non-Detective Items, AWD Control System, Low Tire Pressure Warning System, Vehicle Dynamics Control System, Supplemental Restraint System, Intelligent Key System, Charging System, Headlamp, Headlamp - With Daytime Light System, Headlamp Aiming Control System, Turn Signal and Hazard Warning Lamp, Stop Lamp, Parking, License and Tail Lamps, Interior Room Lamp, Illumination, Speedometer, Tachometer, Temp. and Fuel Gauges, Warning Lamps, A/T Indicator Lamp, Warning Chime, Lane Departure Warning System, Intelligent Cruise Control System |
| 15 | 10 A | Heated Seat |
| 16 | 10 A | Heated Oxygen Sensor 1 Heater Bank 1, Heated Oxygen Sensor 1 Heater Bank 2, Heated Oxygen Sensor 1 Bank 1, Heated Oxygen Sensor 1 Bank 2, Fuel Injection System Function (Bank 1), Fuel Injection System Function (Bank 2), Air Fuel Ratio Sensor 1 Heater Bank 1, Air Fuel Ratio Sensor 1 Heater Bank 2, Air Fuel Ratio Sensor 1 Bank 1, Air Fuel Ratio Sensor 1 Bank 2 |
| 17 | 20 A | Audio, Navigation System |
| 18 | 15 A | Back Door Closure System |
| 19 | 10 A | Fuel Tank Temperature Sensor, Automatic Speed Control Device (ASCD) Indicator, MIL & Data Link Connectors, Manual Mode Switch, Non-Detective Items, AWD Control System, Vehicle Dynamics Control System, Low Tire Pressure Warning System, Vehicle Security System, Nissan Anti-Theft System, Intelligent Key System, A/C, Headlamp, Headlamp - With Daytime Light System, Headlamp Aiming Control System, Turn Signal and Hazard Warning Lamp, v, Parking, License and Tail Lamps, Interior Room Lamp, Illumination, Speedometer, Tachometer, Temp. and Fuel Gauges, Warning Lamps, A/T Indicator Lamp, Warning Chime, Clock, Rear View Camera Control System, Navigation System, Vehicle Information and Integrated Switch System, Audio Visual Communication Line, Intelligent Cruise Control System |
| 20 | 10 A | Automatic Speed Control Device (ASCD) Brake Switch, Brake Switch, Automatic Speed Control Device (ASCD) Brake Switch, ICC Brake Switch, ICC Brake Switch, Non-Detective Items, Vehicle Dynamics Control System, Intelligent Key System, Turn Signal and Hazard Warning Lamp, Stop Lamp, Parking, License and Tail Lamps, Intelligent Cruise Control System |
| 21 | 10 A | AWD Control System |
| 22 | 15 A | Low Tire Pressure Warning System, Power Door Lock, Remote Keyless Entry System, Vehicle Security System, Nissan Anti-Theft System, Homelink Universal Transceiver, Intelligent Key System, Inside Mirror (Auto Anti-Dazzling Mirror), Power Window, Sunroof, Automatic Drive Positioner, Combination Switch, Headlamp, Headlamp - With Daytime Light System, Automatic Light System, Headlamp Aiming Control System, Front Fog Lamp, Turn Signal and Hazard Warning Lamp, Parking, License and Tail Lamps, Interior Room Lamp, Illumination, Compass, Warning Chime, Vehicle Information and Integrated Switch System, Navigation System, Front Wiper and Washer, Rear Wiper and Washer |
