VK45DE Engine Models
>>
Notes
VK45DE Engine Models: Notes

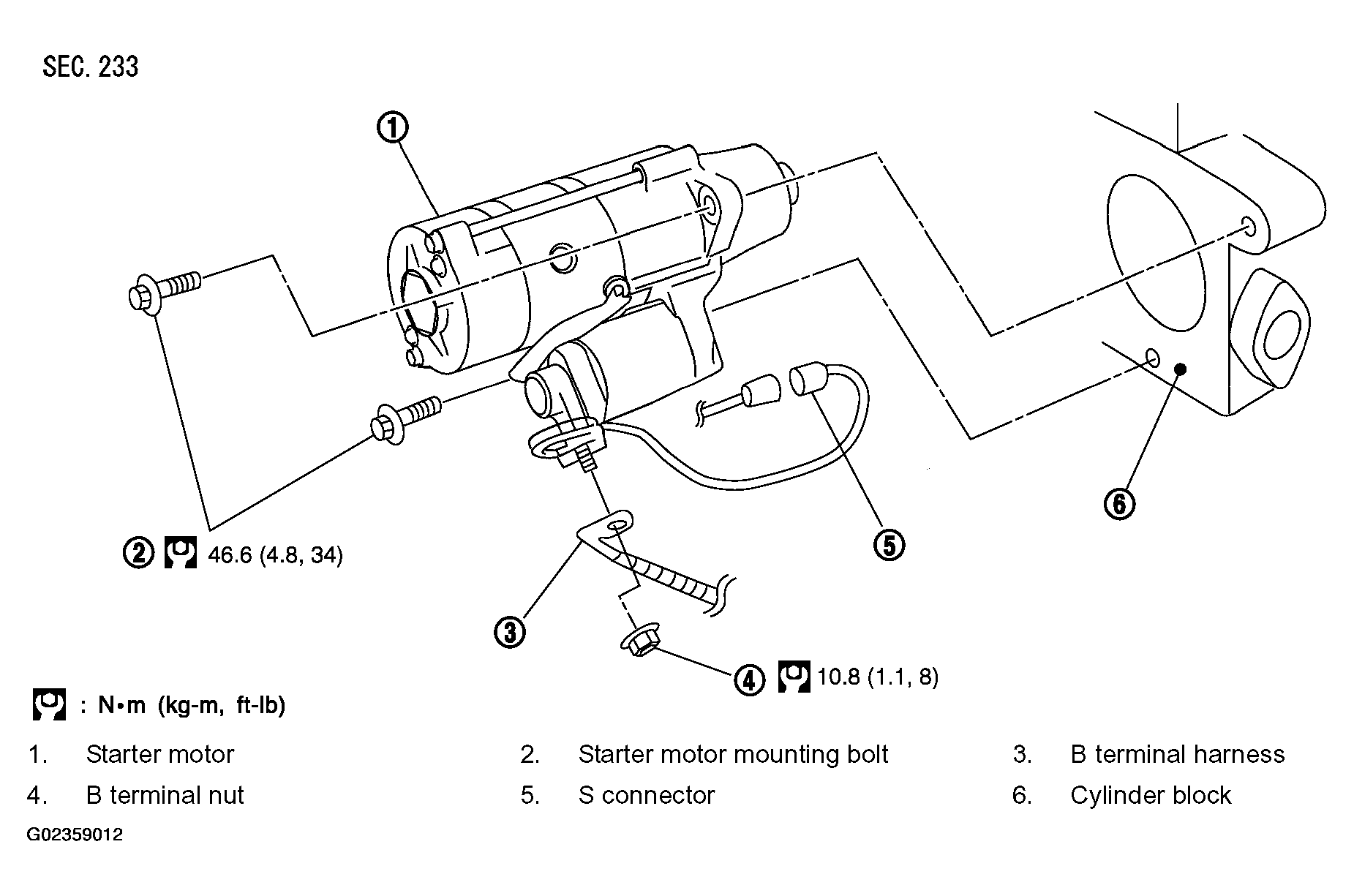

Fig 1: Starting System With Torque Specifications (VK45DE Engine Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
