Trouble Diagnosis Symptom Chart / With Front Power Window Anti-Pinch System

Make sure other systems using the signal of the following systems operate normally.

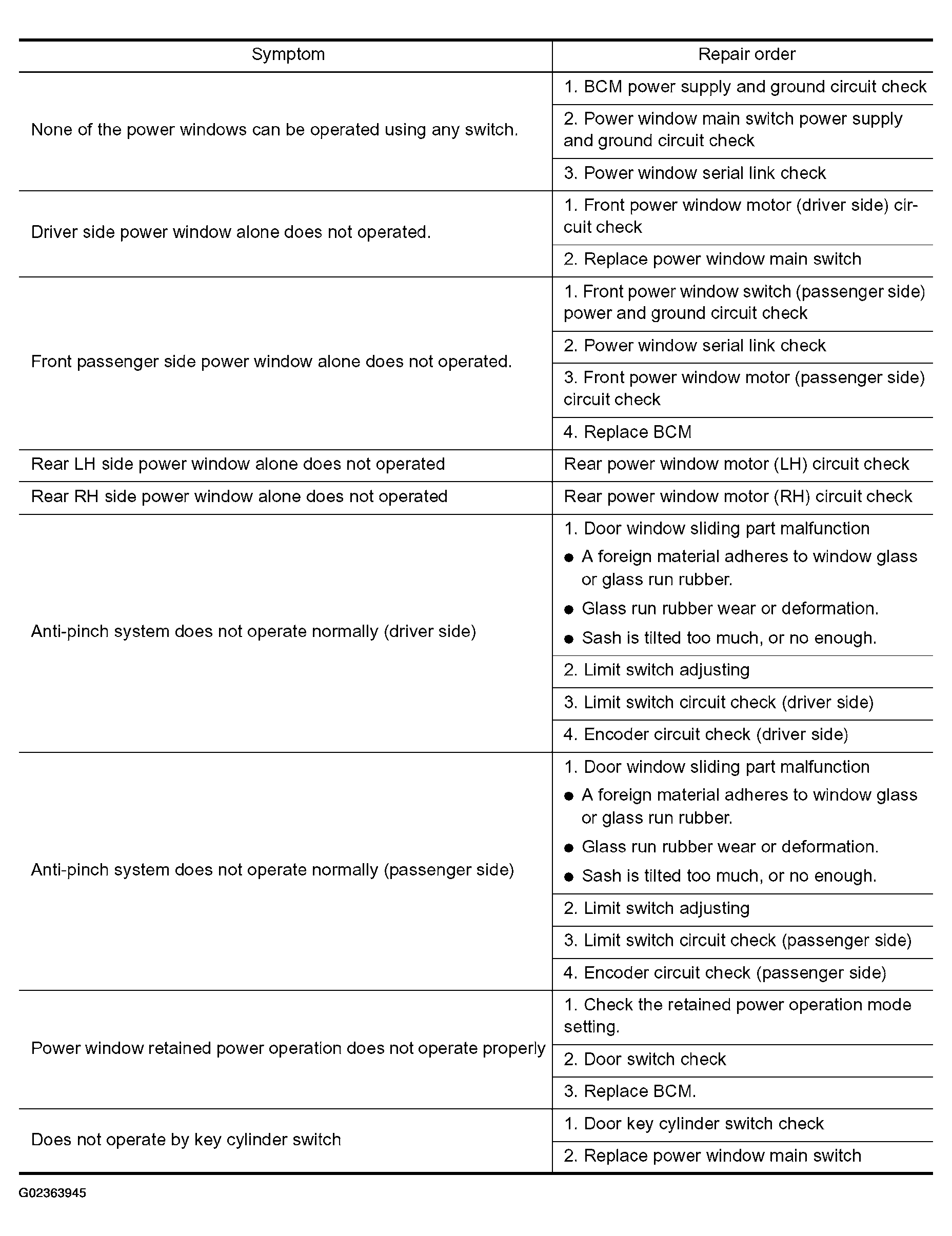

Fig 1: With Front And Rear Power Window Anti-Pinch System - Trouble Diagnosis Symptom Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

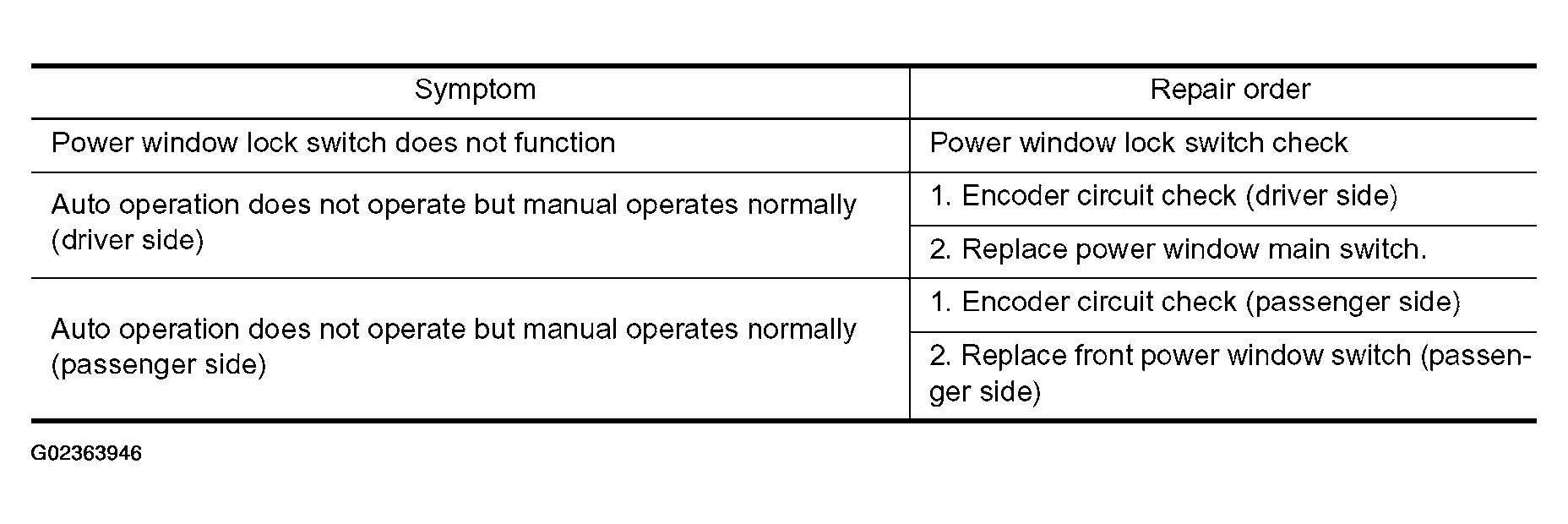

Fig 2: With Front And Rear Power Window Anti-Pinch System - Trouble Diagnosis Symptom Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
