Terminal and Reference Value for Power Window Main Switch / With Front and Rear Power Window Anti-pinch System
Terminal and Reference Value for Power Window Main Switch / With Front and Rear Power Window Anti-pinch System

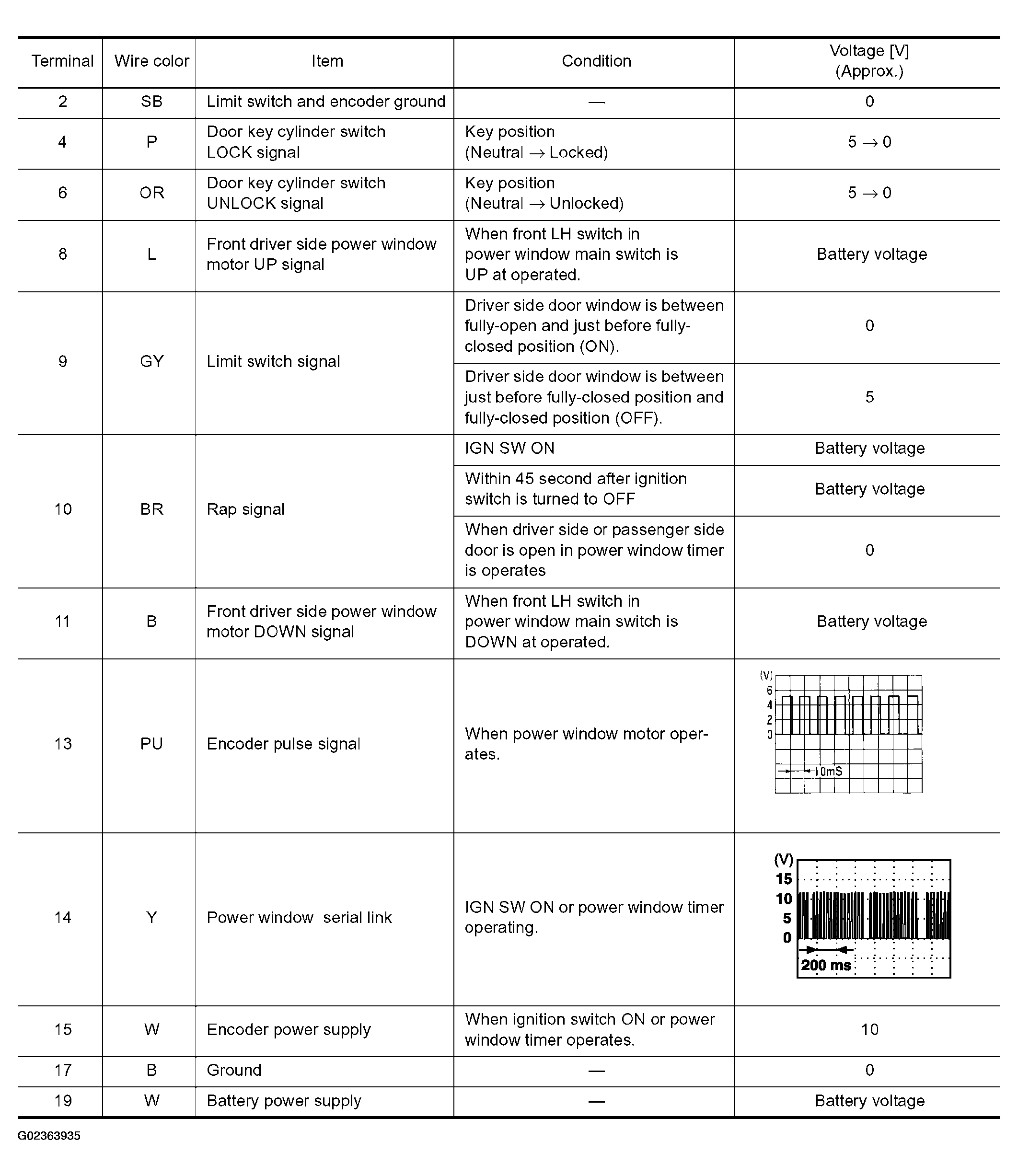

Fig 1: Power Window Main Switch / With Front And Rear Power Window Anti-Pinch System Terminal And Reference Value Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
