Power Seat: Schematic

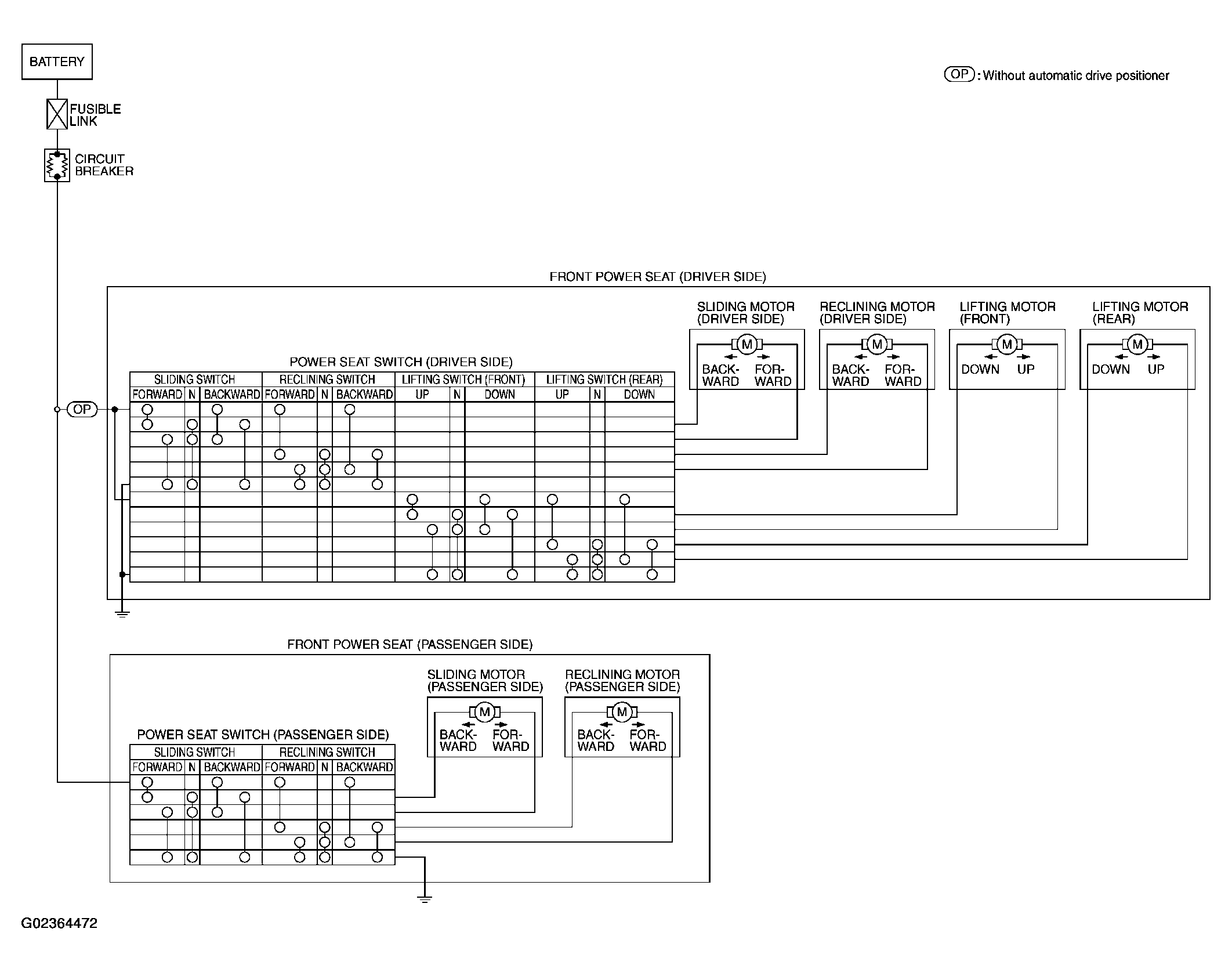

Fig 1: Power Seat Schematic Diagram

G02364472

Courtesy of NISSAN MOTOR CO., U.S.A.
