Tilt Switch Circuit Check

CHECK FUNCTION
With CONSULT-II

With "TILT SW-UP,TILT SW-DOWN" on the DATA MONITOR, operate the ADP steering switch to check ON/OFF operation.

Fig 1: Monitor Item Table
Courtesy of NISSAN MOTOR CO., U.S.A.

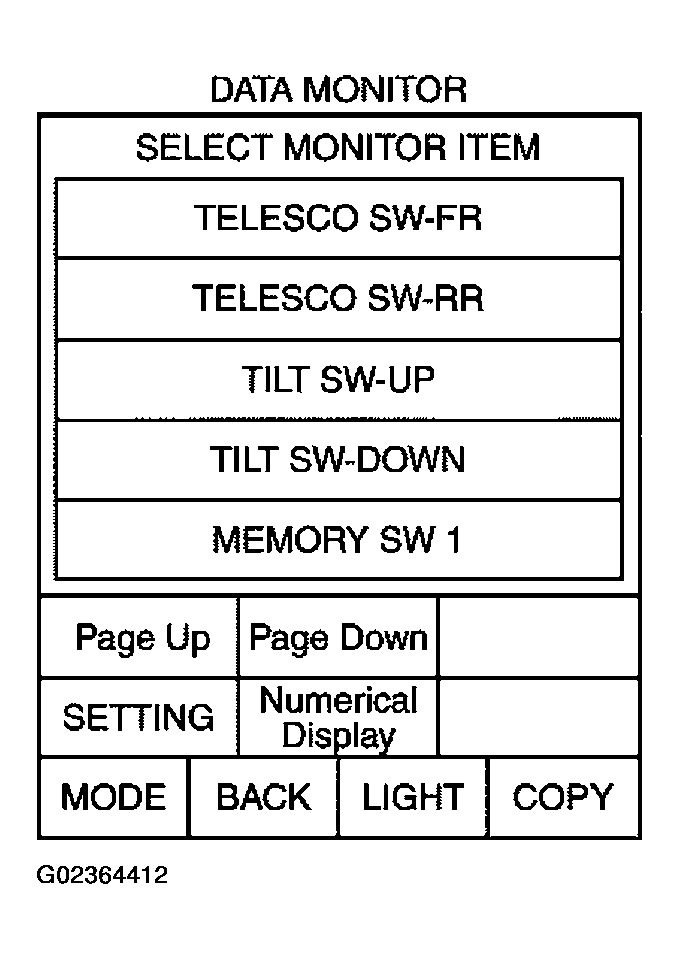

Fig 2: Data Monitor Display
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II
1. Turn ignition switch OFF.
2. Tilt switch operate, check voltage between automatic drive positioner control unit connector and ground.

  Fig 3: Voltage Table
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 4: Checking Voltage Between Terminal 1, 17 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK : Tilt switch circuit is OK.
2. NG : GO TO 2.
CHECK TILT SWITCH CIRCUIT HARNESS CONTINUITY
1. Disconnect automatic drive positioner control unit connector and ADP steering switch connector.
2. Check continuity between automatic drive positioner control unit connector M49 terminals 1,17 and ADP steering switch connector M13 terminals 2, 3.
  1. 1 (LG/R) - 2 (LG/R) : Continuity should exist.
  2. 17 (R/B) - 3 (R/B) : Continuity should exist.
3. Check continuity between automatic drive positioner control unit connector M49 terminals 1,17 and ground.
  1. 1 (LG/R) - Ground : Continuity should not exist.
  2. 17 (R/B) - Ground : Continuity should not exist.
OK or NG
1. OK : GO TO 3.
2. NG : Repair or replace harness between automatic drive positioner control unit and ADP steering switch.
Fig 5: Checking Continuity Between Terminals 1,17 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK ADP TILT STEERING SWITCH
ADP steering switch operate, check continuity between ADP steering switch.

Fig 6: Continuity Table
Courtesy of NISSAN MOTOR CO., U.S.A.

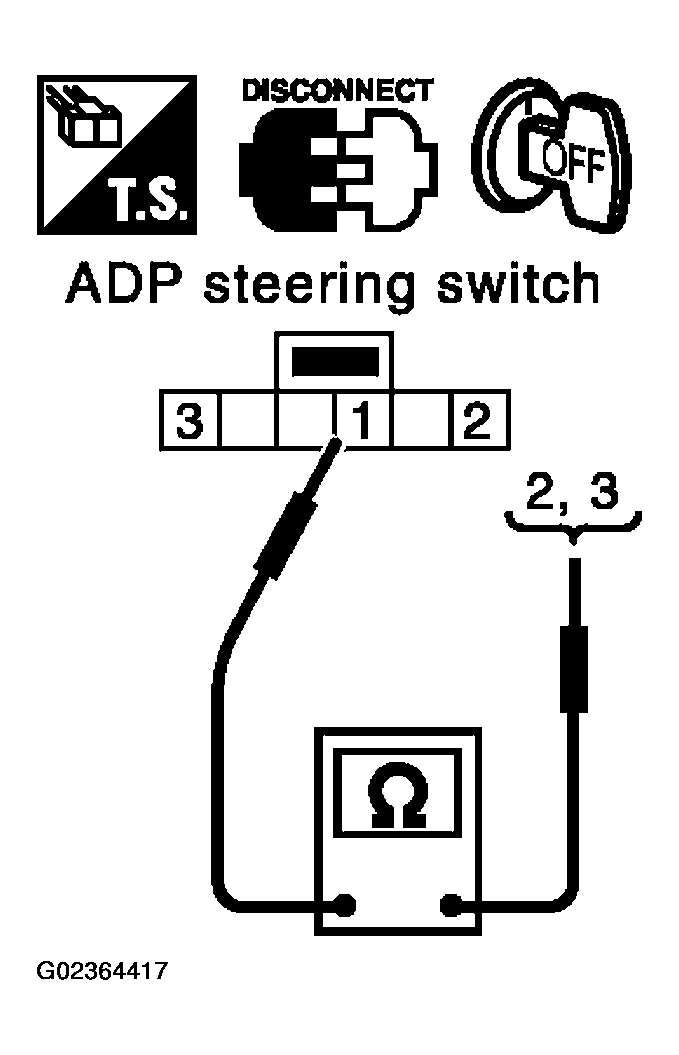

Fig 7: Checking Continuity Between ADP Steering Switch
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK : GO TO 6.
2. NG : Replace ADP steering switch.
CHECK ADP STEERING SWITCH GROUND CIRCUIT
Check continuity between ADP steering switch connector M13 terminal 1 and ground.
1. 1 (B) - Ground : Continuity should exist.
OK or NG
1. OK : Check the condition of the harness and connector.
2. NG : Repair or replace harness between ADP steering switch and ground.
Fig 8: Checking Continuity Between Terminal 1 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
