Sliding Switch Circuit Check

CHECK FUNCTION
With CONSULT-II

With "SLIDE SW-FR, SLIDE SW-RR" on the DATA MONITOR, operate the sliding switch to check ON/OFF operation.

Fig 1: Monitor Item Table
Courtesy of NISSAN MOTOR CO., U.S.A.

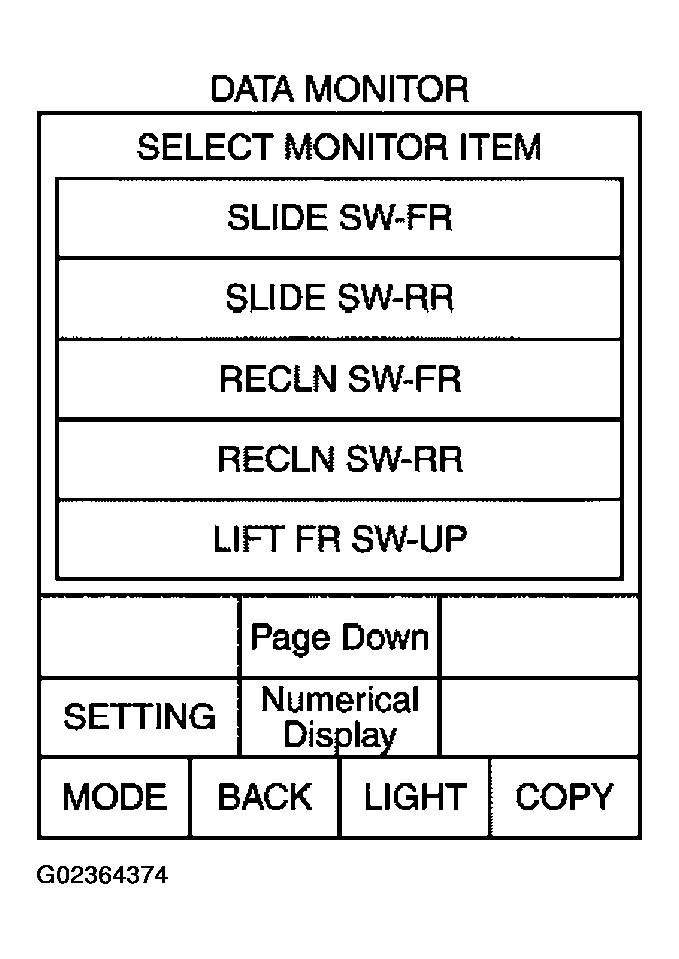

Fig 2: Data Monitor Display
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II
1. Turn ignition switch OFF.
2. Sliding switch operate, check voltage between driver seat control unit connector and ground.

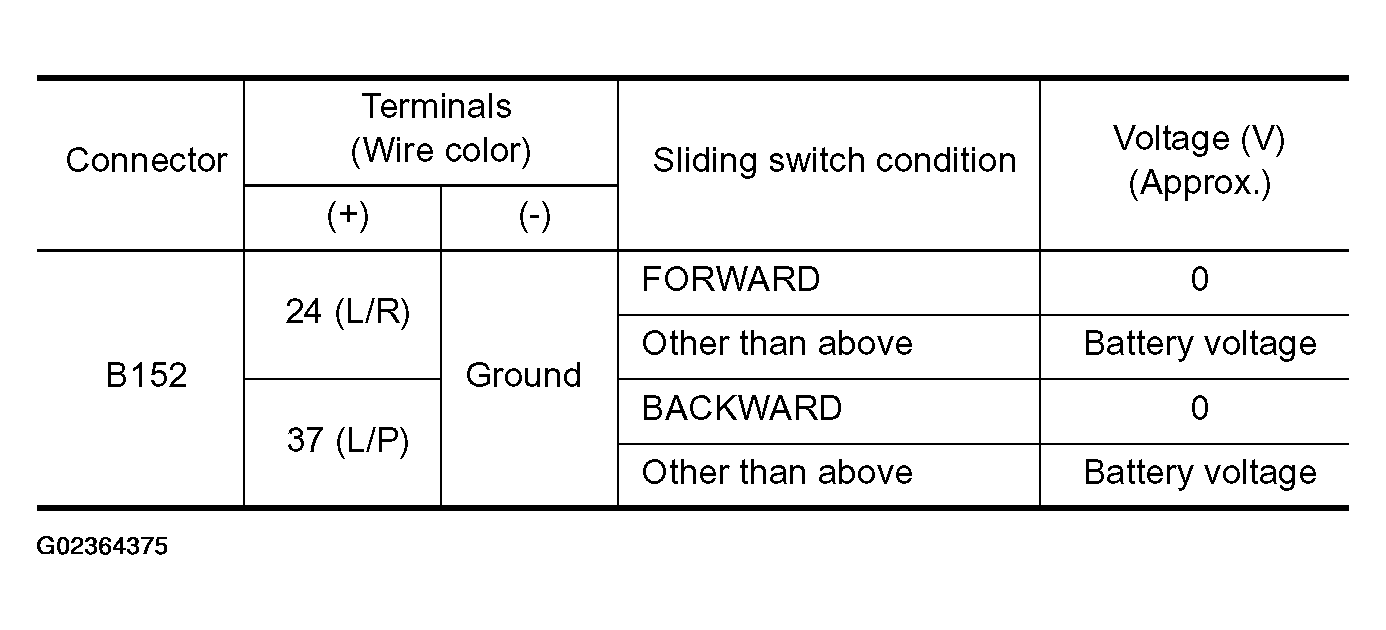

  Fig 3: Voltage Table
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 4: Checking Voltage Between Terminal 24, 37 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK : Sliding switch circuit is OK.
2. NG : GO TO 2.
CHECK HARNESS CONTINUITY
1. Disconnect driver seat control unit connector and power seat switch (driver side) connector.
2. Check continuity between driver seat control unit connector B152 terminals 24, 37 and driver power seat switch connector B154 terminals 24, 37.
  1. 24 (L/R) - 24 (L/R) : Continuity should exist.
  2. 37 (L/P) - 37 (L/P) : Continuity should exist.
3. Check continuity between driver seat control unit connector B152 terminals 24, 37 and ground.
  1. 24 (L/R) - Ground : Continuity should not exist.
  2. 37 (L/P) - Ground : Continuity should not exist.
OK or NG
1. OK : GO TO 3.
2. NG : Repair or replace harness between driver seat control unit and power seat switch.
Fig 5: Checking Continuity Between Terminals 24, 37 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK SLIDING SWITCH
Sliding switch operate, check continuity between power seat switch connector B154 terminal 24, 27 and 61D.

Fig 6: Continuity Table
Courtesy of NISSAN MOTOR CO., U.S.A.

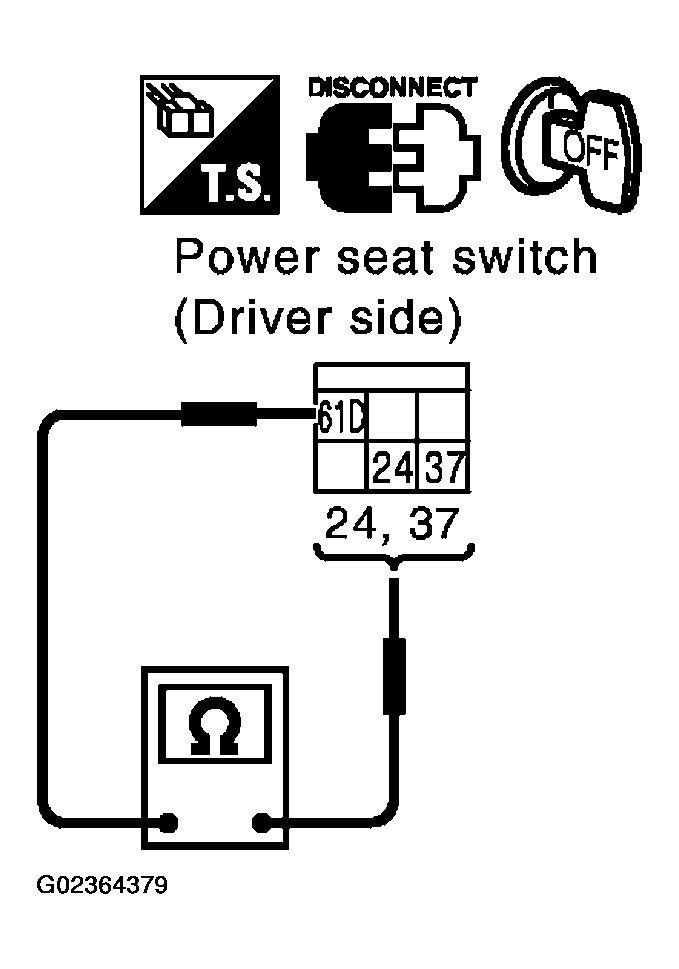

Fig 7: Checking Continuity Between Power Seat Switch Connector B154 Terminal 24, 27 And 61D
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK : Check the condition of the harness and connector.
2. NG : Replace driver power seat switch.
