Sliding Motor Circuit Check

Check the following.

• Operation malfunction caused by sliding rail deformation or pinched harness or other foreign materials
• Operation malfunction caused by foreign materials adhered to the sliding motor or sliding rail connector rod
• Operation malfunction and interference with other parts by poor installation

OK or NG

1. OK : GO TO 2.
2. NG : Repair the malfunctioning part and check again.

With CONSULT-II

Check operation with "SEAT SLIDE" in ACTIVE TEST.

Fig 1: Active Test Display

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

GO TO 3.

OK or NG

1. OK : Sliding motor circuit is OK.
2. NG : GO TO 3.

1. Turn ignition switch OFF.
2. Disconnect driver seat control unit connector and sliding motor connector.
3. Check continuity between driver seat control unit connector B153 terminals 3, 10 and sliding motor connector B161 terminals 3, 10.
   1. 3 (G) - 3 (G) : Continuity should exist.
   2. 10 (G/R) - 10 (G/R) : Continuity should exist.
4. Check continuity between driver seat control unit connector B153 terminals 3, 10 and ground.
   1. 3 (G) - Ground : Continuity should not exist.
   2. 10 (G/R) - Ground : Continuity should not exist.

OK or NG

1. OK : GO TO 4.
2. NG : Repair or replace harness between driver seat control unit and sliding motor.

Fig 2: Checking Continuity Between Driver Seat Control Unit Connector B153 Terminals 3, 10 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Connect the driver seat control unit connector.
2. Sliding switch operate, check voltage between driver seat control unit connector and ground.

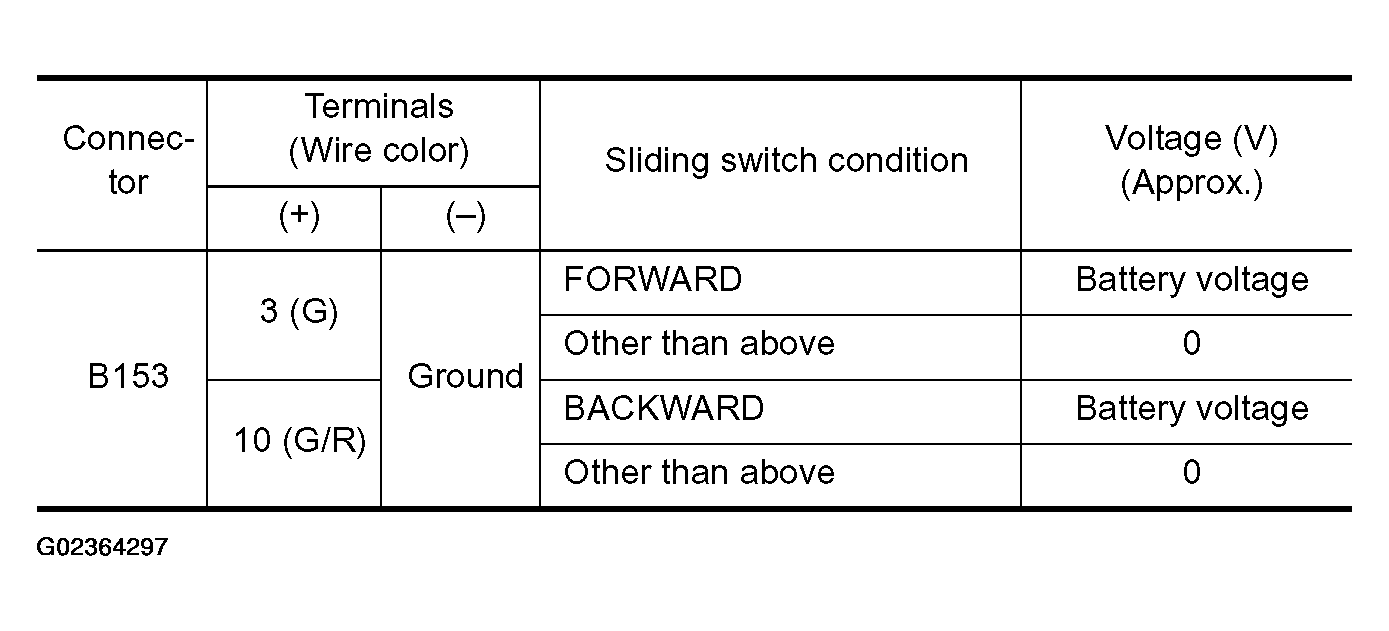

   Fig 3: Voltage Table

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK : Replace sliding motor.
2. NG : Replace driver seat control unit.

Fig 4: Checking Voltage Between Driver Seat Control Unit Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.
