Key Switch and Key Lock Solenoid Circuit Check (With Intelligent Key)
- CHECK KEY SWITCH AND KEY LOCK SOLENOID POWER SUPPLY CIRCUIT
With CONSULT-II

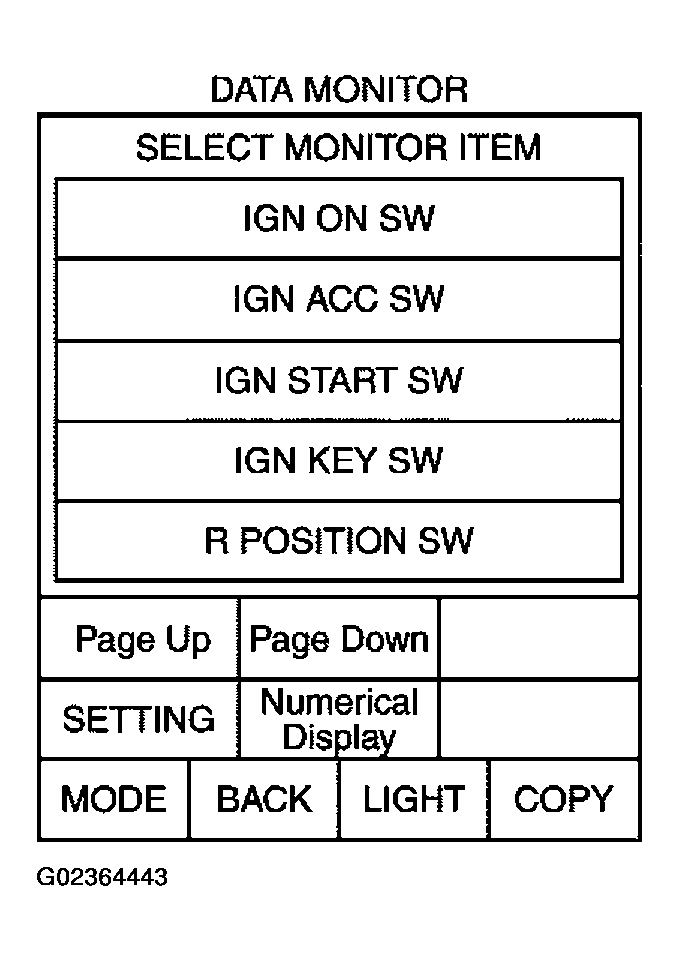

Touch "BCM". With "IGN KEY SW" on the DATA MONITOR, Check ON/OFF operation.
*: Refer to "DATA MONITOR ".
Without CONSULT-II
GO TO 2.
OK or NG
- OK : Key switch and ignition knob circuit is OK.
- NG : GO TO 2.
- CHECK KEY SWITCH AND KEY LOCK SOLENOID POWER SUPPLY CIRCUIT
- Turn ignition switch OFF.
- Disconnect key switch and ignition knob switch connector.
- Check voltage between key switch and key lock solenoid connector M22 terminal 3 and ground.
- 3 (L/R) - Ground : Battery voltage.
OK or NG
- OK : GO TO 3.
- NG : Check harness between key switch and key lock solenoid and fuse.
- CHECK KEY SWITCH
Check continuity between key switch and ignition knob switch connector M22 terminal 3 and 4.
OK or NG
- OK : GO TO 4.
- NG : Replace detention switch.
- CHECK HARNESS CONTINUITY
- Disconnect key switch and ignition knob switch connector and BCM connector.
- Check continuity between key switch and ignition knob switch connector M22 terminal 4 and BCM connector M3 terminal 37.
- 4 (B/W) - 37 (B/W) : Continuity should exist.
- Check continuity between key switch and ignition knob switch connector M22 terminal 4 and ground.
- 4 (B/W) - Ground : Continuity should not exist.
OK or NG
- OK : Key switch and ignition knob switch circuit is OK.
- NG : Repair or replace harness between key switch and ignition knob switch and BCM.
