Driver Side Mirror Motor Circuit Check

CHECK DOOR MIRROR FUNCTION
Check the following.

Operation malfunction caused by a foreign object caught in door mirror face edge.

OK or NG
1. OK : GO TO 2.
2. NG : Repair the malfunctioning parts, and check the symptom again.

CHECK MIRROR MOTOR

With CONSULT-II

Check the operation with "MIRROR MOTOR LH" in the ACTIVE TEST.

DESCRIPTION CHART

Test item	Description
MIRROR MOTOR LH	The LH mirror motor moves the mirror UP/DOWN and LEFT/RIGHT by receiving the drive signal.

Fig 1: Active Test Displays

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

GO TO 3.

OK or NG

OK : Driver side mirror motor circuit is OK.
NG : GO TO 3.

CHECK DOOR MIRROR MOTOR (DRIVER SIDE) HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit connector and door mirror (driver side) connector.
3. Check continuity between automatic drive positioner control unit connector M49 terminal 16, 31, 32 and door mirror (driver side) connector D2 terminal 8, 9, 10.
  1. 16 (P) - 8 (P) : Continuity should exist.
  2. 31 (R/W) - 10 (GY) : Continuity should exist.
  3. 32 (G/B) - 9 (PU) : Continuity should exist.
4. Check continuity between automatic drive positioner control unit connector M49 terminal 16, 31, 32 and ground.
  1. 16 (P) - Ground : Continuity should not exist.
  2. 31 (R/W) - Ground : Continuity should not exist.
  3. 32 (G/B) - Ground : Continuity should not exist.
OK or NG
1. OK : GO TO 4.
2. NG : Repair or replace harness between automatic drive positioner control unit and door mirror (driver side).

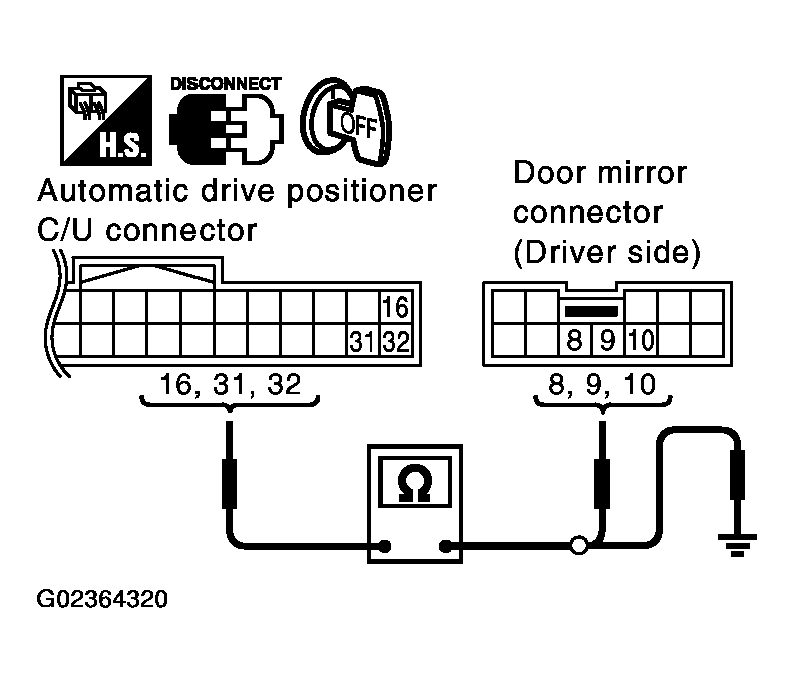

Fig 2: Checking Continuity Between Terminal 16, 31, 32 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK MIRROR MOTOR SIGNAL
1. Connect automatic drive positioner control unit and door mirror (driver side) connector.
2. Turn ignition switch ACC.
3. Turn change over switch LH position.
4. Mirror switch operate, check voltage between door mirror (driver side) connector and ground.

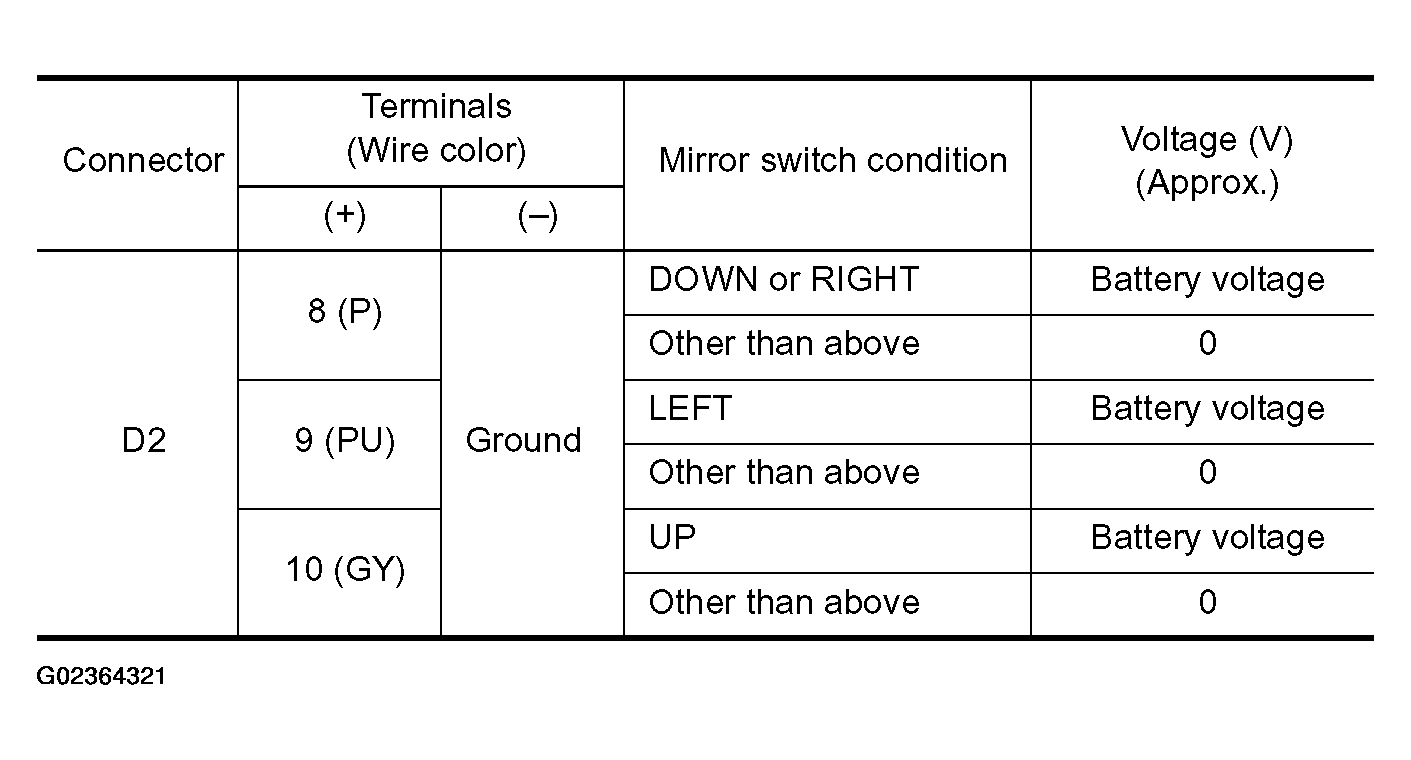

  Fig 3: Voltage Table
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK : Replace door mirror motor (driver side).
2. NG : Check the condition of the harness and the connector.
Fig 4: Checking Voltage Between Door Mirror (Driver Side) Connector And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
