CONSULT-II Function (AUTO DRIVE POS.): Notes

CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.

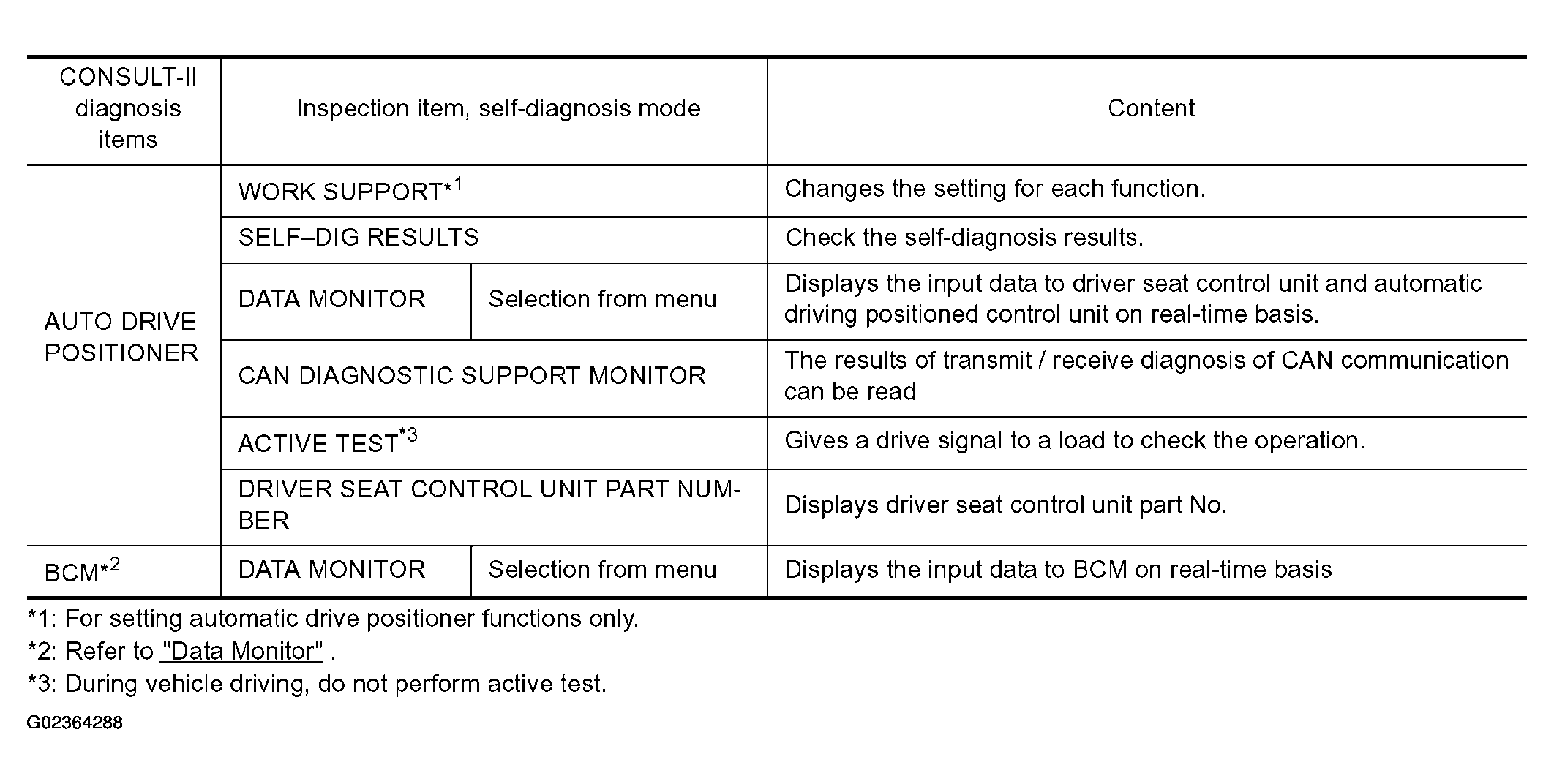

Fig 1: CONSULT-II Function Table
G02364288Courtesy of NISSAN MOTOR CO., U.S.A.
