CONSULT-II Function (BCM): Notes

CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.

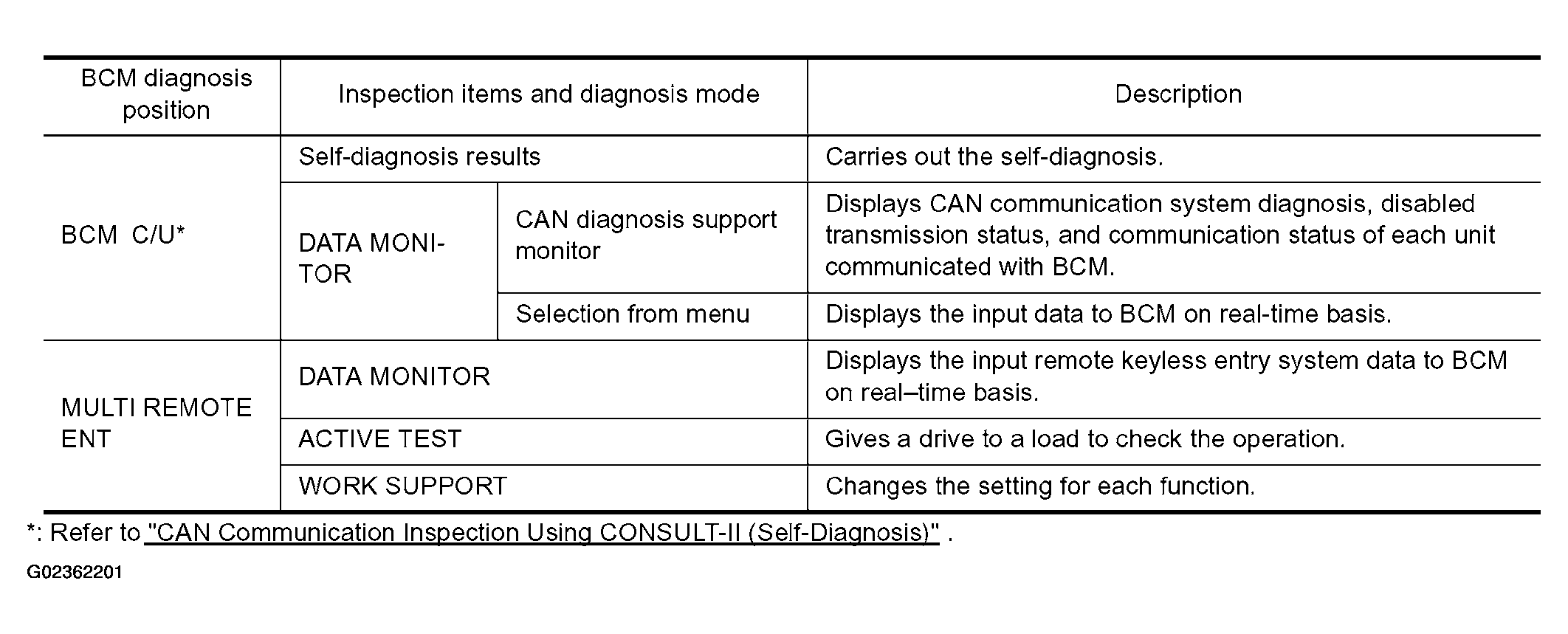

Fig 1: CONSULT-II Function (BCM) Description
G02362201Courtesy of NISSAN MOTOR CO., U.S.A.
