2WD Model

Align cutout on oil cooler with protrusion on oil pan (upper) side, and tighten connector bolt.

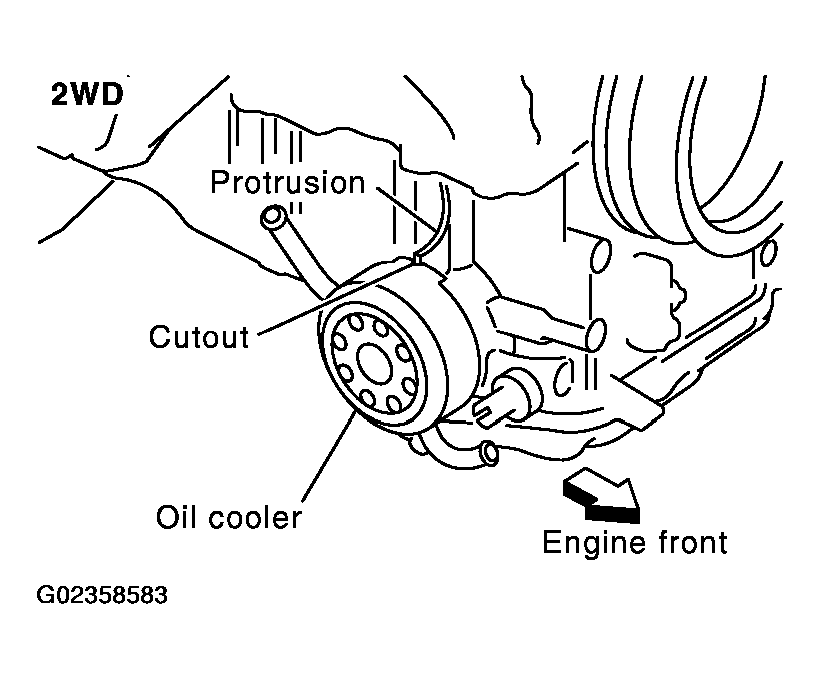

Fig 1: Aligning Cutout On Oil Cooler With Protrusion On Oil Pan Side (2WD Model)
G02358583Courtesy of NISSAN MOTOR CO., U.S.A.
