Infiniti
>>
2005
>>
FX35 RWD
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System
>>
System Description
>>
Hydraulic Circuit Diagram
Hydraulic Circuit Diagram

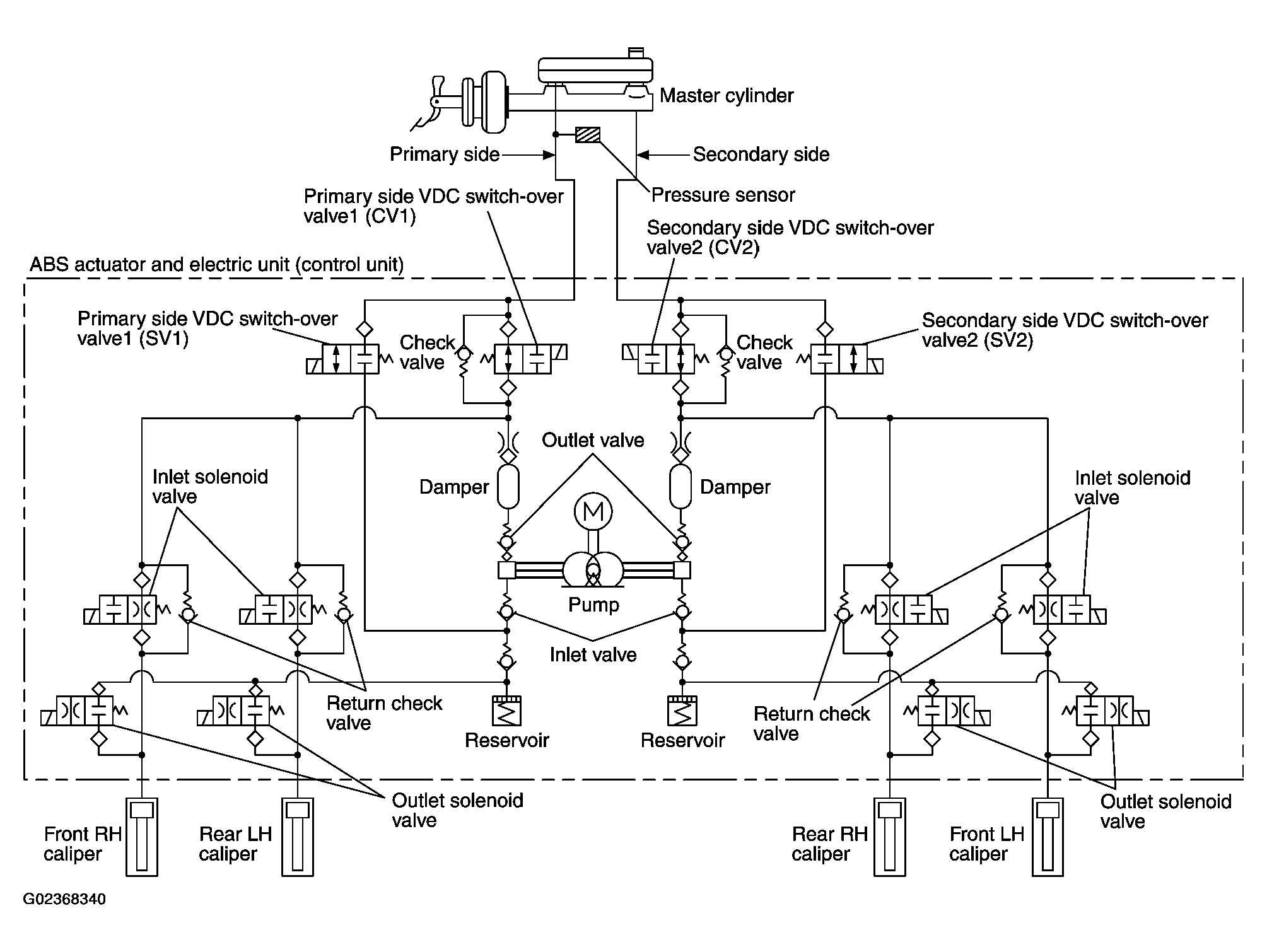

Fig 1: Brake Control System Hydraulic Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
