Shift Mechanism: Construction

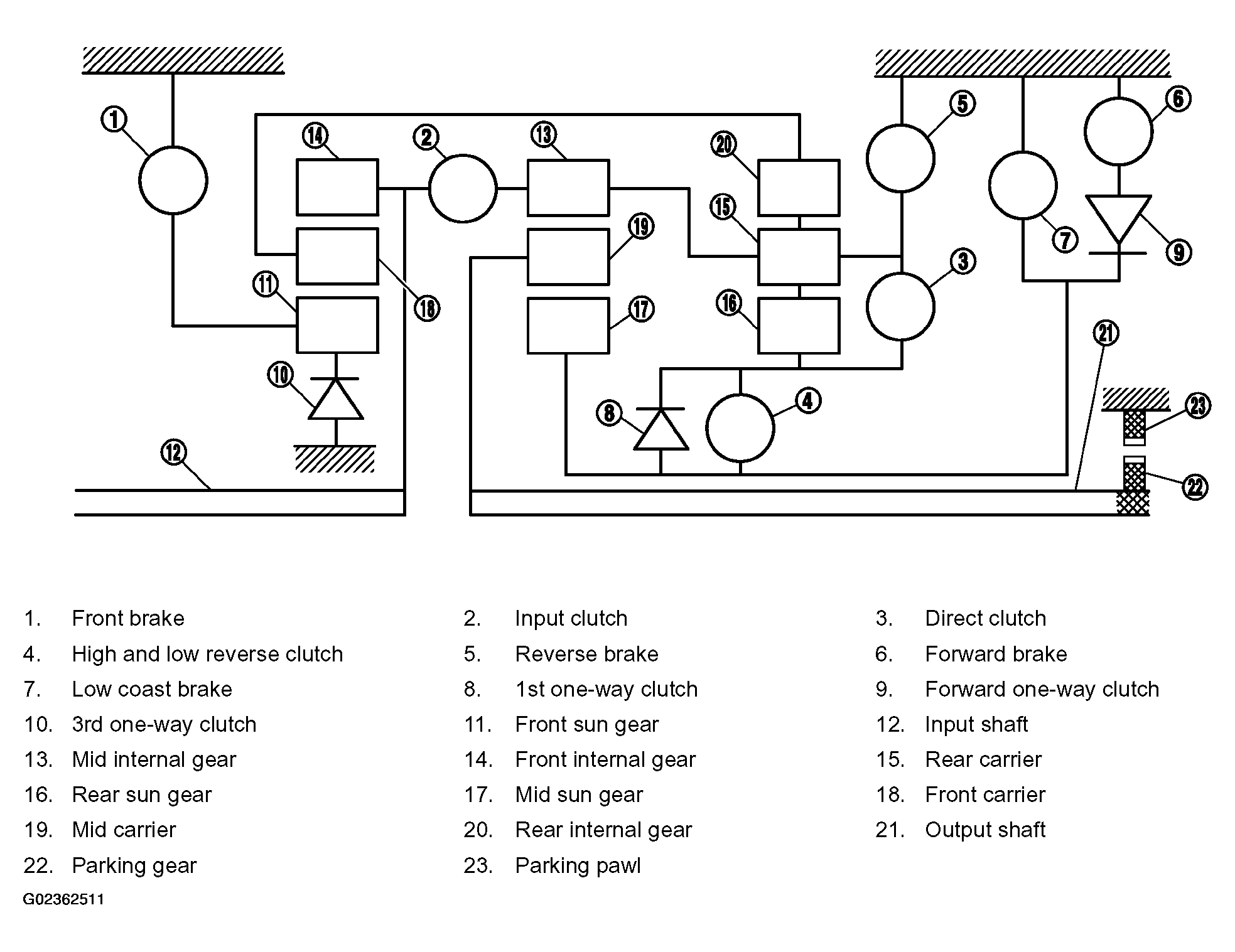

Fig 1: Construction - Shift Mechanism

G02362511

Courtesy of NISSAN MOTOR CO., U.S.A.
