ECM Inspection Table

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.

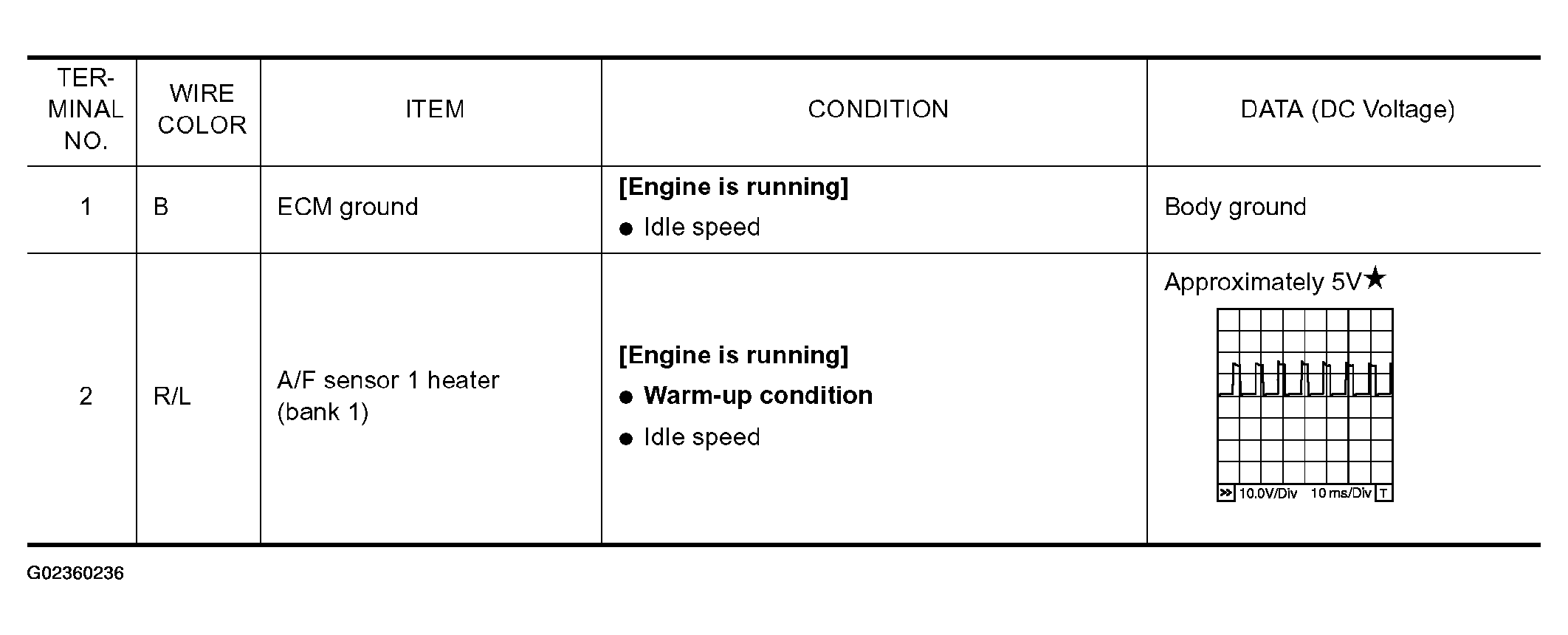

Fig 1: ECM Inspection Table (1 Of 9)

G02360236

Courtesy of NISSAN MOTOR CO., U.S.A.

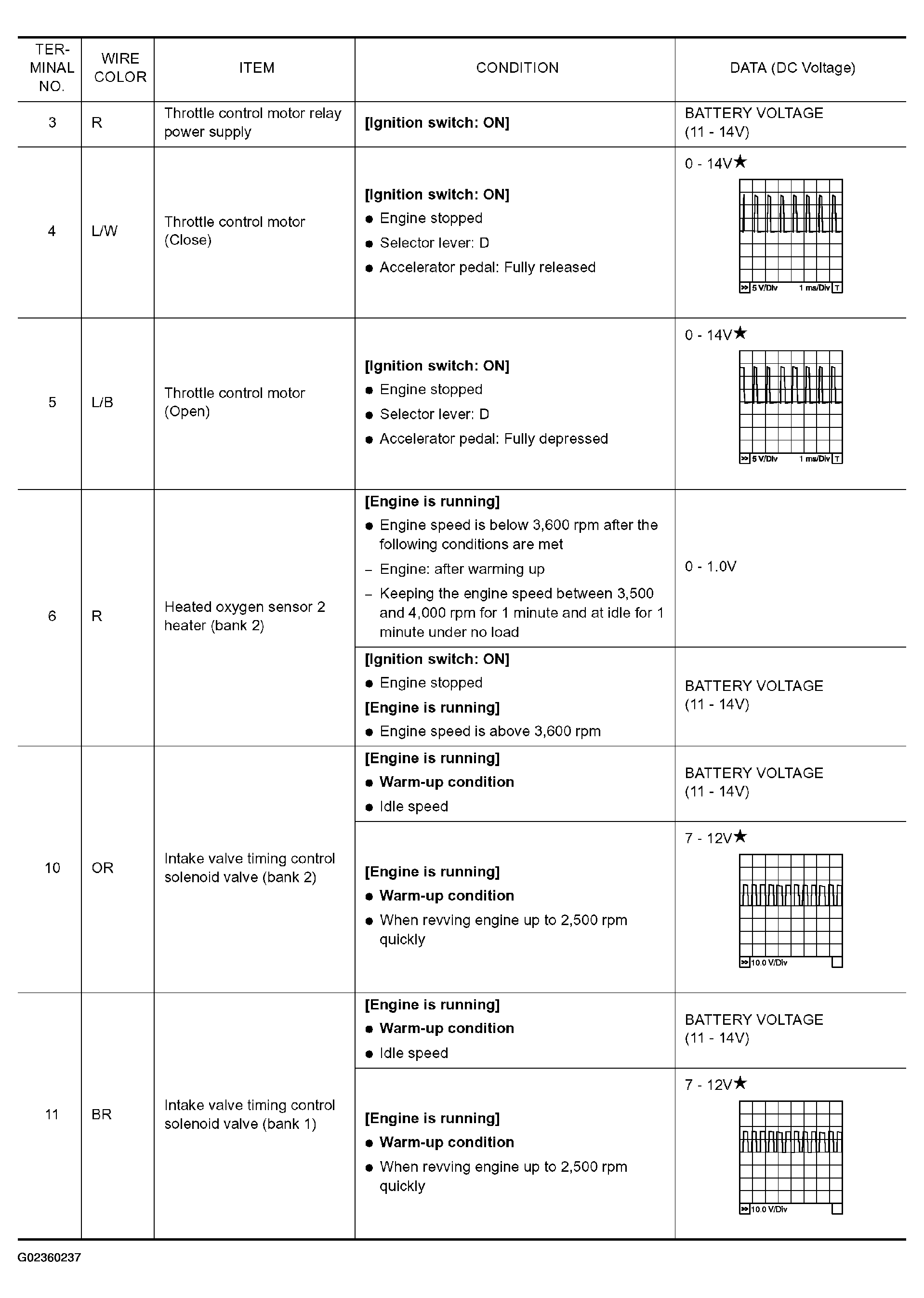

Fig 2: ECM Inspection Table (2 Of 9)

G02360237

Courtesy of NISSAN MOTOR CO., U.S.A.

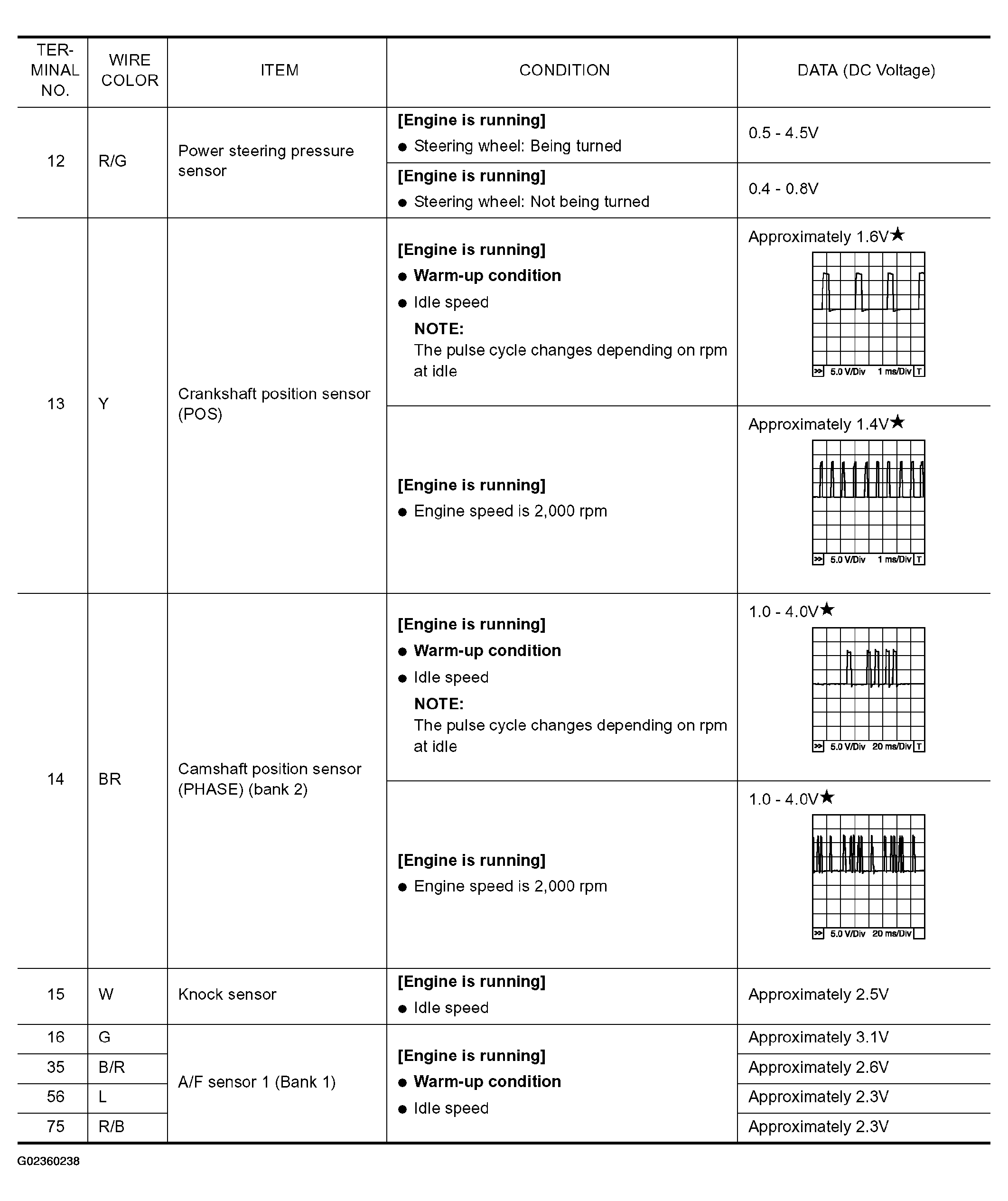

Fig 3: ECM Inspection Table (3 Of 9)

G02360238

Courtesy of NISSAN MOTOR CO., U.S.A.

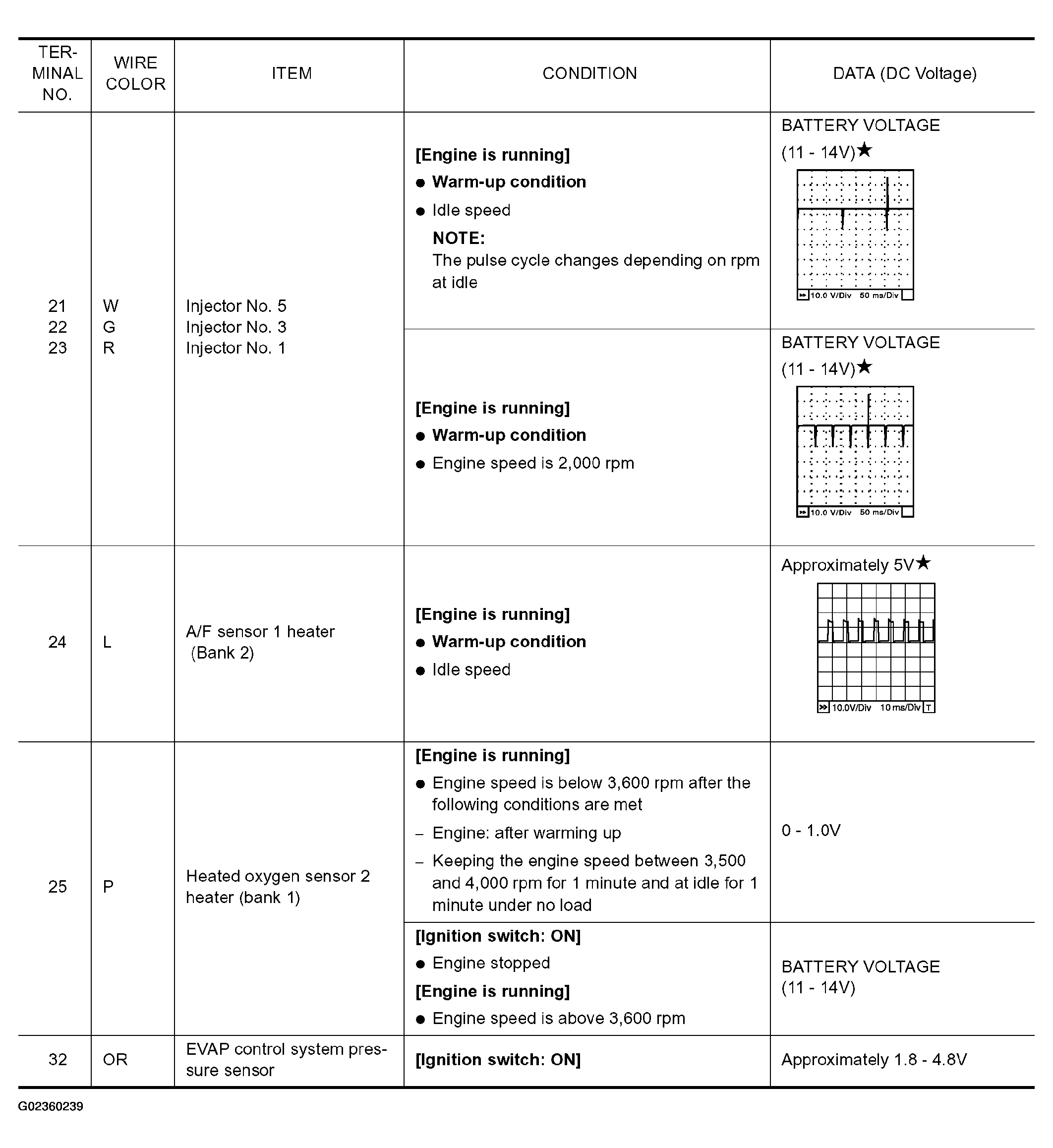

Fig 4: ECM Inspection Table (4 Of 9)

G02360239

Courtesy of NISSAN MOTOR CO., U.S.A.

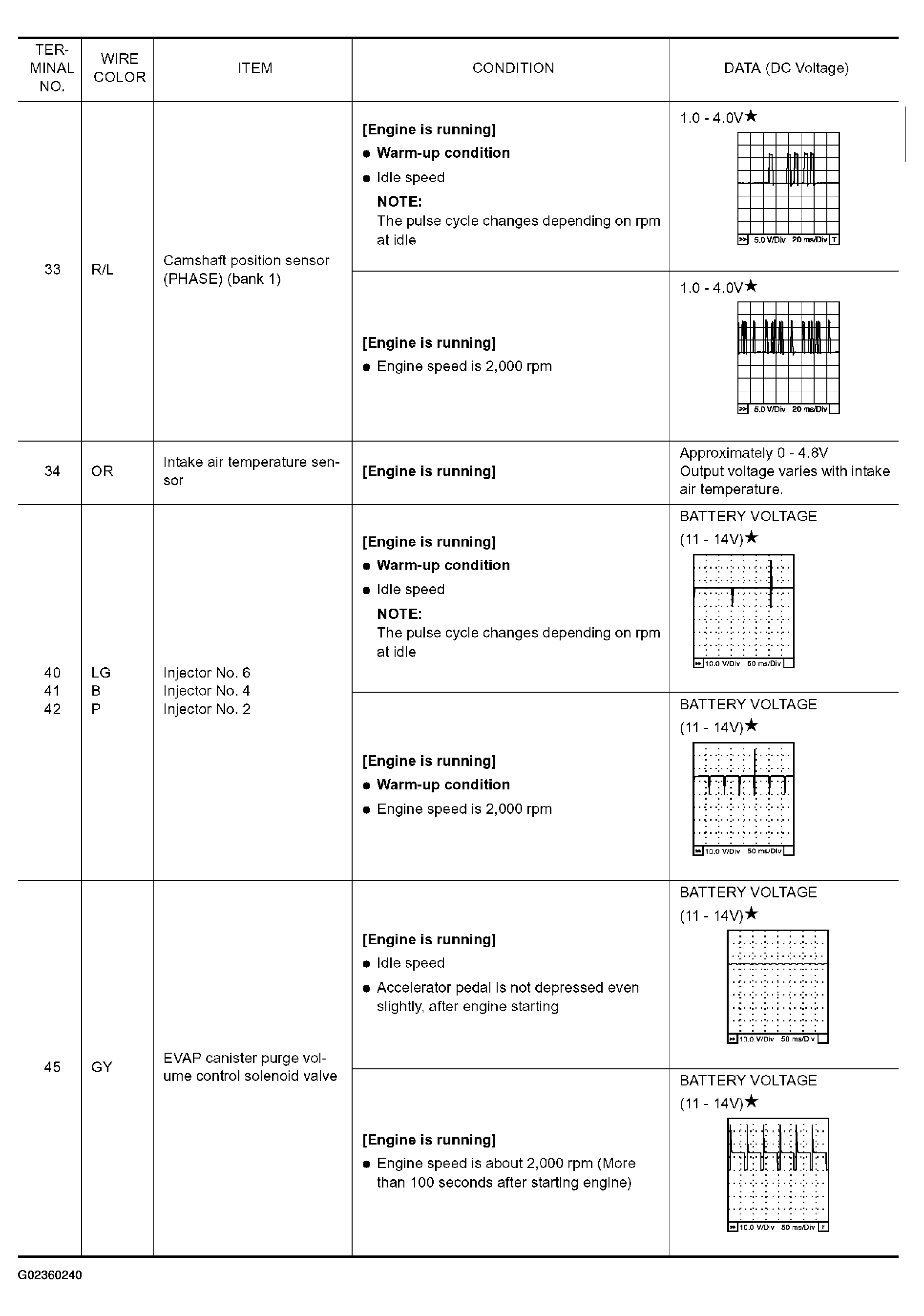

Fig 5: ECM Inspection Table (5 Of 9)

G02360240

Courtesy of NISSAN MOTOR CO., U.S.A.

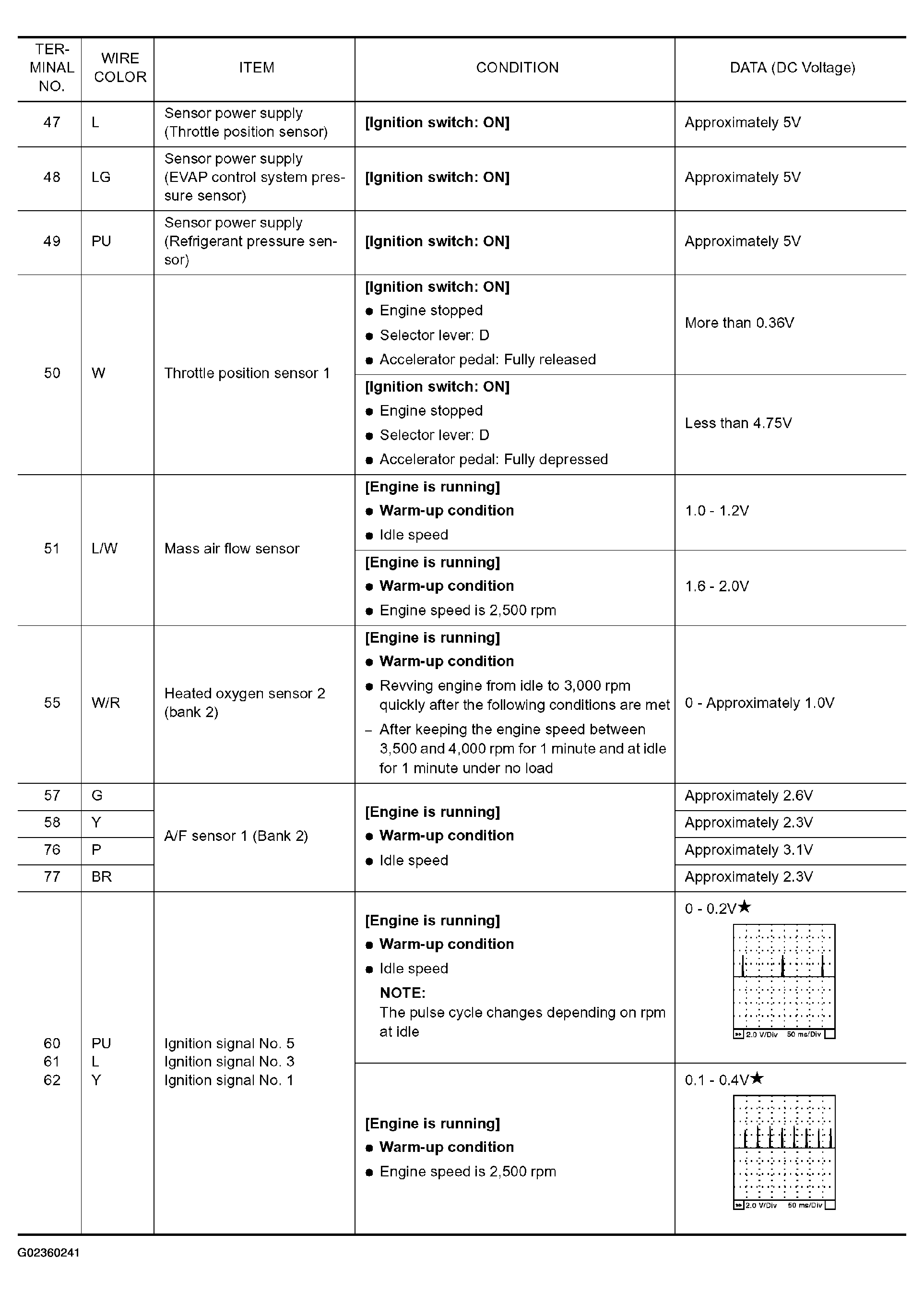

Fig 6: ECM Inspection Table (6 Of 9)

G02360241

Courtesy of NISSAN MOTOR CO., U.S.A.

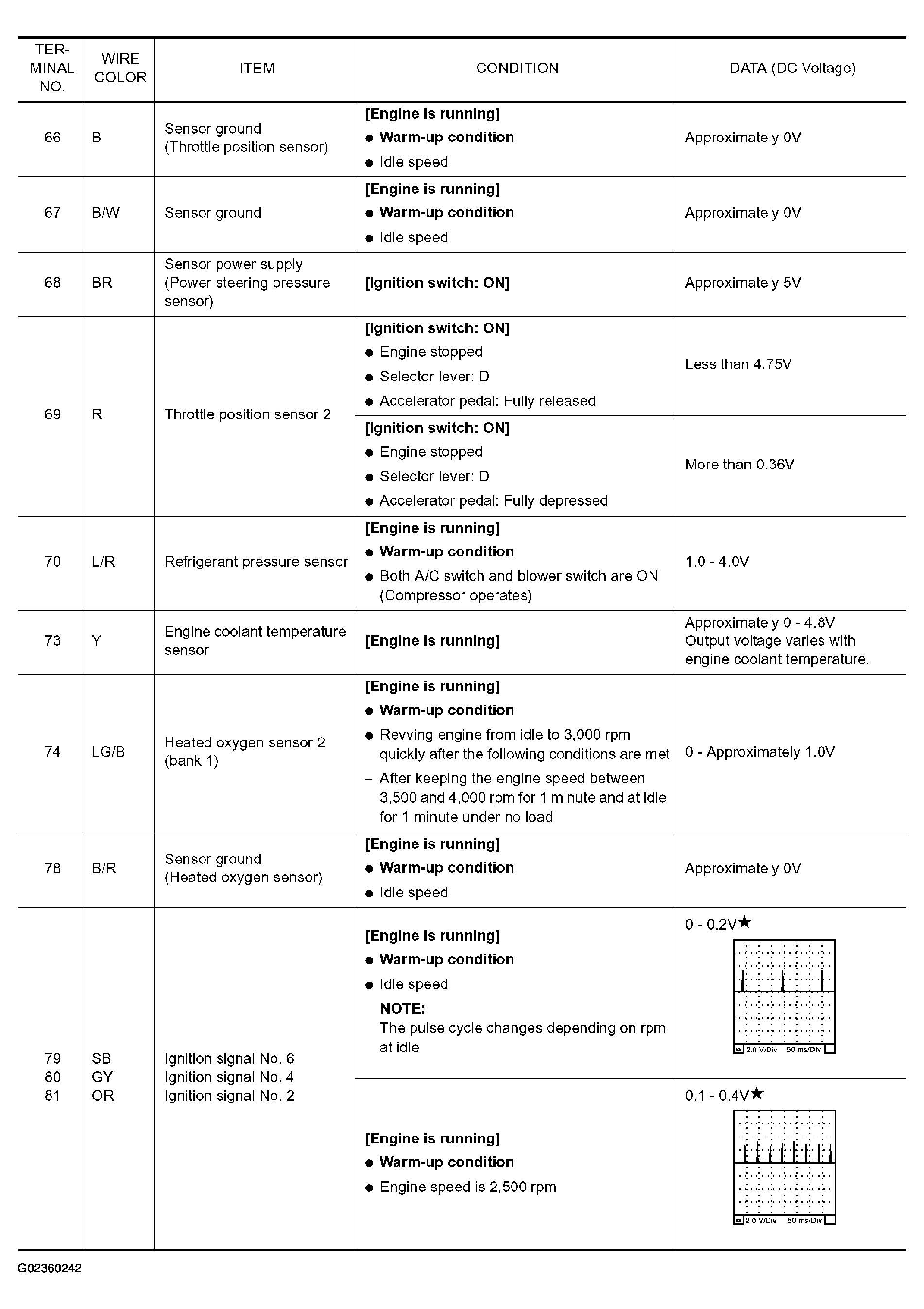

Fig 7: ECM Inspection Table (7 Of 9)

G02360242

Courtesy of NISSAN MOTOR CO., U.S.A.

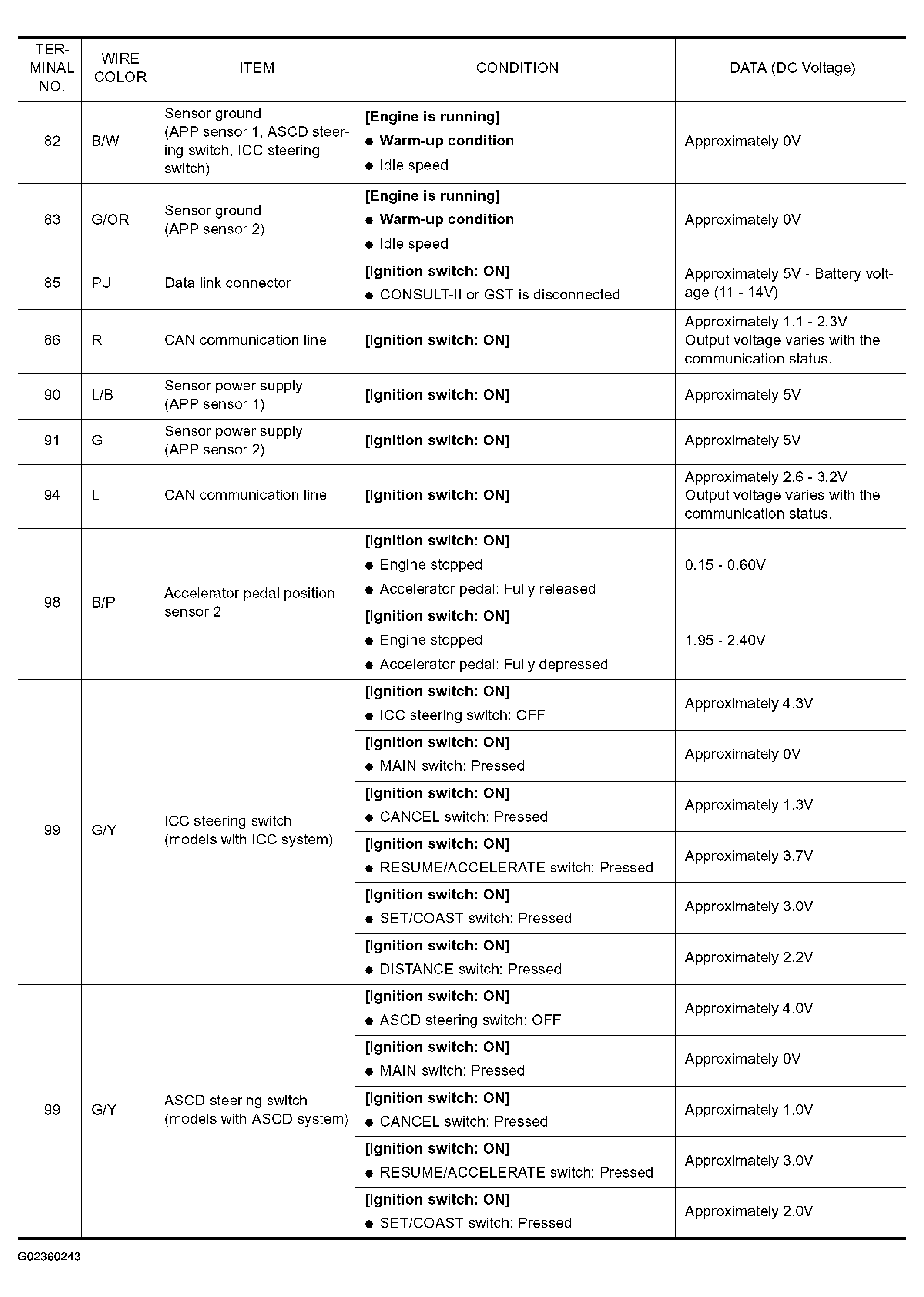

Fig 8: ECM Inspection Table (8 Of 9)

G02360243

Courtesy of NISSAN MOTOR CO., U.S.A.

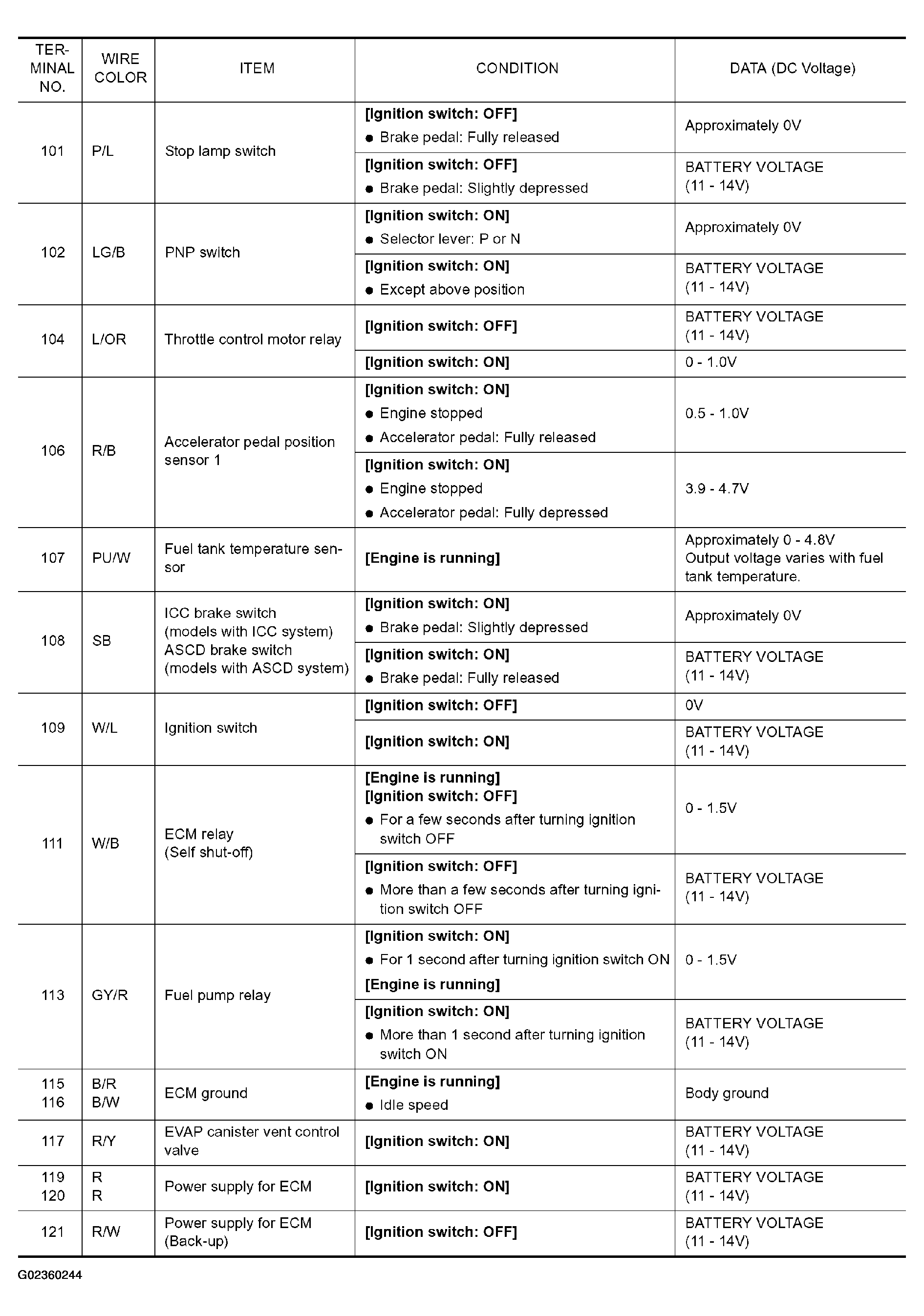

Fig 9: ECM Inspection Table (9 Of 9)

G02360244

Courtesy of NISSAN MOTOR CO., U.S.A.

*: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
