Snow Mode Switch: Wiring Diagram

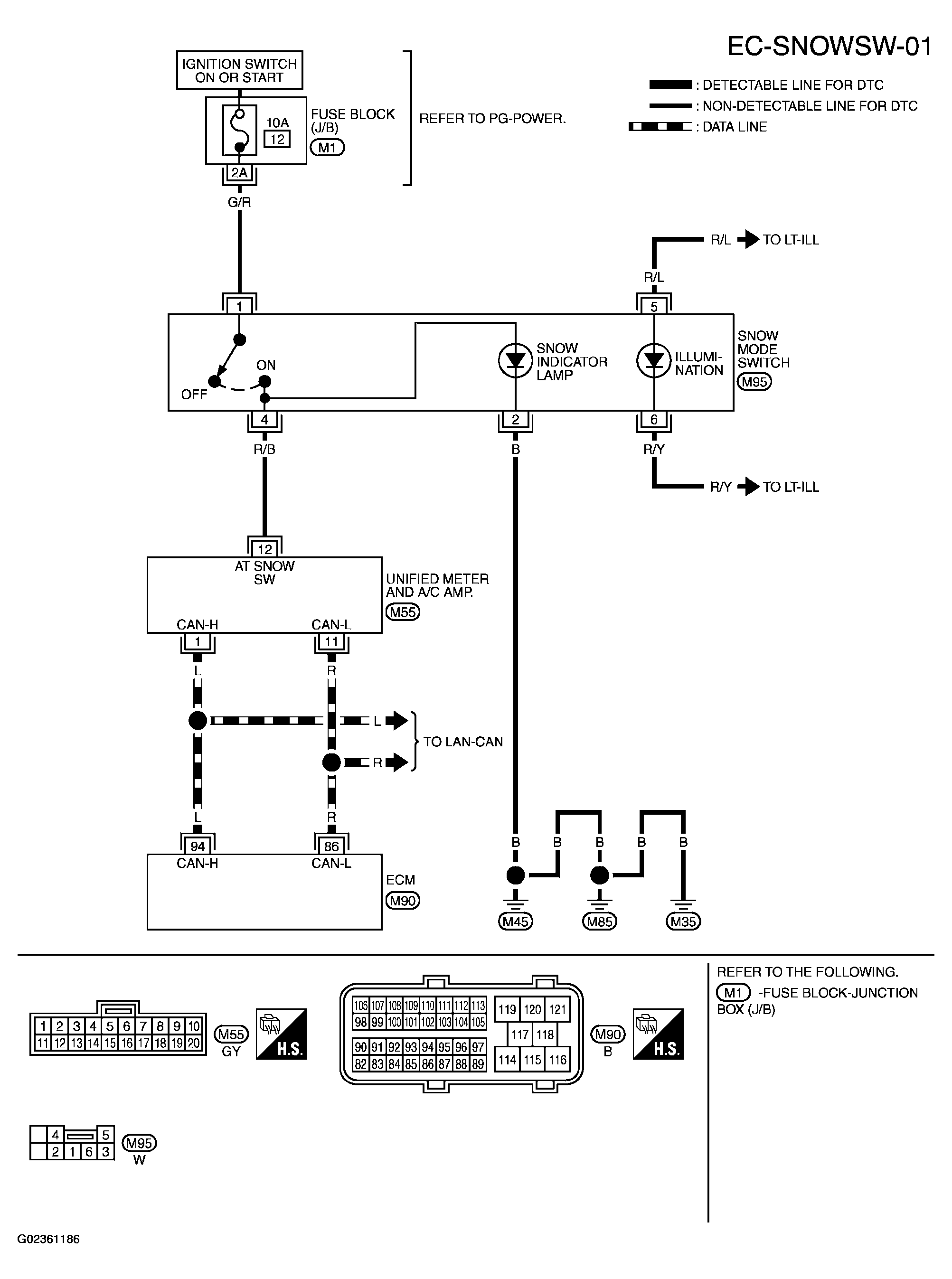

Fig 1: Wiring Diagram - EC-SNOESW-01

G02361186

Courtesy of NISSAN MOTOR CO., U.S.A.
