Infiniti
>>
2005
>>
FX35 AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System - VQ35DE
>>
Mil And Data Link Connector
>>
Wiring Diagram
Mil And Data Link Connector: Wiring Diagram

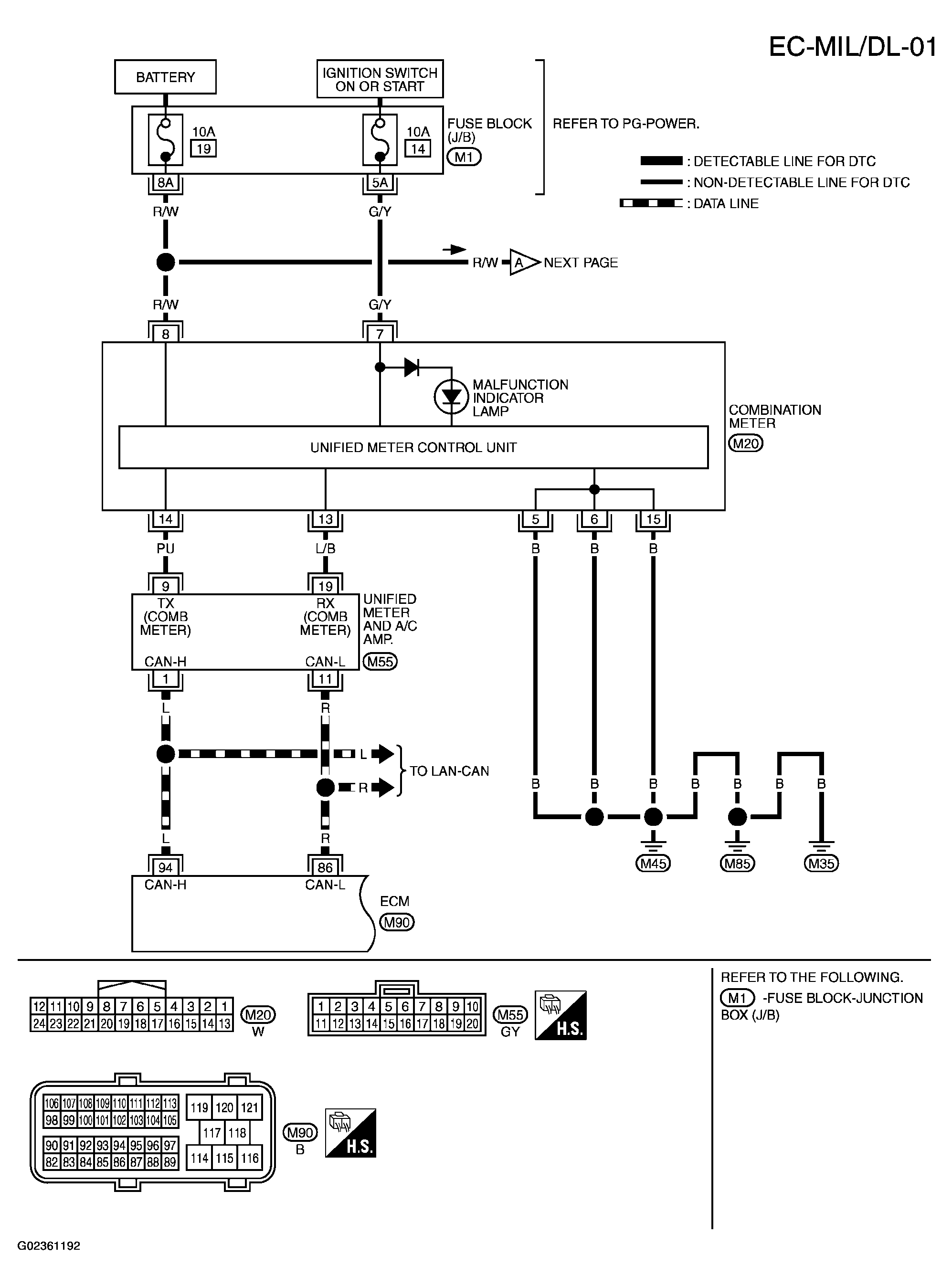

Fig 1: Wiring Diagram - EC-MIL/DL-01
Courtesy of NISSAN MOTOR CO., U.S.A.

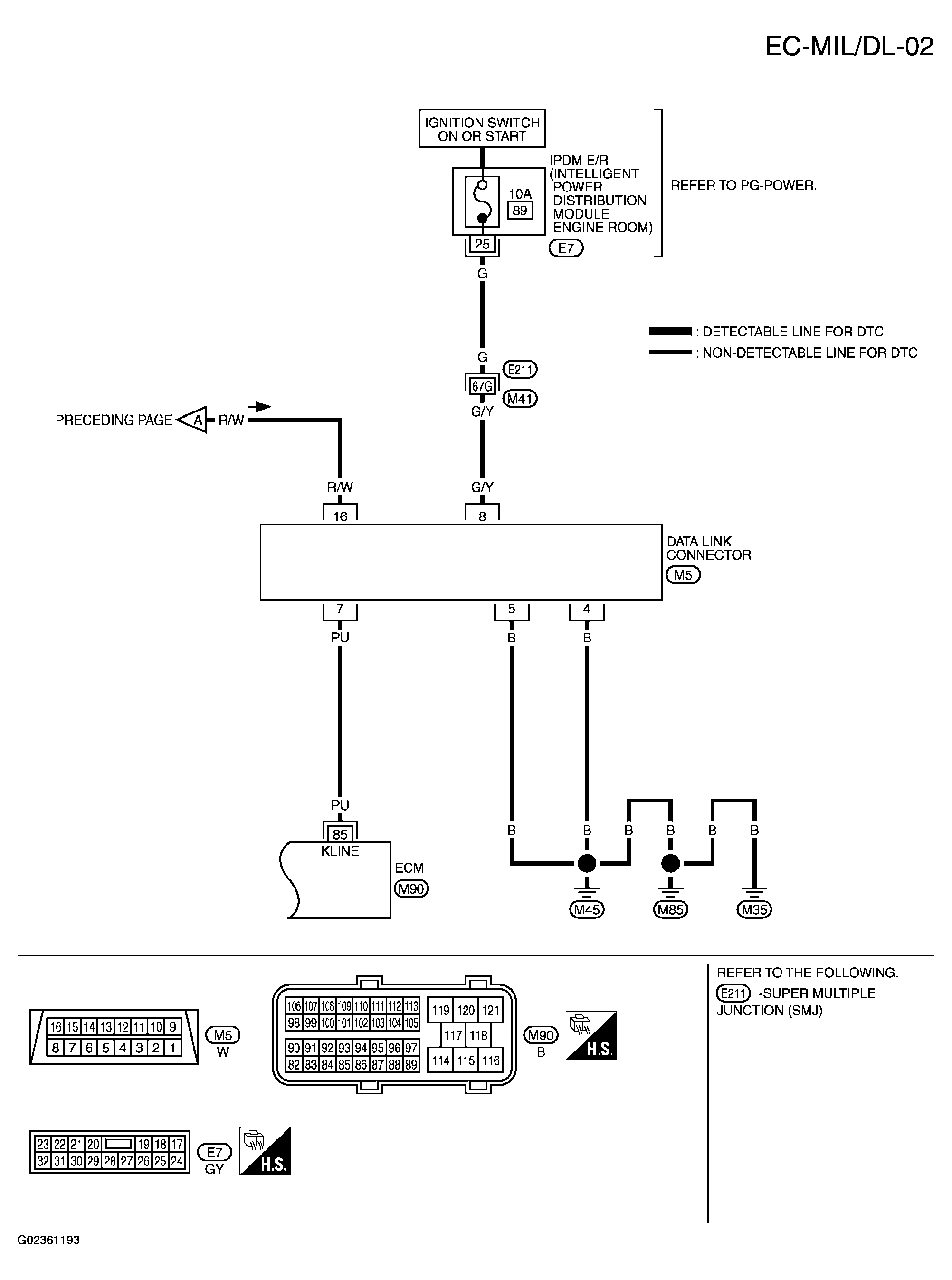

Fig 2: Wiring Diagram - EC-MIL/DL-02
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
