On Board Diagnosis Logic: Notes

The MIL will not light up for this diagnosis.

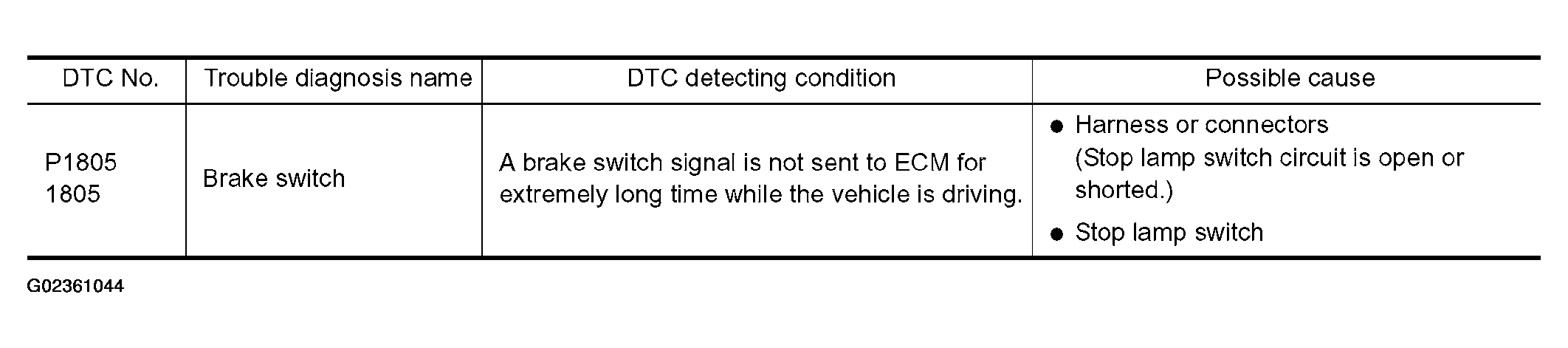

Fig 1: DTC Detecting Condition Chart

G02361044

Courtesy of NISSAN MOTOR CO., U.S.A.
