On Board Diagnosis Logic

NOTE:
  • If DTC P1568 is displayed with DTC U1000, U1001, first perform the trouble diagnosis for DTC U1000, U1001. Refer to DTC U1000, U1001 CAN COMMUNICATION LINE  .
  • If DTC P1568 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to DTC P0605 ECM
  • This self-diagnosis has the one trip detection logic.
  • The MIL will not light up for this self-diagnosis.

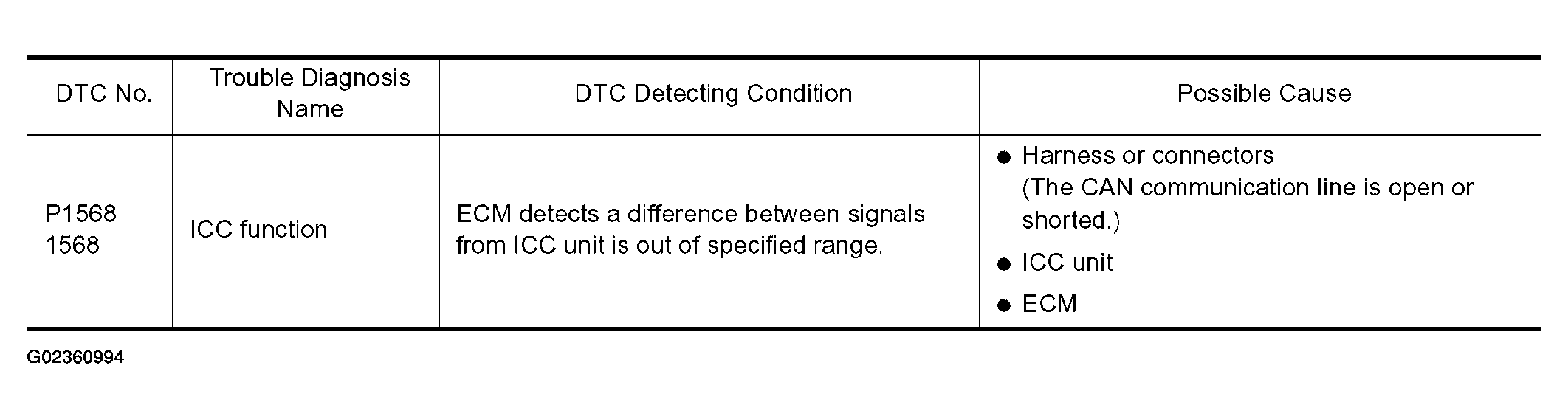

Fig 1: DTC Detecting Condition Chart
G02360994Courtesy of NISSAN MOTOR CO., U.S.A.
