On Board Diagnosis Logic

The MIL will not light up for this diagnosis.

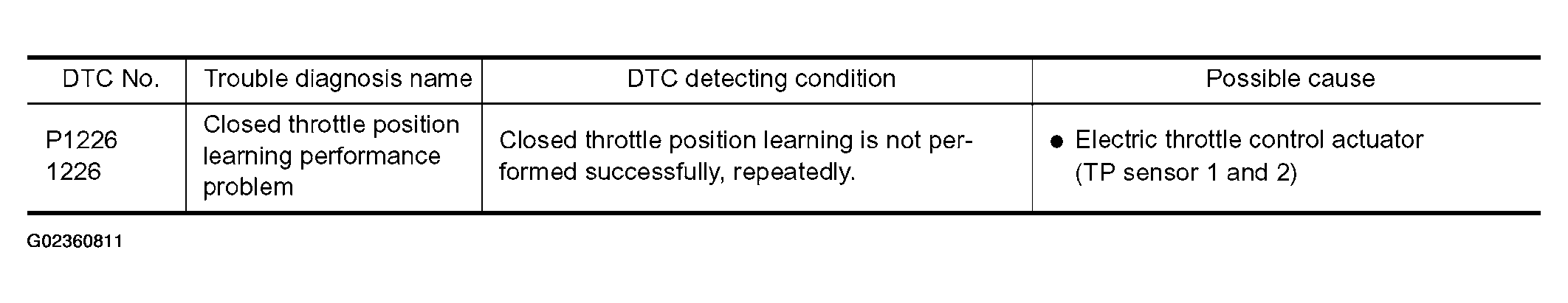

Fig 1: DTC P1226 Diagnosis Trouble Chart

G02360811

Courtesy of NISSAN MOTOR CO., U.S.A.
