Procedure B
- CHECK COOLING FAN POWER SUPPLY CIRCUIT
- Turn ignition switch OFF.
- Disconnect IPDM E/R harness connectors E6.
- Check voltage between IPDM E/R terminal 16 and ground with CONSULT-II or tester.
- Voltage: Battery voltage
OK or NG
- OK: GO TO 3 .
- NG: GO TO 2.
- DETECT MALFUNCTIONING PART
Check the following.
- 40A fusible link
- Harness for open or short between IPDM E/R and battery
- : Repair open circuit or short to ground or short to power in harness or connectors.
- CHECK COOLING FAN GROUND CIRCUIT
- Turn ignition switch OFF.
- Check harness continuity between IPDM E/R terminal 15, 38, 60 and ground. Refer to WIRING DIAGRAM
.
- Continuity should exist.
- Also check harness for short to power.
OK or NG
- OK: GO TO 4.
- NG: Repair open circuit or short to power in harness or connectors.
- CHECK COOLING FAN MOTOR-1 CIRCUIT-I

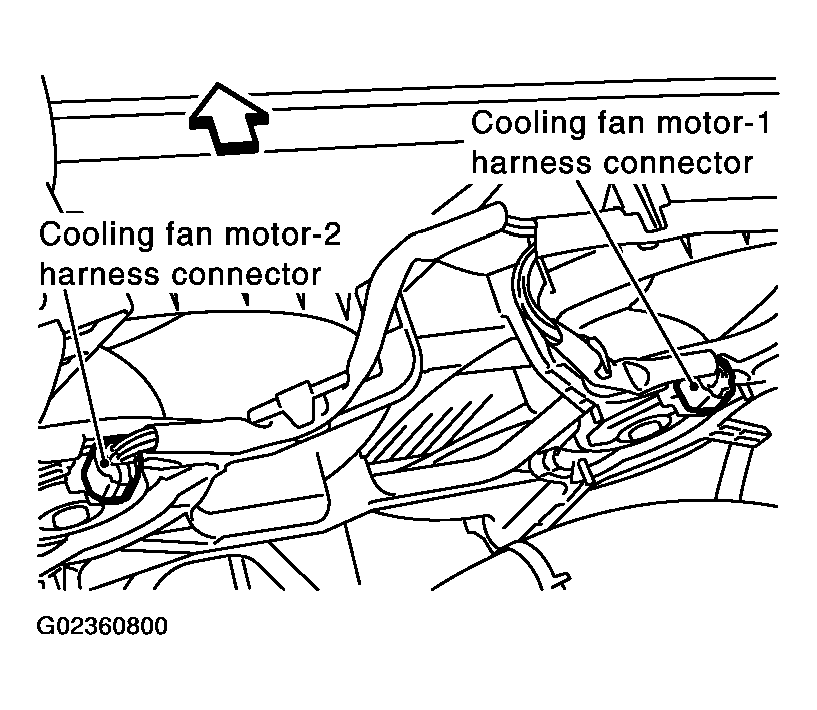

- Disconnect cooling fan motor-1 harness connector.
- Check voltage between cooling fan motor-1 terminals 1, 2 and ground with CONSULT-II or tester.
- Voltage: Battery voltage
OK or NG
- OK: GO TO 6 .
- NG: GO TO 5.
- DETECT MALFUNCTIONING PART
Check the following.
- 40A fusible link
- Harness connectors E29, E121
- Harness for open or short between cooling fan motor-1 and battery
- : Repair open circuit or short to ground or short to power in harness or connectors.
- CHECK COOLING FAN MOTOR-1 CIRCUIT-II
- Check harness continuity between cooling fan motor-1 terminal 3 and IPDM E/R terminal 13, cooling fan motor-1 terminal 4 and IPDM E/R terminals 10, 12.
Refer to WIRING DIAGRAM .
- Continuity should exist.
- Also check harness for short to ground and short to power.
OK or NG
- OK: GO TO 8 .
- NG: GO TO 7.
- Check harness continuity between cooling fan motor-1 terminal 3 and IPDM E/R terminal 13, cooling fan motor-1 terminal 4 and IPDM E/R terminals 10, 12.
- DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors E29, E121
- Harness for open or short between cooling fan motor-1 and IPDM E/R
- : Repair open circuit or short to ground or short to power in harness or connectors.
- CHECK COOLING FAN MOTOR-2 CIRCUIT-I
- Disconnect cooling fan motor-2 harness connector.
- Check harness continuity between cooling fan motor-2 terminals 3, 4 and ground.
Refer to WIRING DIAGRAM .
- Continuity should exist.
- Also check harness short to power.
OK or NG
- OK: GO TO 10 .
- NG: GO TO 9.
- DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors E29, E121
- Harness for open or short between cooling fan motor-2 and ground
- : Repair open circuit or short to power in harness or connectors.
- CHECK COOLING FAN MOTOR-2 CIRCUIT-II
- Check harness continuity between cooling fan motor-2 terminal 1 and IPDM E/R terminal 8, cooling fan motor-2 terminal 2 and IPDM E/R terminals 11, 14.
Refer to WIRING DIAGRAM .
- Continuity should exist.
- Also check harness for short to ground and short to power.
OK or NG
- OK: GO TO 12 .
- NG: GO TO 11.
- Check harness continuity between cooling fan motor-2 terminal 1 and IPDM E/R terminal 8, cooling fan motor-2 terminal 2 and IPDM E/R terminals 11, 14.
- DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors E29, E121
- Harness for open or short between cooling fan motor-2 and IPDM E/R
- : Repair open circuit or short to ground or short to power in harness or connectors.
- CHECK COOLING FAN MOTORS
Refer to "COMPONENT INSPECTION ".
OK or NG
- OK: GO TO 13.
- NG: Replace cooling fan motors.
- CHECK INTERMITTENT INCIDENT
Perform "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".
OK or NG
- OK: Replace IPDM E/R. Refer to "IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) ".
- NG: Repair or replace harness or connector.
