With Consult-II

  1. Start engine (TCS switch or VDC switch OFF).
  2. Read "VHCL SPEED SE" in "DATA MONITOR" mode with CONSULT-II. The vehicle speed on CONSULT-II should exceed 10 km/h (6 MPH) when rotating wheels with suitable gear position.

    If NG, go to "DIAGNOSTIC PROCEDURE  ".

    If OK, go to following step.

  3. Select "DATA MONITOR" mode with CONSULT-II.
  4. Warm engine up to normal operating temperature.
  5. Maintain the following conditions for at least 60 consecutive seconds.
    CONDITIONS

    ENG SPEED 1,700 - 6,000 rpm
    COOLAN TEMP/S More than 70°C (158°F)
    B/FUEL SCHDL 4.9 - 31.8 msec
    Selector lever Except P or N position
    PW/ST SIGNAL OFF
  6. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE  ".

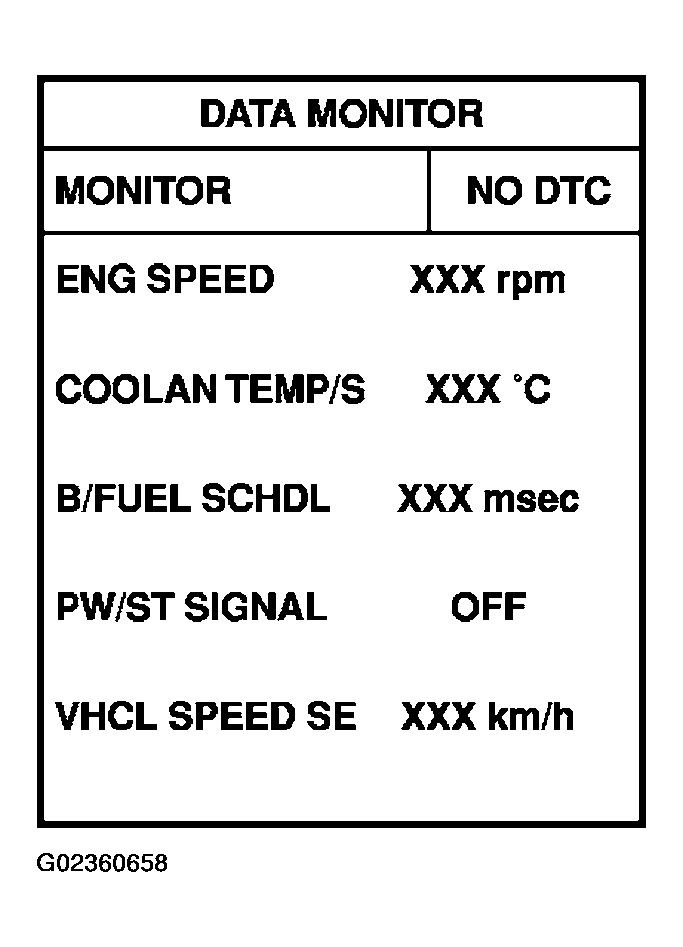

    Fig 1: Data Monitor Scan Tool Display
    G02360658Courtesy of NISSAN MOTOR CO., U.S.A.
