Oil Filter Bracket (AWD): Components

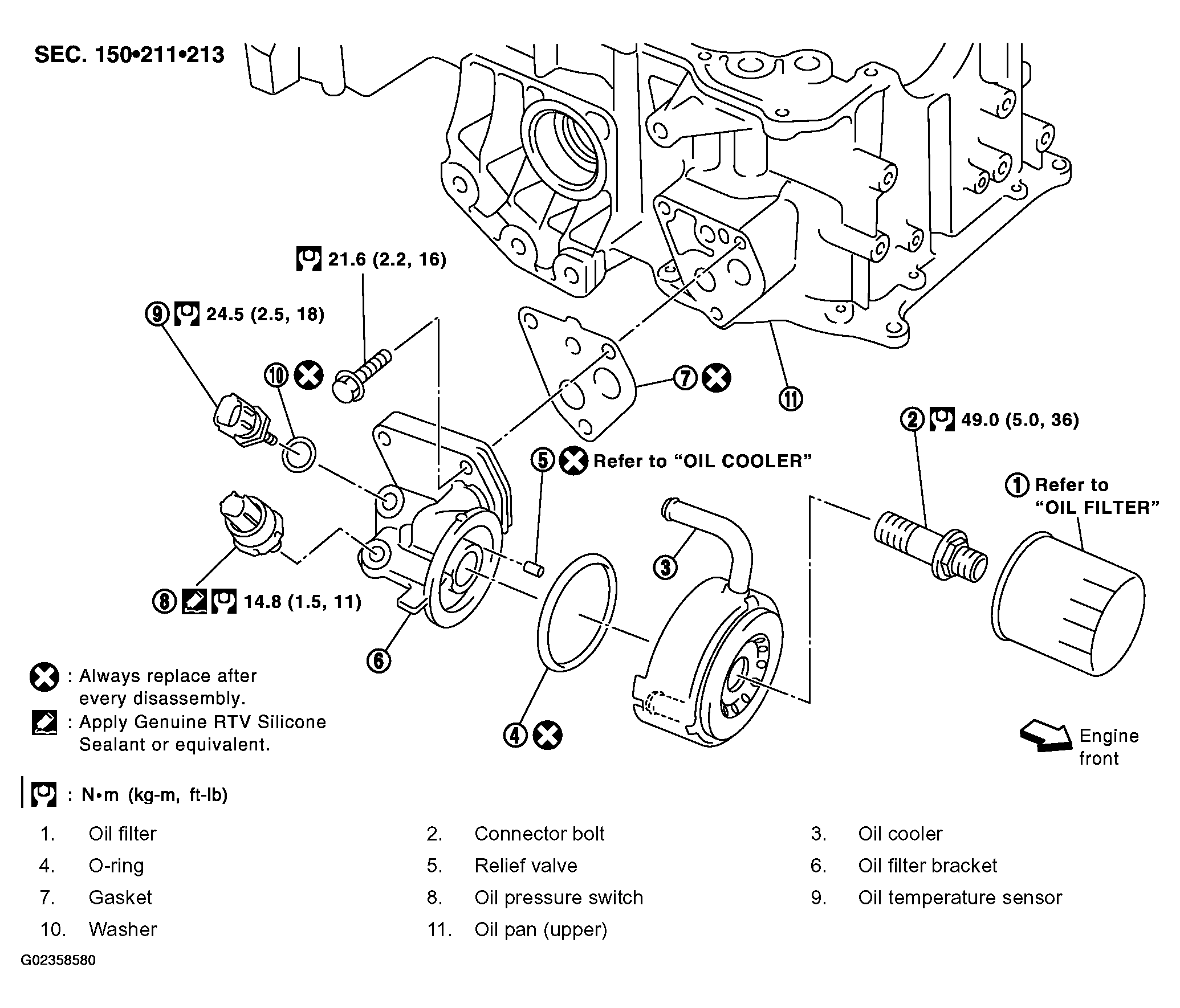

Fig 1: Oil Filter Bracket (AWD) Replacement Components With Torque Specifications

G02358580

Courtesy of NISSAN MOTOR CO., U.S.A.
