Lubrication Circuit
Lubrication Circuit

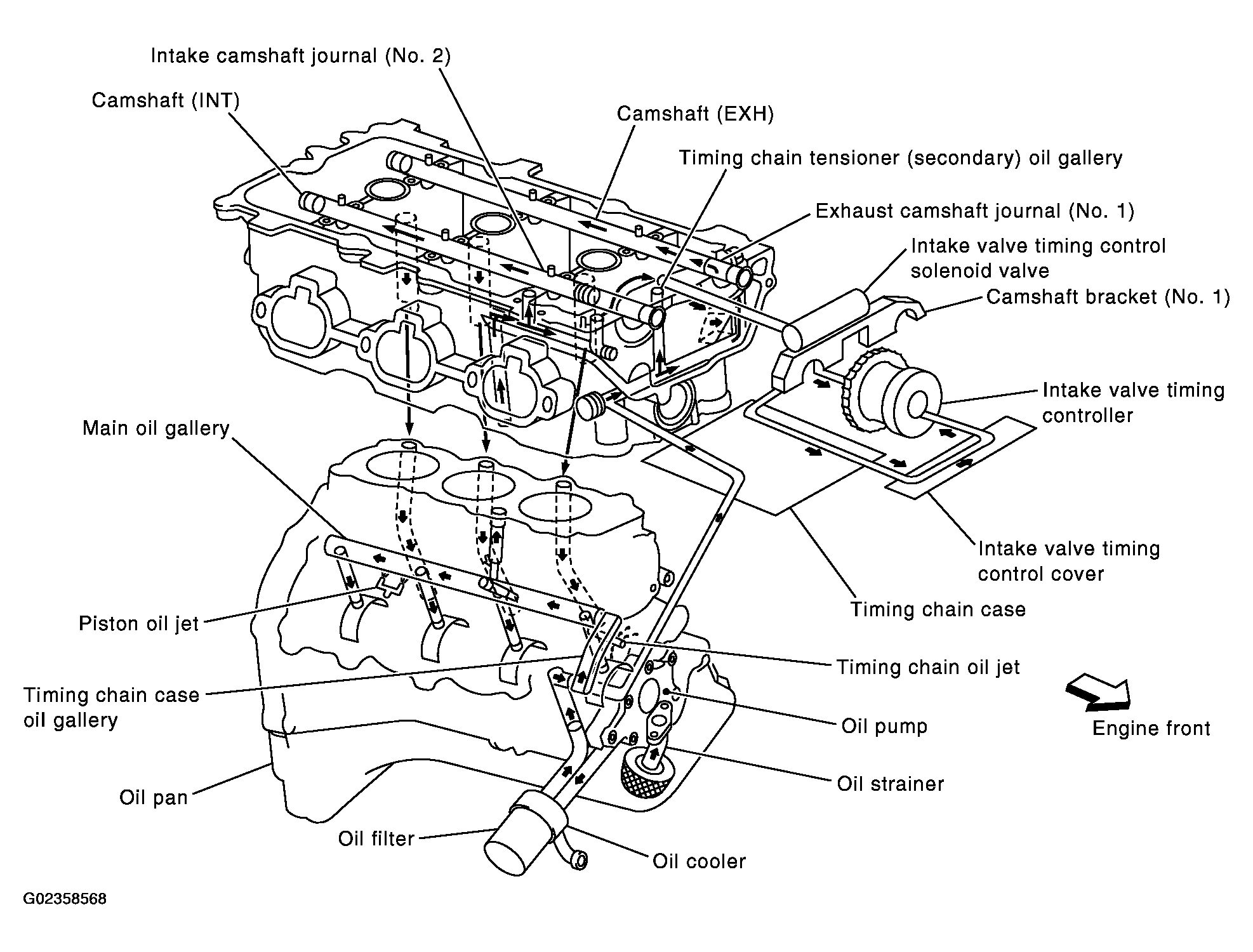

Fig 1: Identifying Lubrication Circuit Diagram (Lubrication System)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
