Service Data And Specifications (SDS): Starter

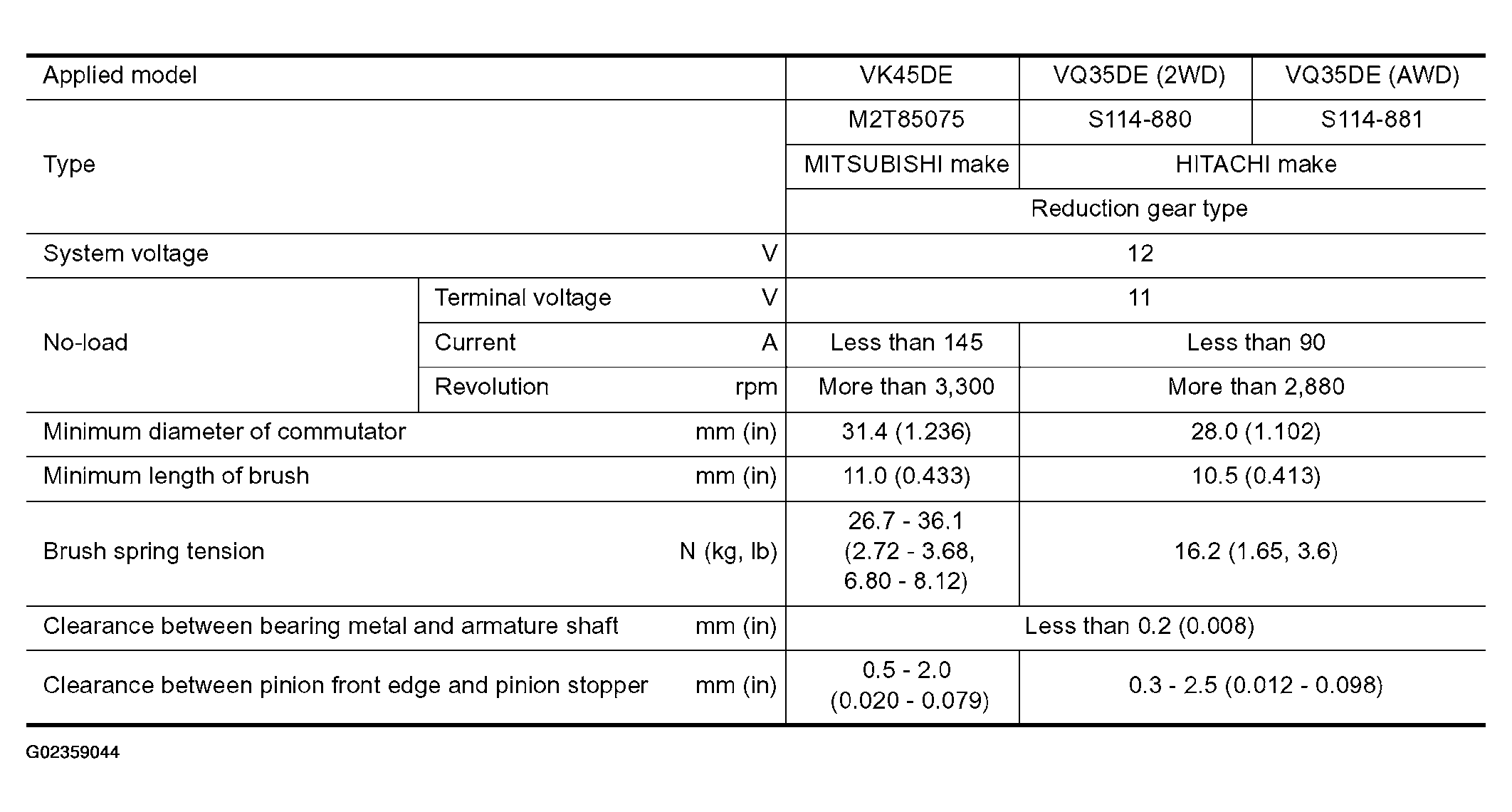

Fig 1: Starter Specifications Table

G02359044

Courtesy of NISSAN MOTOR CO., U.S.A.
