VQ35DE Engine Models

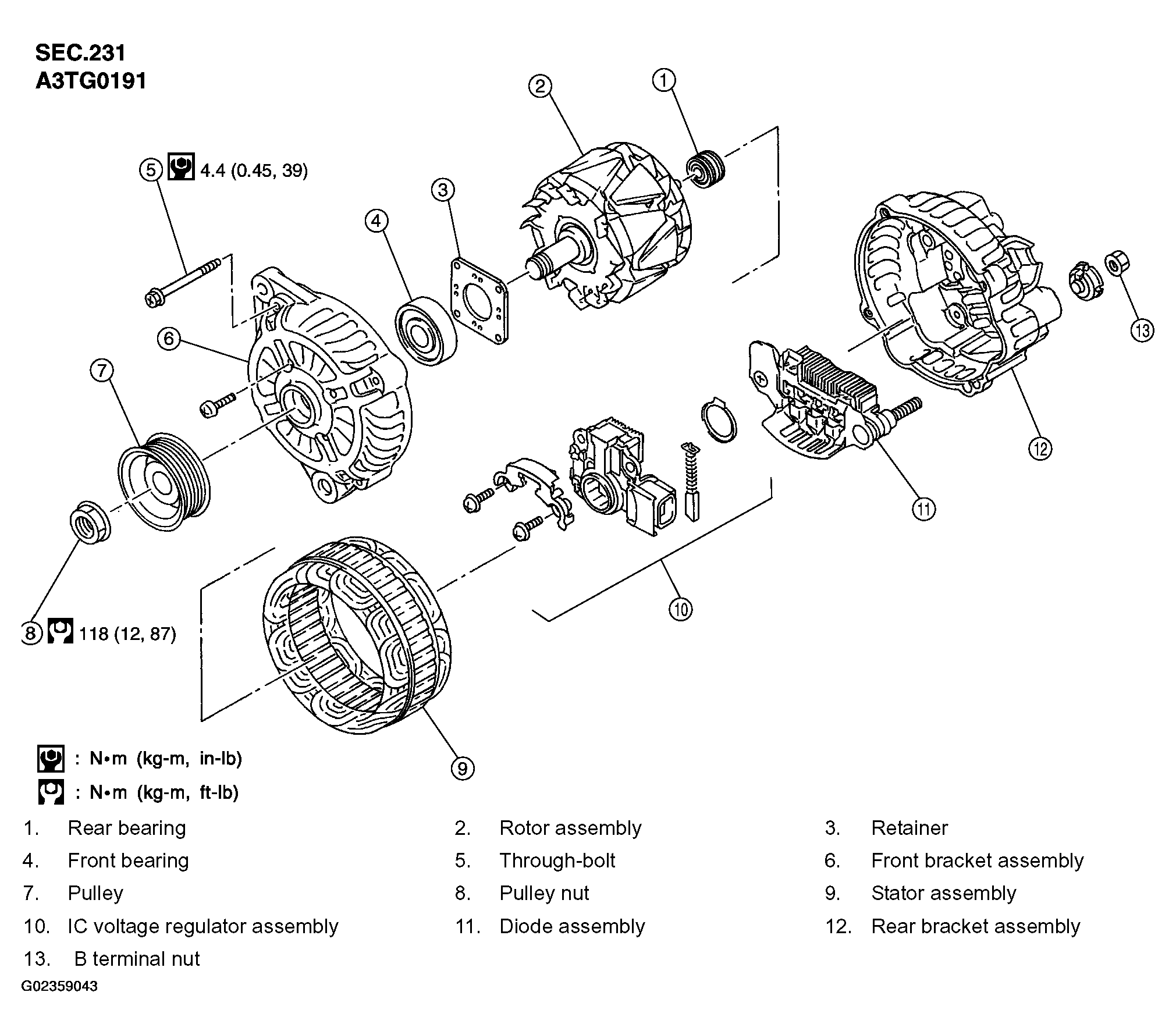

Fig 1: Exploded View Of Alternator Components With Torque Specifications (VQ35DE Engine Models)

G02359043

Courtesy of NISSAN MOTOR CO., U.S.A.
