Terminal and Reference Value for Front Power Window Switch (Passenger Side) / With Front Power Window Anti-pinch System

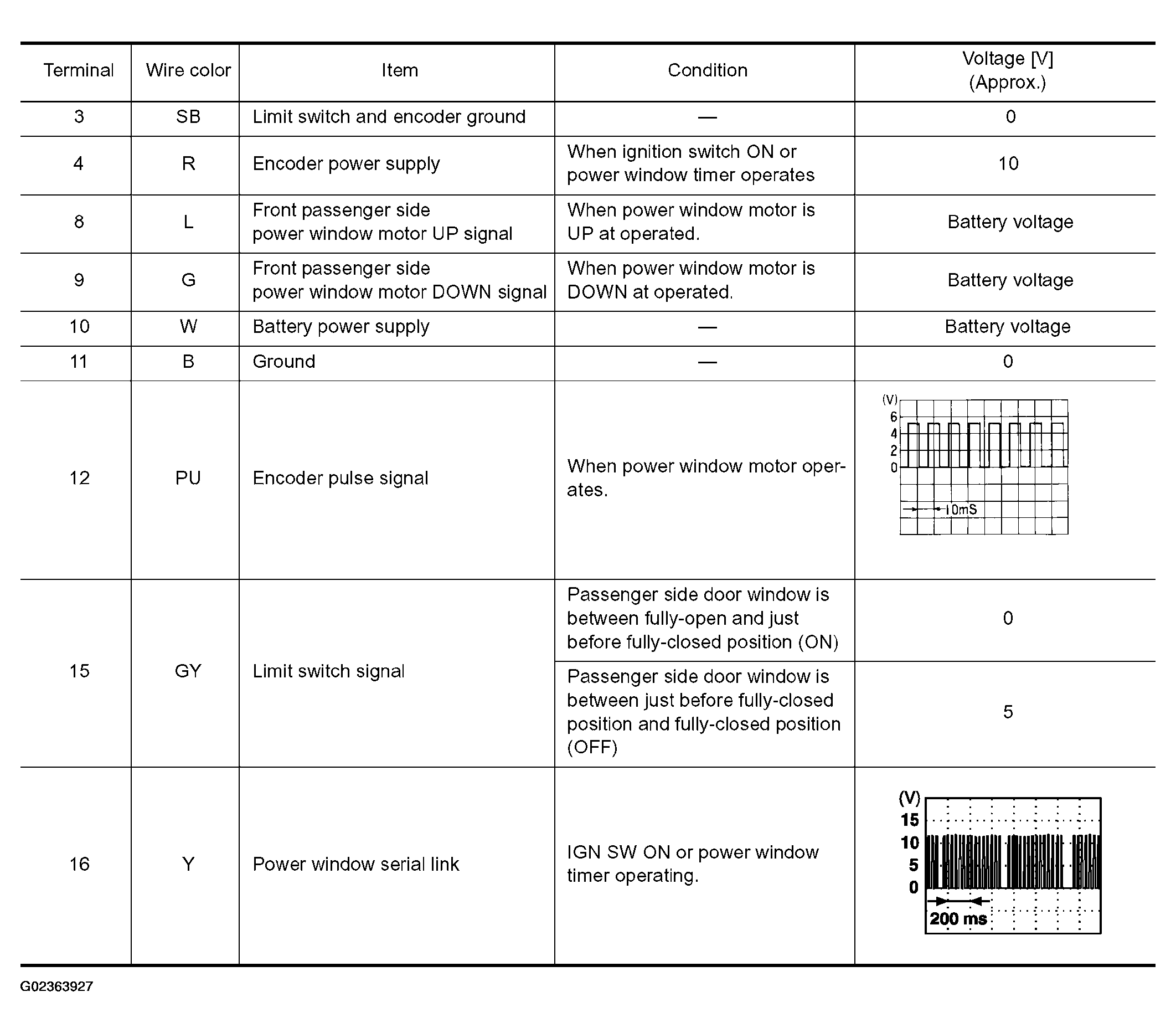

Fig 1: Front Power Window Switch (Passenger Side) / With Front Power Window Anti-pinch System Terminal And Reference Value Chart
G02363927Courtesy of NISSAN MOTOR CO., U.S.A.
