Rear Power Vent Window Motor LH Circuit Check

1. Turn ignition switch OFF.
2. Disconnect rear power vent window motor LH.
3. Turn ignition switch ON.
4. Check voltage between rear power vent window motor LH connector B52 terminal 1, 2 and ground.

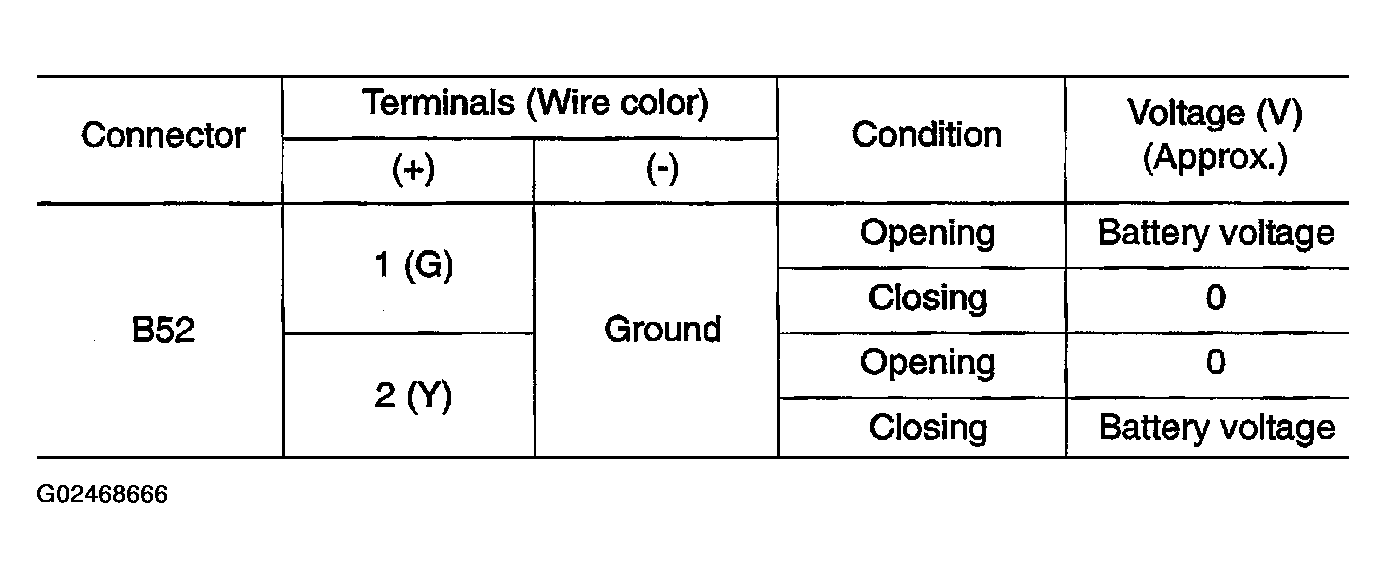

   Fig 1: Connector Terminal Specifications

   Courtesy of NISSAN MOTOR CO., U.S.A.
   Fig 2: Checking Voltage Between Rear Power Vent Window Motor And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: Replace rear power vent window motor LH.
2. NG: Repair or replace harness.
